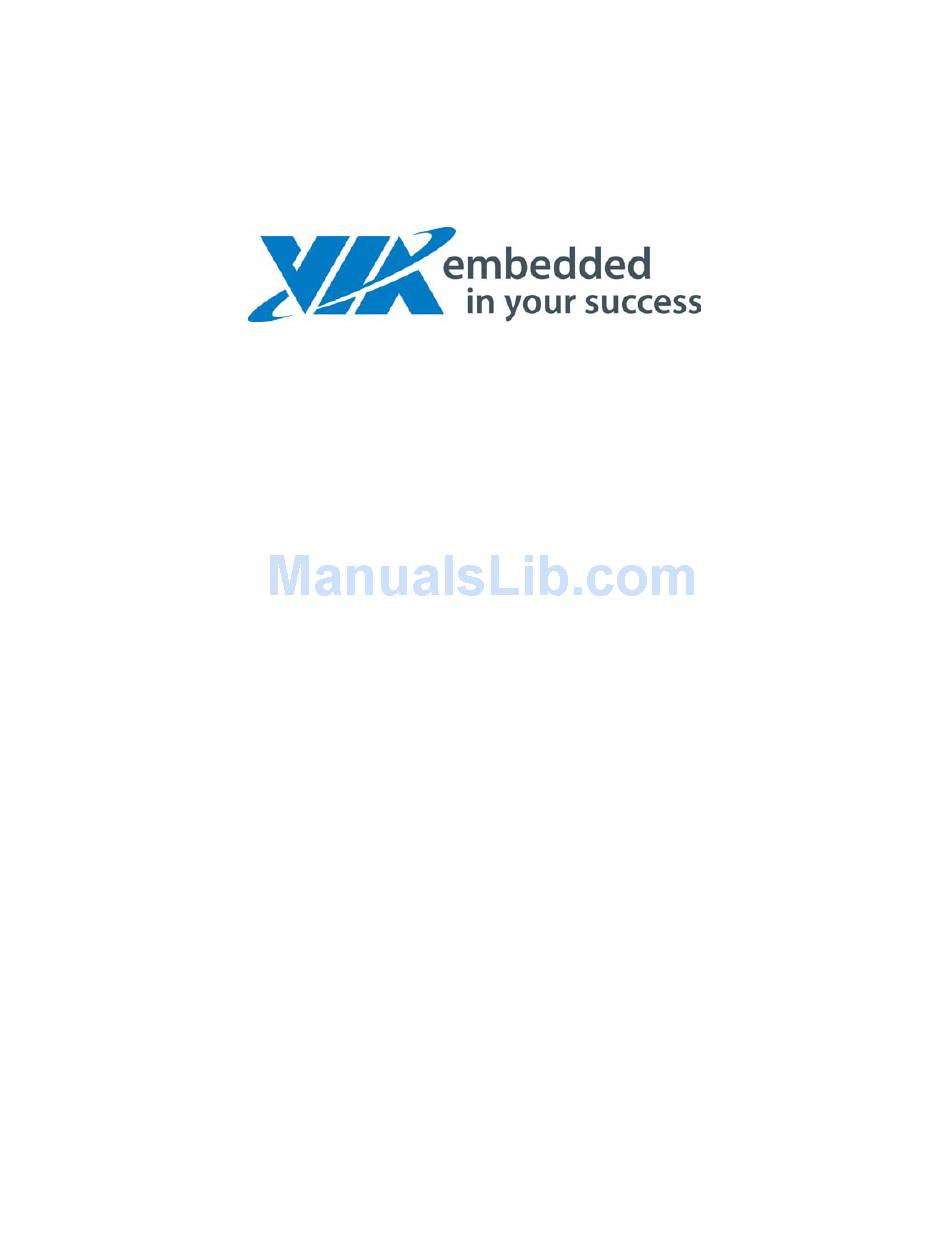

- Page 1 Operating Guide EPIA-PE Mini-ITX Mainboard January 15, 2007 Version 1.01...
-
Page 2: Table Of Contents
VIA EPIA-PE Board Dimensions..............................7 VIA EPIA-PE Height Distribution ..............................8 Power Consumption ..................................9 VIA EPIA-PE 10000 ..................................9 Power Specifications ..................................11 VIA EPIA-PE Microsoft and Linux Driver Support ......................... 12 ..............................12 ICROSOFT RIVER UPPORT ................................12... -
Page 3: Via Epia-Pe Overview
EPIA-PE Operating Guide VIA EPIA-PE Overview The VIA EPIA-PE Mini-ITX Mainboard is an ultra compact native x86 platform optimized for today's demanding embedded and productivity applications. The mainboard is based on the VIA C3 EBGA processor featuring an embedded hardware MPEG-2 video decoding accelerator. -
Page 4: Via Epia-Pe Layout
EPIA-PE Operating Guide VIA EPIA-PE Layout January 15, 2007 - 2 - Version 1.01... -
Page 5: Via Epia-Pe Specifications
EPIA-PE Operating Guide VIA EPIA-PE Specifications Model Name - EPIA PE10000 Processor - VIA C3 EBGA 1.0GHz Processor Chipset - VIA CLE266 North Bridge - VT8235M South Bridge System Memory - 1 DDR266 DIMM socket - Up to 1GB Memory Size... -
Page 6: Via Epia-Pe Processor Skus
EPIA-PE Operating Guide VIA EPIA-PE Processor SKUs The VIA EPIA-PE is available with the following CPU options: • 1.0 GHz VIA C3 Processor January 15, 2007 - 4 - Version 1.01... -
Page 7: Via C3 Processor Overview
EPIA-PE Operating Guide VIA C3 Processor Overview The VIA CLE266 is designed to enable high quality digital video streaming and DVD playback in a new generation of fanless, small form factor PCs and IA devices. The VIA CLE266 features the embedded VIA UniChrome™ AGP MPEG-2 video decoding acceleration, DDR 266MHz support, motion compensation and dual-display support to ensure a rich overall entertainment experience. -
Page 8: Via Epia-Pe I/O Back Panel Layout
EPIA-PE Operating Guide VIA EPIA-PE I/O Back Panel Layout The EPIA-PE’s ultra compact 17cm x 17cm, integrated design supports all the standard legacy x86 connectivity options as well as PS2 Mouse port, PS2 Keyboard port, VGA port, COM port, two RJ45 LAN ports, four USB 2.0 ports and three audio jacks. -
Page 9: Via Epia-Pe Board Dimensions
EPIA-PE Operating Guide VIA EPIA-PE Board Dimensions January 15, 2007 - 7 - Version 1.01... -
Page 10: Via Epia-Pe Height Distribution
EPIA-PE Operating Guide VIA EPIA-PE Height Distribution January 15, 2007 - 8 - Version 1.01... -
Page 11: Power Consumption
EPIA-PE Operating Guide Power Consumption Power consumption tests were carried out comparing the VIA EPIA-PE running with VIA C3 1.0 GHz EBGA processor. The following tables are a comprehensive breakdown of the EPIA- PE platform’s voltage, amp and wattage values while running common system applications. - Page 12 EPIA-PE Operating Guide E. Idle Measured Voltage Measured Amp. Watts Main Board +3.3V 3.300 1.752 5.782 Main Board +5V 5.120 1.593 8.156 Main Board 5VSB 5.086 0.033 0.168 Main Board +12V 11.922 0.207 2.468 Main Board Power Consumption 16.573 F. Run C.C. Winstone 2004 Measured Voltage Measured Amp.
-
Page 13: Power Specifications
The EPIA-PE utilizes an industry standard 20-pin ATX main connector to the power supply. Due to the EPIA-PE platform’s ultra low power requirements a 90 – 120 Watt ATX power supply is ample for even the heaviest of multimedia system applications. -
Page 14: Via Epia-Pe Microsoft And Linux Driver Support
VIA EPIA-PE Microsoft and Linux Driver Support Microsoft Driver Support VIA EPIA-PE offers full support for the complete range of Microsoft operating systems. For standard operating systems, Windows 2000/XP latest drivers downloads can be found in the VEPD website at www.viaembedded.com. -
Page 15: Contact
EPIA-PE Operating Guide Contact For more information on the VIA EPIA-PE Mini-ITX Mainboard contact your sales representative or visit our website at www.viaembedded.com Taiwan 440 Mission Court, Suite 220 1F, No. 531, Chung Cheng Road Fremont, CA 94539 Hsin Tien, Taipei 231...
