Summary of Contents for VIA Technologies EPIA-PX
- Page 1 Operating Guide EPIA-PX Pico-ITX Mainboard...
-
Page 2: Table Of Contents
VIA EPIA-PX Layout .................................... 2 VIA EPIA-PX Specifications................................3 VIA EPIA-PX Processor SKU ................................4 VIA VX700 All-in-One System Processor Overview ........................5 VIA EPIA-PX Board Dimensions and Height Distribution ....................... 6 Power Consumption................................... 8 VIA EPIA-PX 1.0 GH ............................8... -
Page 3: Via Epia-Px Overview

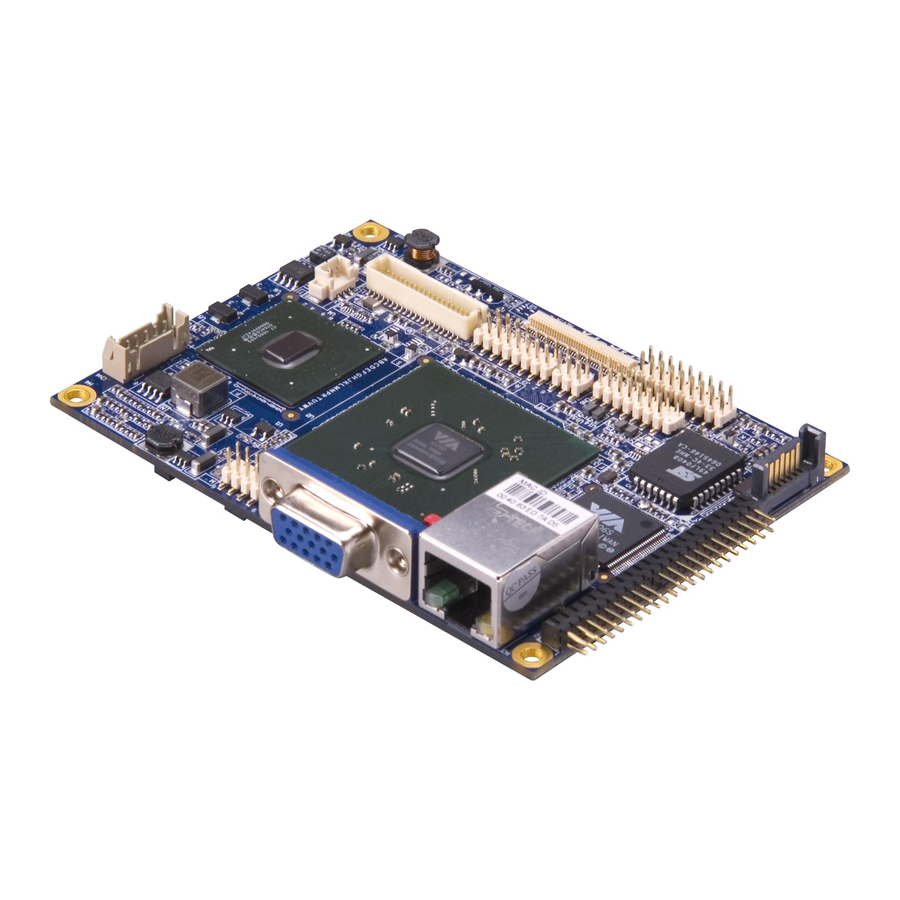

EPIA-PX Operating Guide VIA EPIA-PX Overview The VIA EPIA-PX Pico-ITX Mainboard is an ultra compact native x86 platform optimized for today's demanding embedded and productivity applications. The mainboard is based on the VIA VX700 advanced all-in-one system processor featuring an embedded hardware MPEG-2, MPEG-4 and WMV9 video decoding accelerator. -
Page 4: Via Epia-Px Layout
EPIA-PX Operating Guide VIA EPIA-PX Layout November 25, 2010 - 2 - Version 1.13... -
Page 5: Via Epia-Px Specifications
EPIA-PX Operating Guide VIA EPIA-PX Specifications Model Name - EPIA-PX Processor options - VIA C7 1.0GHz NanoBGA2 processor - VIA Eden ULV 500 MHz NanoBGA2 processor Chipset - VIA VX700 advanced all-in-one system processor System Memory - 1 DDRII 533 SODIMM socket... -
Page 6: Via Epia-Px Processor Sku
EPIA-PX Operating Guide VIA EPIA-PX Processor SKU The VIA EPIA-PX is available with the following CPU options: 1.0 GHz VIA C7® NanoBGA2 processor 500 MHz VIA Eden™ ULV NanoBGA2 processor November 25, 2010 - 4 - Version 1.13... -
Page 7: Via Vx700 All-In-One System Processor Overview
EPIA-PX Operating Guide VIA VX700 All-in-One System Processor Overview The VIA VX700 All-in-One System Processor is designed to enable high quality digital video streaming and DVD playback in a new generation of fanless, small form factor PCs and IA devices. The... -
Page 8: Via Epia-Px Board Dimensions And Height Distribution
EPIA-PX Operating Guide VIA EPIA-PX Board Dimensions and Height Distribution Note: The mounting holes where the heatsink overlaps can only fit M2 size screws (Ø1.86 mm – Ø1.89 mm). November 25, 2010 - 6 - Version 1.13... - Page 9 EPIA-PX Operating Guide November 25, 2010 - 7 - Version 1.13...
-
Page 10: Power Consumption
EPIA-PX Operating Guide Power Consumption Power consumption tests were carried out on the VIA EPIA-PX. The following tables are a comprehensive breakdown of the EPIA platform’s voltage, amp and wattage values while running common system applications. VIA EPIA-PX with 1.0 GHz C7 processor A. -
Page 11: Via Epia-Px With 500 Mhz Eden Ulv Processor
Main Board 5VSB 4.96 0.01 0.05 Main Board +12V 11.88 0.03 0.36 Main Board Power Consumption 8.15 VIA EPIA-PX with 500 MHz Eden ULV processor A. Idle Measured Voltage Measured Amp. Watts Main Board +3.3V 3.27 0.424 1.39 Main Board +5V 4.81... -
Page 12: Power Specifications
EPIA-PX Operating Guide Power Specifications The EPIA-PX utilizes a special 12-pin Pico-ITX power supply connector. Due to the EPIA-PX platform’s ultra low power requirements a 60 Watt power supply is ample for even the heaviest of multimedia system applications. +3.3V +3.3V... -
Page 13: Via Epia-Px Microsoft And Linux Driver Support
VIA EPIA-PX Microsoft and Linux Driver Support Microsoft Driver Support VIA EPIA-PX offers full support for the complete range of Microsoft operating systems. For standard operating systems, Windows 2000/XP latest drivers downloads can be found in the VEPD website at www.viaembedded.com. -
Page 14: Contact Information
EPIA-PX Operating Guide Contact Information For more information on the VIA EPIA-PX Pico-ITX mainboard contact your sales representative or visit our website at www.viaembedded.com. Taiwan Headquarters Europe 1F, 531 Zhong-Zheng Road 940 Mission Court In den Dauen 6 Xindian, Taipei, 23148...
