Operating Guide
EPIA-P700 Mainboard

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPIA-P700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VIA Technologies EPIA-P700

Summary of Contents for VIA Technologies EPIA-P700

  • Page 1 Operating Guide EPIA-P700 Mainboard...

  • Page 2: Table Of Contents

    B. With Internal HDD Power................................10 VIA EPIA-P700-05LE ....................................11 A. With External HDD Power.................................11 B. With Internal HDD Power................................11 Power Specifications....................................12 VIA EPIA-P700 Microsoft and Linux Driver Support ........................13 Microsoft Driver Support ..................................13 Linux Driver Support .....................................13 Contact..........................................14 November 25, 2010 - i - Version 1.03...

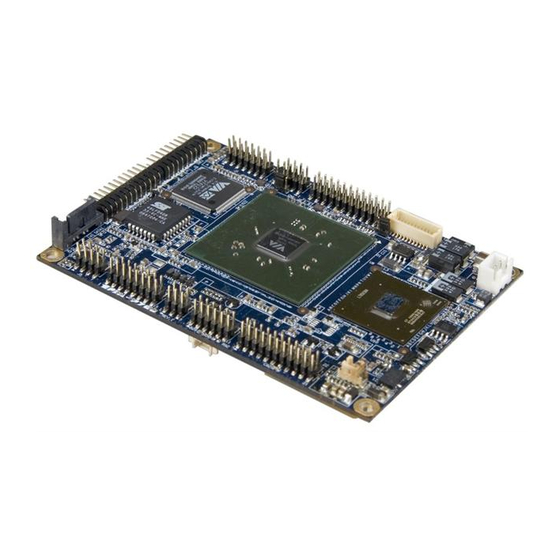

  • Page 3: Via Epia-P700 Overview

    SATA (1.5 Gbps) storage device. To keep the profile of the EPIA-P700 low, all of the usual I/O ports are removed in favor of onboard connectors. Additionally, the conventional CMOS battery holder has been replaced with a cabled battery —...

  • Page 4: Via Epia-P700 Layout

    EPIA-P700 Operating Guide VIA EPIA-P700 Layout Figure 1: Layout of EPIA-P700 November 25, 2010 - 2 - Version 1.03...

  • Page 5: Via Epia-P700 Specifications

    EPIA-P700 Operating Guide VIA EPIA-P700 Specifications Model Name - EPIA-P700-10L - EPIA-P700-05LE ® Processor - VIA C7 1.0 GHz NanoBGA2 processor fan - VIA Eden ULV 500 MHz NanoBGA2 sink processor with heat sink Chipset - VIA VX700 Unified Digital Media IGP Chipset...

  • Page 6: Via Epia-P700 Processor Skus

    EPIA-P700 Operating Guide VIA EPIA-P700 Processor SKUs The VIA EPIA-P700 is available in two speed grades as follows: • ® 1.0 GHz VIA C7 NanoBGA2 Processor • 500 MHz VIA Eden ULV NanoBGA2 Processor November 25, 2010 - 4 -...

  • Page 7: Via Vx700 Chipset Overview

    VIA UniChrome™ Pro II with 2D/3D graphics and video acceleration, DDR2 667/533 MHz support, motion compensation and dual display support to ensure a rich overall entertainment experience. Outstanding connectivity features include USB 2.0, 10/100 LAN, SATA (1.5 Gbps), and ATA/133. Figure 2: VX700 as implemented in EPIA-P700 November 25, 2010 - 5 -...

  • Page 8: Via Epia-P700 Companion I/O Boards

    VIA EPIA-P700 Companion I/O Boards The VIA EPIA-P700 mainboard comes in the ultra compact 10 cm x 7.2 cm Pico-ITX form factor. In addition to its integrated on-board pin headers, the EPIA-P700 has two companion I/O boards: P700-A and P700-B.

  • Page 9: Via Epia-P700 Dimensions

    EPIA-P700 Operating Guide VIA EPIA-P700 Dimensions Figure 5: Dimensions and mounting hole layout Note: The mounting holes at the four corners can only fit M2 size screws (Ø1.86 mm – Ø1.89 mm). November 25, 2010 - 7 - Version 1.03...

  • Page 10: Via Epia-P700 Height Distribution (Top)

    EPIA-P700 Operating Guide VIA EPIA-P700 Height Distribution (top) Figure 6: Height distribution of the top side and heat sink layout November 25, 2010 - 8 - Version 1.03...

  • Page 11: Via Epia-P700 Height Distribution (Bottom)

    EPIA-P700 Operating Guide VIA EPIA-P700 Height Distribution (bottom) Figure 7: Height distribution of the bottom side November 25, 2010 - 9 - Version 1.03...

  • Page 12: Power Consumption

    EPIA-P700 Operating Guide Power Consumption Power consumption tests were performed on the VIA EPIA-P700 for both processor options. The following tables are a comprehensive breakdown of the voltage, amp and wattage values while running common system applications. VIA EPIA-P700-10L A. With External HDD Power...

  • Page 13: Via Epia-P700-05Le

    EPIA-P700 Operating Guide VIA EPIA-P700-05LE A. With External HDD Power Measured Voltage Measure Amp Watts Boot to Idle 11.84 0.80 9.472 Max98 11.84 0.67 7.933 3DMark 2001 11.84 0.93 11.011 WinDiag V2.07b 11.84 0.82 9.709 Passmark V3.0 11.84 0.78 9.235 CC Winstone 2004 11.84...

  • Page 14: Power Specifications

    EPIA-P700 Operating Guide Power Specifications The VIA EPIA-P700 mainboard utilizes a +12V DC-in power connector for providing power to the mainboard. The dimensions of the DC-in port are show in the figure below. Figure 8: DC-in dimensions November 25, 2010 - 12 - Version 1.03...

  • Page 15: Via Epia-P700 Microsoft And Linux Driver Support

    RIVER UPPORT The VIA EPIA-P700 mainboard is compatible with Microsoft operating systems. The latest Windows 2000 and Windows XP drivers can be downloaded from the VEPD website at www.viaembedded.com. For embedded operating systems (Windows CE.NET and Windows XP Embedded), the related drivers can be found in the VIA Arena website at www.viaarena.com.

  • Page 16: Contact

    EPIA-P700 Operating Guide Contact For more information on the VIA EPIA-P700 Pico-ITX mainboard contact your sales representative or visit our website at www.viaembedded.com Taiwan Headquarters Europe 1F, 531 Zhong-Zheng Road 940 Mission Court In den Dauen 6 Xindian, Taipei, 23148...
