Summary of Contents for VIA Technologies EPIA-P830

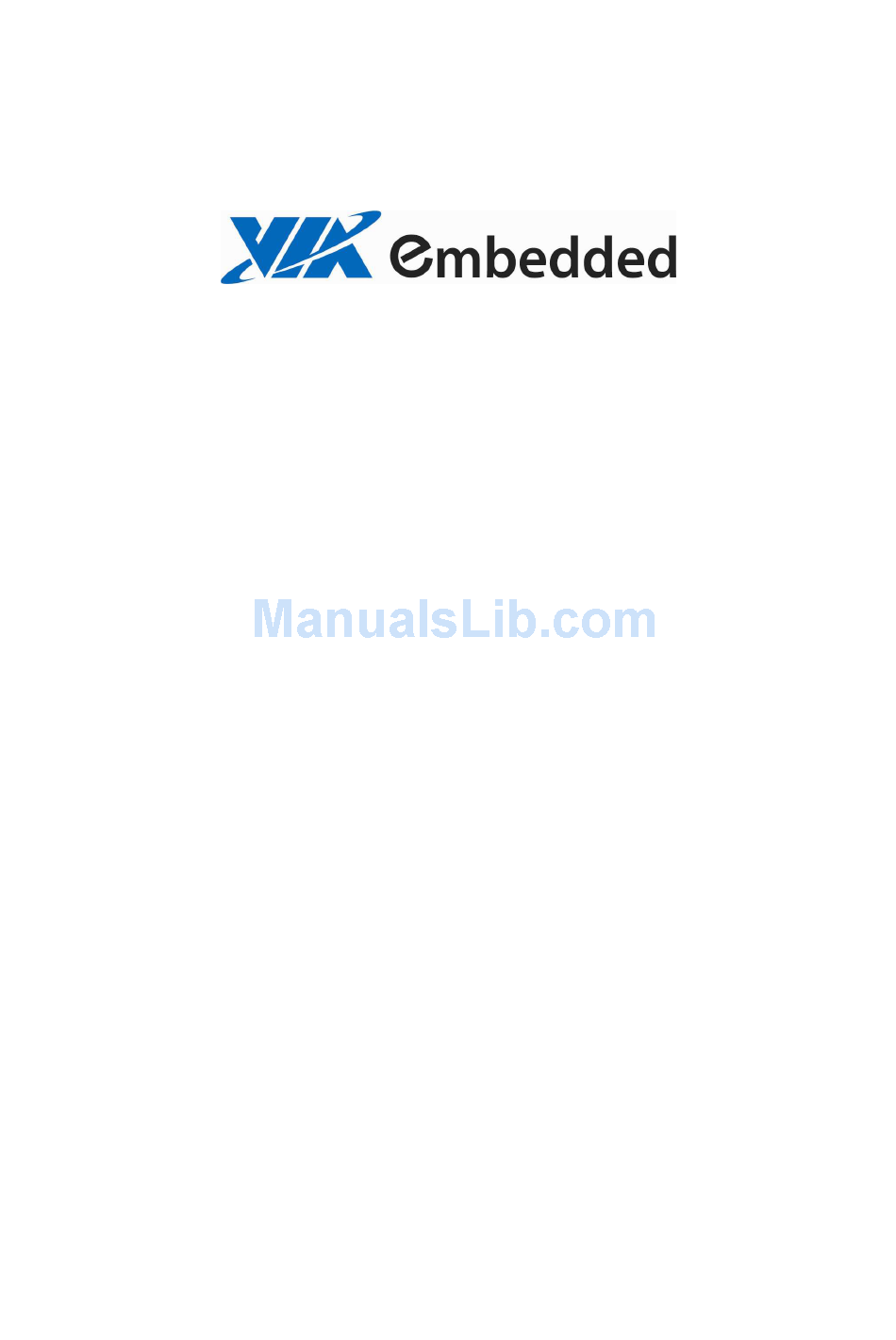

- Page 1 Operating Guide EPIA-P830 Mainboard...
-
Page 2: Table Of Contents
VIA EPIA-P830 layout ....................................2 VIA EPIA-P830 specifications ................................... 3 VIA EPIA-P830 processor SKUs ................................4 VIA VX900 chipset overview..................................5 VIA EPIA-P830 and P830-A board dimensions ..........................6 VIA P830-B board dimensions................................. 7 Power consumption..................................... 8 VIA EPIA-P830 1.2 GHz ..................................8 Power Specifications.................................... -

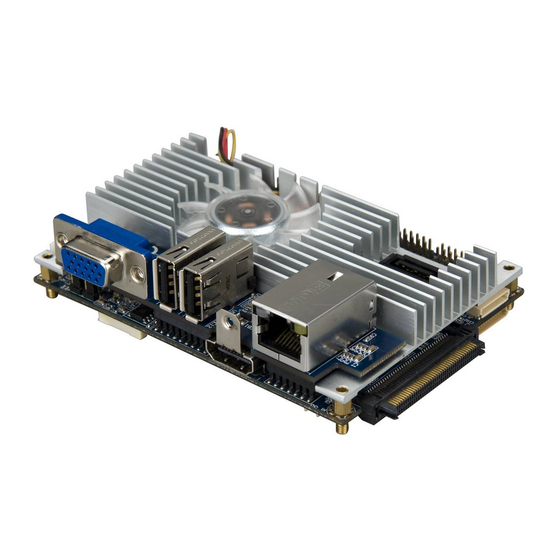

Page 3: Via Epia-P830 Overview
VIA TwinTurbo™ technology. The VIA EPIA-P830 includes one 1066/800 MHz DDR3 SODIMM slot that supports up to 4 GB. The VIA EPIA- P830 provides support for high fidelity audio with its included VIA VT1708S High Definition Audio codec. In addition it supports two SATA 3Gb/s storage devices. -
Page 4: Via Epia-P830 Layout
EPIA-P830 Operating Guide VIA EPIA-P830 layout Figure 1: EPIA-P830 layout Figure 2: P830-A companion card December 17, 2010 - 2 - Version 1.03... -
Page 5: Via Epia-P830 Specifications
EPIA-P830 Operating Guide VIA EPIA-P830 specifications Model Name EPIA-P830-12L Processor - VIA 1.2GHz U3300 Nano processor Thermal Solution - Heatsink with fan Chipset - VIA VX900 Unified Digital Media IGP Chipset System Memory - 1 x DDR3 1066/800 MHz SODIMM slot (up to 4 GB) - Integrated VIA Chrome9™... -
Page 6: Via Epia-P830 Processor Skus
EPIA-P830 Operating Guide VIA EPIA-P830 processor SKUs The VIA EPIA-P830 is available in the following speed grade: • VIA 1.2 GHz U3300 Nano processor (EPIA-P830-12L) December 17, 2010 - 4 - Version 1.03... -
Page 7: Via Vx900 Chipset Overview
DVD playback in a new generation of small form factor PCs and IA devices. The VIA VX900 features VIA Chrome9™ HD with 2D/3D graphics and video acceleration, DDR3 1066/800 MHz support, motion compensation and dual display support to ensure a rich overall entertainment experience. Figure 3: VX900 as implemented in the EPIA-P830 December 17, 2010 - 5 -... -
Page 8: Via Epia-P830 And P830-A Board Dimensions
EPIA-P830 Operating Guide VIA EPIA-P830 and P830-A board dimensions Figure 4: EPIA-P830 mainboard and P830-A daughterboard dimensions Note: The mounting holes at the four corners can only fit M2 size screws (Ø1.86 mm – Ø1.89 mm). December 17, 2010 - 6 -... -
Page 9: Via P830-B Board Dimensions
EPIA-P830 Operating Guide VIA P830-B board dimensions Figure 5: P830-B daughterboard dimensions December 17, 2010 - 7 - Version 1.03... -
Page 10: Power Consumption
EPIA-P830 Operating Guide Power consumption Power consumption tests were performed on the VIA EPIA-P830 with the following components as shown in the table below. Component Description Memory Corsair DDR3 2GB Hard disk drive Fujitsu 2.5” STAT2 160GB Power supply Seasonic SSA-0651-1... -
Page 11: Power Specifications
EPIA-P830 Operating Guide Power Specifications The VIA EPIA-P830 mainboard is available with a 2-pin +12V power connector for connecting to an external power block that outputs +12V ±5%/5A. Signal +12V December 17, 2010 - 9 - Version 1.03... -
Page 12: Via Epia-P830 Microsoft And Linux Driver Support
RIVER UPPORT The VIA EPIA-P830 mainboard is compatible with Microsoft operating systems. The latest Windows 2000 and Windows XP drivers can be downloaded from the VEPD website at www.viaembedded.com. For embedded operating systems (Windows CE and Windows XP Embedded), the related drivers can be found in the VIA Embedded website at www.viaembedded.com. -
Page 13: Contact Information
EPIA-P830 Operating Guide Contact information For more information on the VIA EPIA-P830 Pico-ITX mainboard contact your sales representative or visit our website at www.viaembedded.com Taiwan Headquarters Europe 1F, 531 Zhong-Zheng Road 940 Mission Court In den Dauen 6 Xindian, Taipei, 23148...
