Summary of Contents for VIA Technologies EPIA-P820

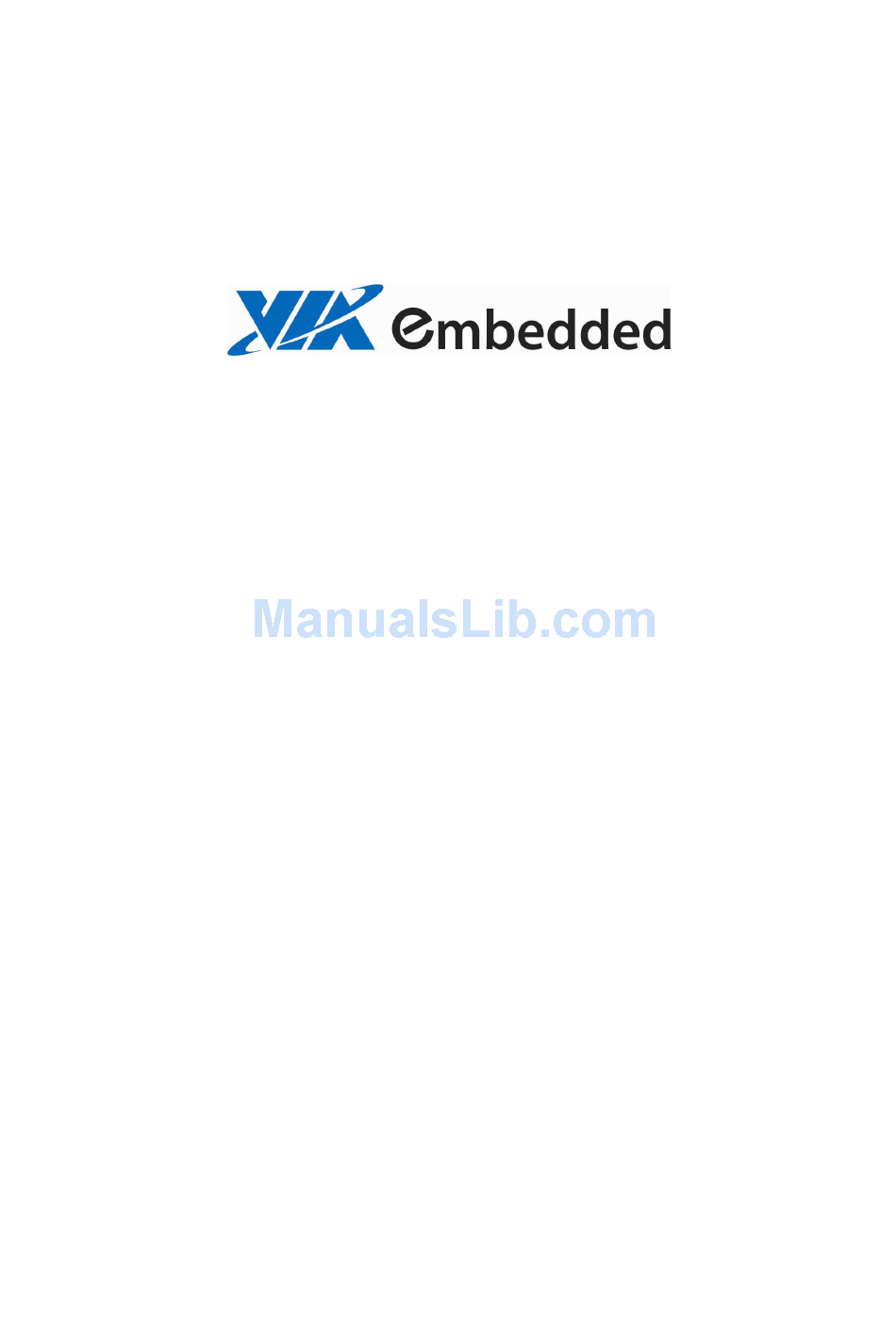

- Page 1 Operating Guide EPIA-P820 Mainboard...
-
Page 2: Table Of Contents
Boot to Idle (XP) .......................9 Stress Tool ........................9 3DMark2003 ........................9 PowerDVD 6.0........................9 Power Specifications ......................10 VIA EPIA-P820 Microsoft and Linux Driver Support ..............11 Microsoft Driver Support....................11 Linux Driver Support......................11 Contact ..........................12 June 24, 2013 - i -... -
Page 3: Via Epia-P820 Overview
EPIA-P820 Operating Guide VIA EPIA-P820 Overview The VIA EPIA-P820 Pico-ITX mainboard is an ultra compact native x86 platform for a wide range of embedded system applications. The mainboard is based on the VIA VX855 All-in-One System Processor featuring the VIA Chrome™ 9 HCM DX9 IGP with video accelerators for rich digital media performance. -
Page 4: Layout Diagrams
EPIA-P820 Operating Guide Layout Diagrams EPIA-P820 ( TOP AND BOTTOM VIEWS June 24, 2013 - 3 - Version 1.06... -
Page 5: Via Epia-P820 Specifications
EPIA-P820 Operating Guide VIA EPIA-P820 Specifications EPIA-P820-12L Model Name Processor VIA Nano 1.2 GHz NanoBGA2 processor VIA VX855 All-in-One System Processor Chipset System Memory - 1 x DDR2 800/667 SODIMM socket - Up to 2 GB memory size - VIA Chrome™ 9 HCM DX9 Integrated Graphics with MPEG-2 accelerators... -
Page 6: Via Epia-P820 Processor Sku
EPIA-P820 Operating Guide VIA EPIA-P820 Processor SKU The VIA EPIA-P820 Pico-ITX mainboard is available in the following speed grades: • 1.2 GHz VIA Nano Processor June 24, 2013 - 5 - Version 1.06... -
Page 7: Via Epia-P820 Dimensions & Mounting Holes
EPIA-P820 Operating Guide VIA EPIA-P820 Dimensions & Mounting Holes Note: The mounting holes at the four corners can only fit M2 size screws (Ø1.86 mm – Ø1.89 mm). June 24, 2013 - 6 - Version 1.06... -
Page 8: Via Epia-P820 Height Distribution
EPIA-P820 Operating Guide VIA EPIA-P820 Height Distribution EPIA-P820 board shown with P720-A module stacked on top June 24, 2013 - 7 - Version 1.06... -
Page 9: Power Consumption
EPIA-P820 Operating Guide Power Consumption Power consumption tests were performed on four different configurations. The following tables show the mainboard’s voltage, amp and wattage values while running common applications in the Windows XP environment. ESTED ONFIGURATIONS Configuration 1 • VIA Nano 1.2 GHz NanoBGA2 Processor with 800 MHz FSB •... -
Page 10: Boot To Idle (Xp)
EPIA-P820 Operating Guide (XP) OOT TO Measured Voltage (V) Measure Amp (I) Watts (W) Configuration 1 11.997 1.07 12.84 Configuration 2 11.997 1.56 18.72 Configuration 3 11.997 0.90 10.80 Configuration 4 11.997 0.91 10.92 TRESS Measured Voltage (V) Measure Amp (I) -
Page 11: Power Specifications
EPIA-P820 Operating Guide Power Specifications The VIA EPIA-P820 Pico-ITX mainboard utilizes a +12V DC-in power connector for providing power to the mainboard. The dimensions of the DC-in port are show in the figure below. Figure 1: DC-in dimensions June 24, 2013 - 10 - Version 1.06... -
Page 12: Via Epia-P820 Microsoft And Linux Driver Support
RIVER UPPORT The VIA EPIA-P820 Pico-ITX mainboard is compatible with Microsoft operating systems. The latest Windows XP drivers can be downloaded from the VIA Embedded website at www.viaembedded.com. For embedded operating systems (Windows CE and Windows XP Embedded), the related drivers can be found in the VIA Embedded website at www.viaembedded.com. -
Page 13: Contact
EPIA-P820 Operating Guide Contact For more information on the VIA EPIA-P820 Pico-ITX mainboard contact your sales representative or visit our website at www.viaembedded.com. Taiwan Headquarters Europe 1F, 531 Zhong-Zheng Road 940 Mission Court In den Dauen 6 Xindian District, New Taipei City, 231...
