Reassembling the WS4
Insert the modular connector on the Mag Stripe Reader Cable through
o
the cut-out in the shield and attach it to the system board connector.

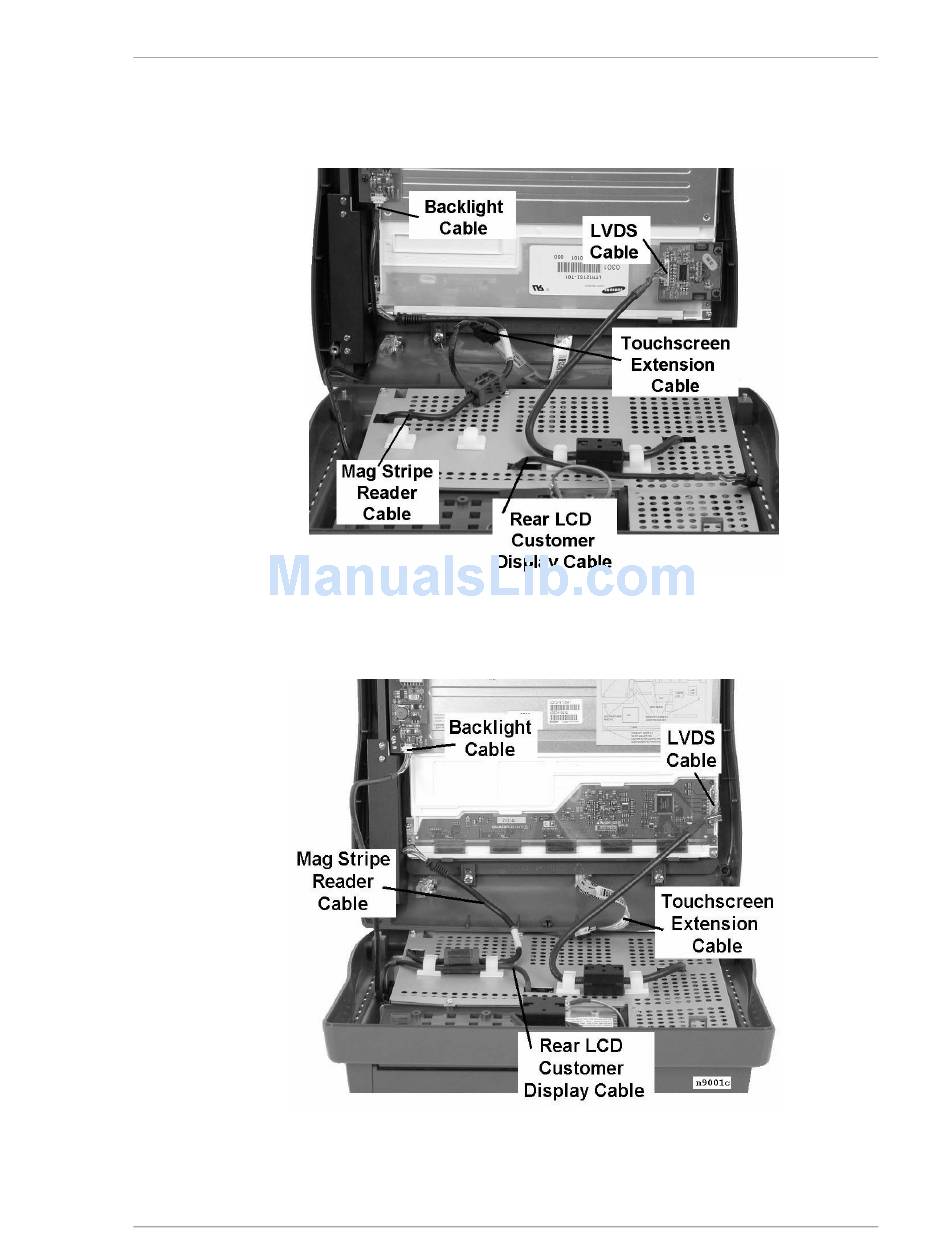

Figure 2-24: Connecting Cables to the Top Cover - Samsung LCD
Figure 2-25: Connecting Cables to the Top Cover - Sharp LCD
Workstation 4 Setup Guide
2-25
