Lcd Customer Display - Micros Systems Workstation 4 Setup Manual

What is The Workstation 4?
The System
Optional LCD Customer Display
A pair of new LCD based Customer Display options are scheduled for
release in mid-2004. Each is based on a 240x64 monochrome STN LCD
and a companion LCD Control Board.
The Integrated version includes a hinge assembly that mounts between the
top and bottom covers of the workstation, receiving power and data from
the system board. The upper portion of Figure 1-10 shows the LCD display
mounted to an WS4 LP (left) or to a WS4 placed on the Adjustable Stand
(right).
The lower half of Figure 1-10 displays several views of the pole mount
version of the LCD customer display. This version receives power and data
from a 4-pin Mini-DIN connector on the workstation IO panel. Both the
Integrated and Pole Displays can operate simultaneously and is capable of
emulating the 2x20 VFD.

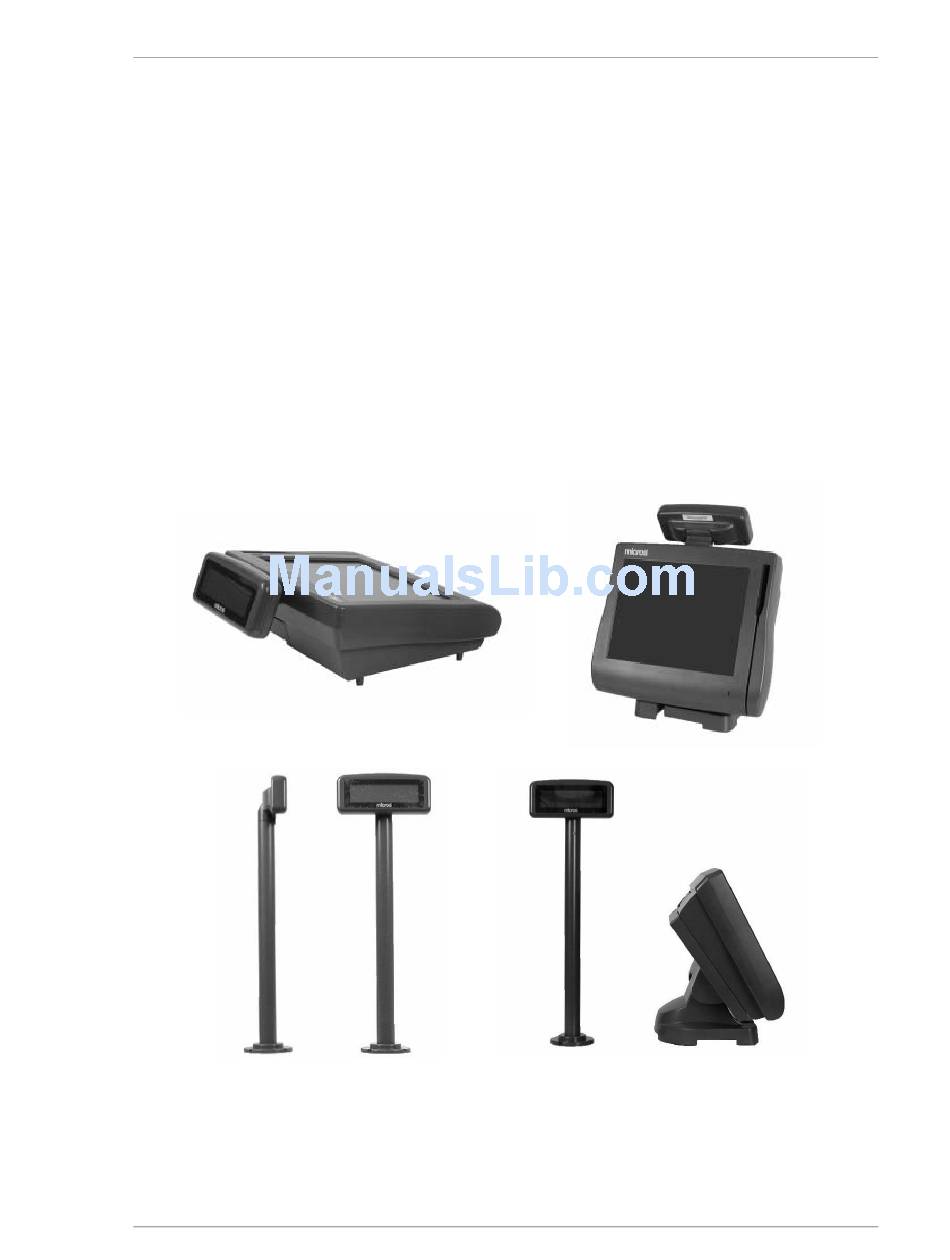

Figure 1-10: LCD Customer Display Options
Appendix A includes dimensional drawings for the LCD Customer Display.
Workstation 4 Setup Guide 1-9
