3. Insert the hex wrench into the bracket screws and turn it counter clock-wise
to remove each screw.
4. Remove the bracket. Set the bracket and screws aside for the moment.
• Figure 3-8 shows the CF personality card with the bracket removed.
Note the keying lip on the bottom of the card and the guides that hold it
in place.
5. Remove the CF card from the inoperative WS4. Use your thumbnail or pen
to catch the lip and remove the card from the socket. Figure 3-8. Hold on to
this card - it must be inserted into the replacement WS4.
6. Un-box and remove the packing material from the replacement WS4. If a
CF card is installed in this unit, repeat Step 4 to remove the bracket, then
Step 5 to remove the CF card. Set this card aside for the moment.
Workstation 4 Setup Guide
Installing and Operating the Workstation 4

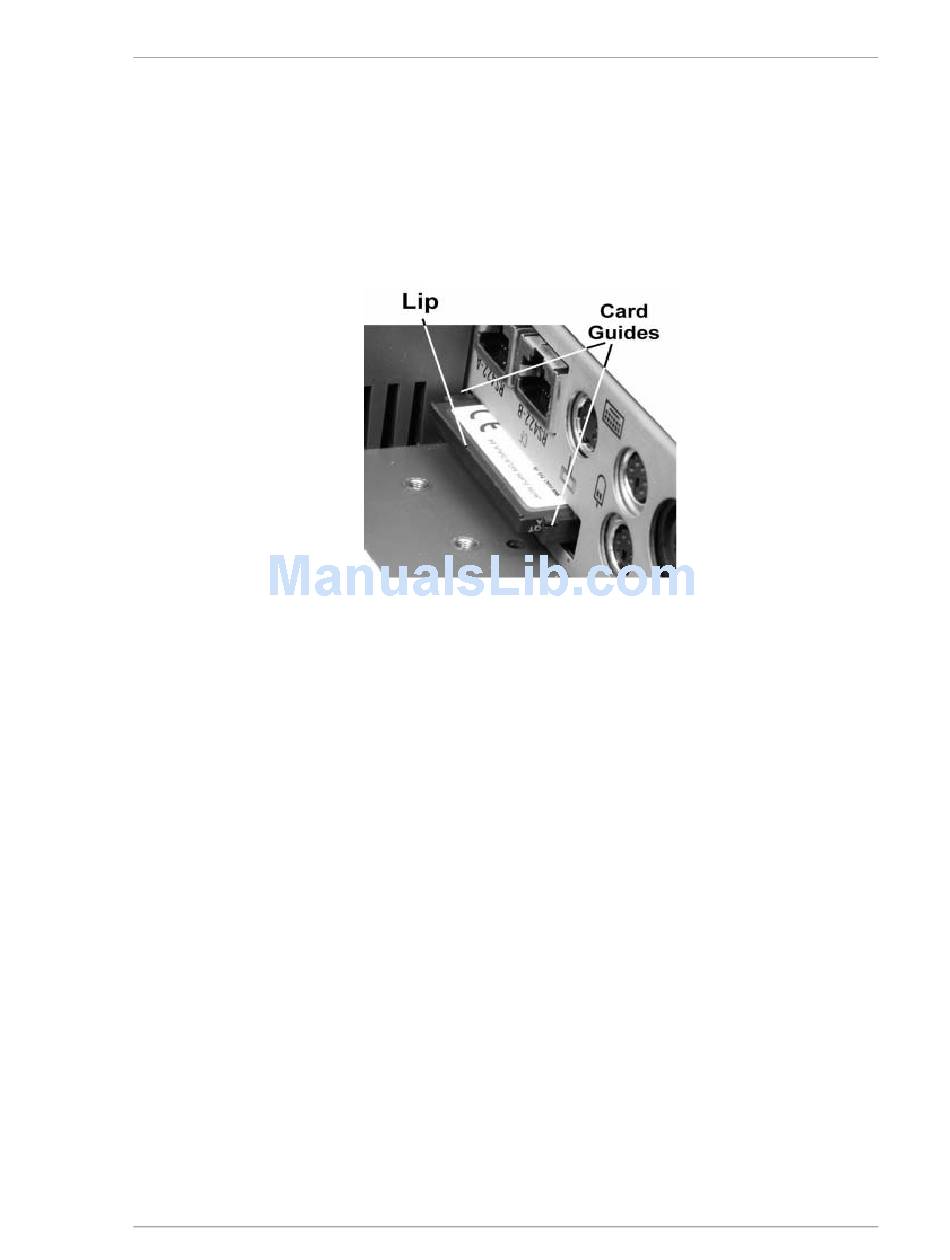

Figure 3-8: Compact Flash Card Removal
Personality Swap
3-17
