8-Pin To 6-Pin Hook-Up Rs422 Cable (300319-001 - Micros Systems Workstation 4 Setup Manual

Connector and Cable Diagrams
Hook-up Cables

8-Pin to 6-Pin Hook-up RS422 Cable (300319-001)

This cable brings out the RS422 signals from the 8-pin LCC/RS232 connector
to a 6-pin wall plate or directly to the 6-pin connector located on the IDN
device.

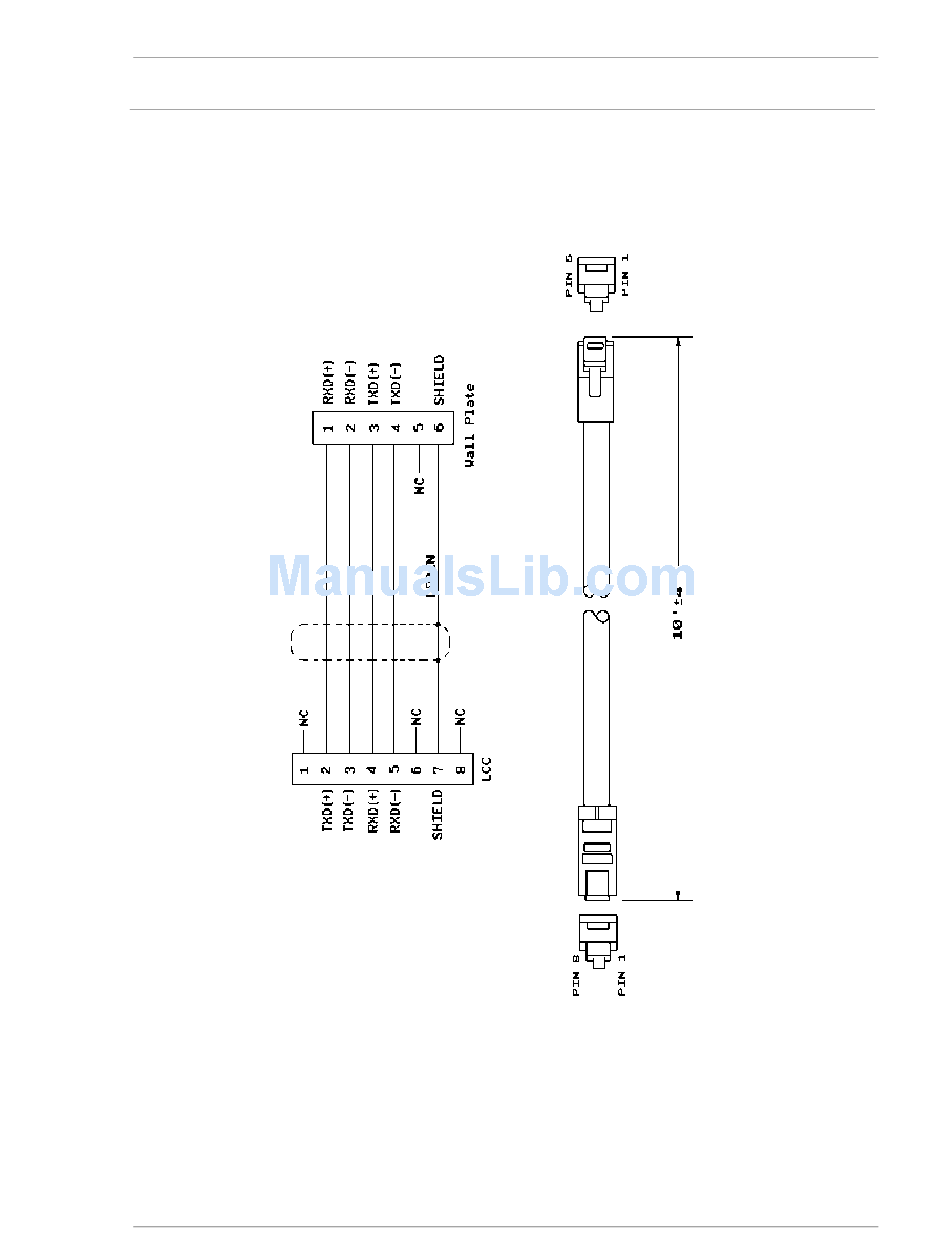

Figure B-18: 8-Pin to 6-Pin RS422 Hook-up Cable Diagram
Workstation 4 Setup Guide B-13
