Customer Display Options

A variety of integrated and pole mount Customer Display options are available
for the Workstation 4, described in the following pages. Part Numbers can be
found in the WS4 PMA.

VFD Customer Display

This customer display is composed a 2 Line, 20 Character Vacuum
Fluorescent Display (VFD). Two pole mount versions are available. It is
mounted to a pole approximately 6" in length that in turn is secured to the
WS4 Adjustable Stand with a customer made bracket. This version is
shown in Figure 1-8.

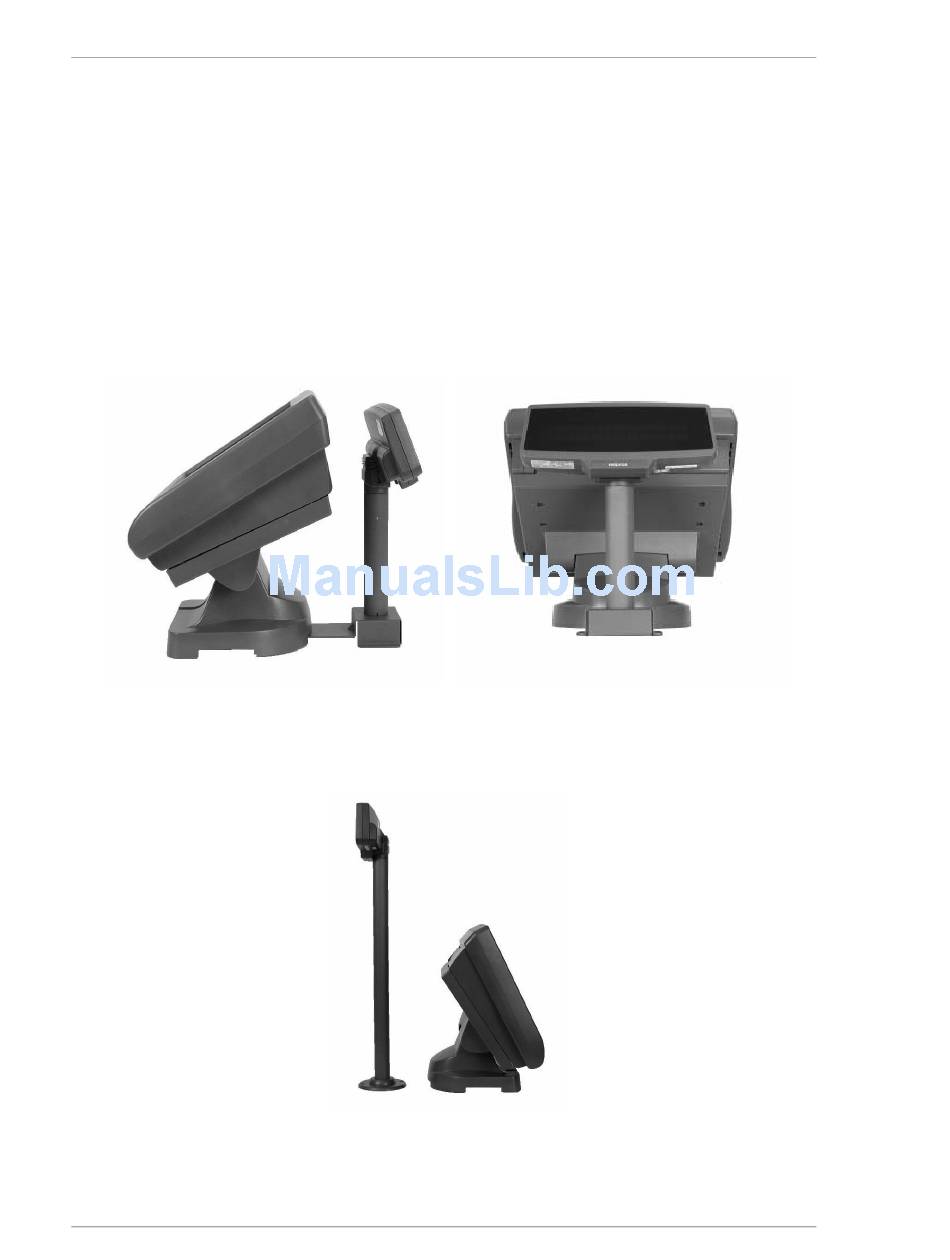

Figure 1-8: VFD Pole Display Mounted to the Adjustable Stand
A full size version of the VFD Pole Customer Display is shown in Figure
1-9. This version mounts to a counter surface and includes a 4 foot cable.
1-8
Figure 1-9: VFD Pole Customer Display
