• The Operator LED changes from solid Amber to solid Green.
• The previous LCD screen data is restored. If a customer display is
attached, the previously displayed data is restored.
Using the Magnetic Stripe Card
The Workstation 4 Magnetic Stripe Reader is mounted on the right side of the
top cover as shown in Figure 3-6, below. A symbolic representation of how the
card should be inserted is embossed on the cover. Figure 3-6 shows how to
insert the card and pull it through the reader slot past the reader head.
Tips for using Magnetic Cards
Magnetic cards should always be kept dry, and away from magnets or sharp
objects that could damage the encoded information on the card. If a mag card is
damp or wet, or appears damaged in any way, DO NOT insert into the reader.
If the unit does not read the mag cards consistently, the read head may be dirty
or contaminated. A cleaning card can be used to clean the reader head. This
type of card has a felt strip in place of the magnetic stripe which cleans the
head as it is swiped through the reader.
Workstation 4 Setup Guide

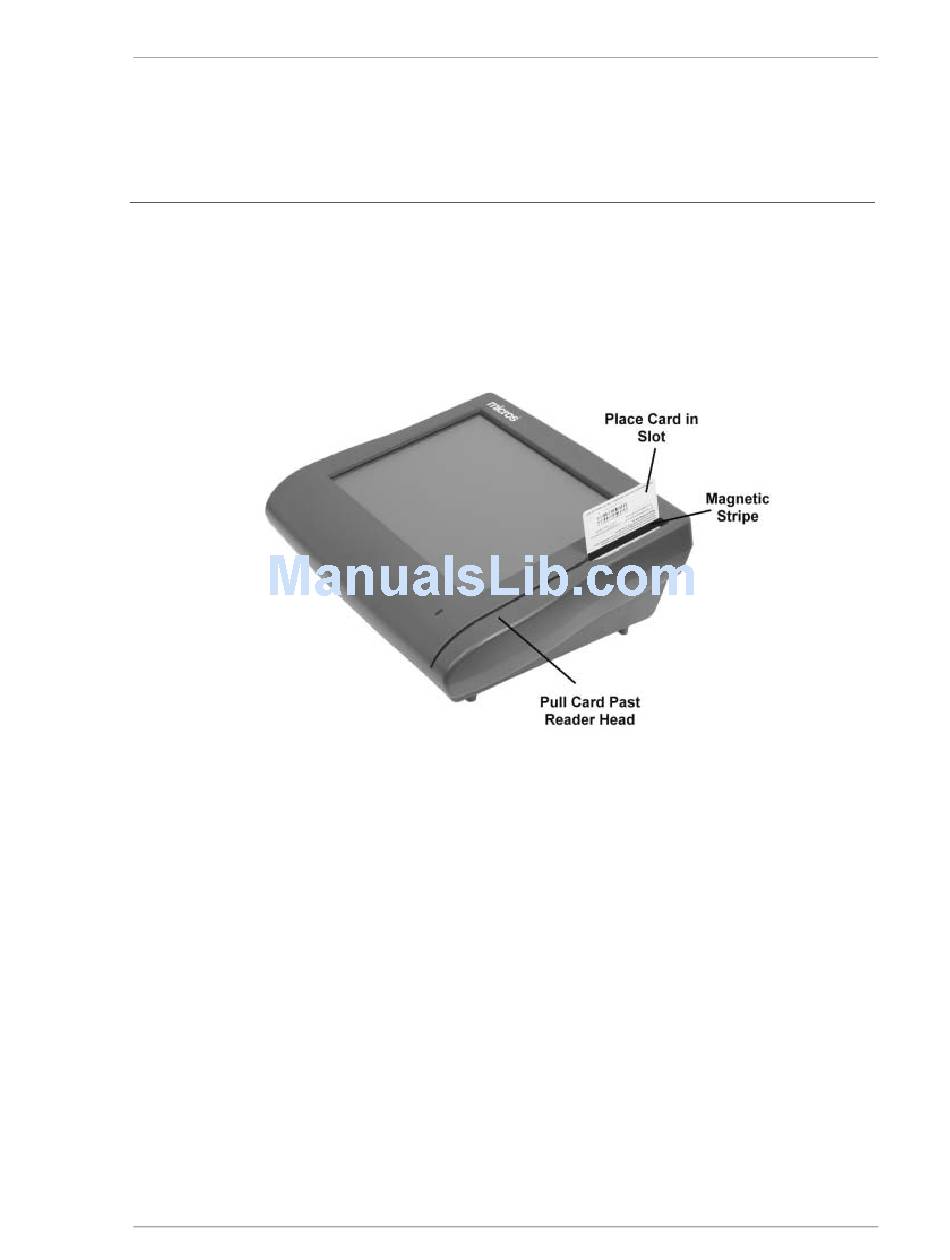

Figure 3-6: Using the Magnetic Card Reader
Installing and Operating the Workstation 4
Operation
3-13
