What is The Workstation 4?

The System

The System

The following section describes the hardware and software features of the
Workstation 4.
The MICROS Workstation 4 is a diskless Windows CE client, based on a
highly integrated AMD Geode SC3200 processor. It is enclosed in a low
profile case design with a self-contained power supply. A number of
installation, mounting, and customer display options are available, detailed in
the following pages.

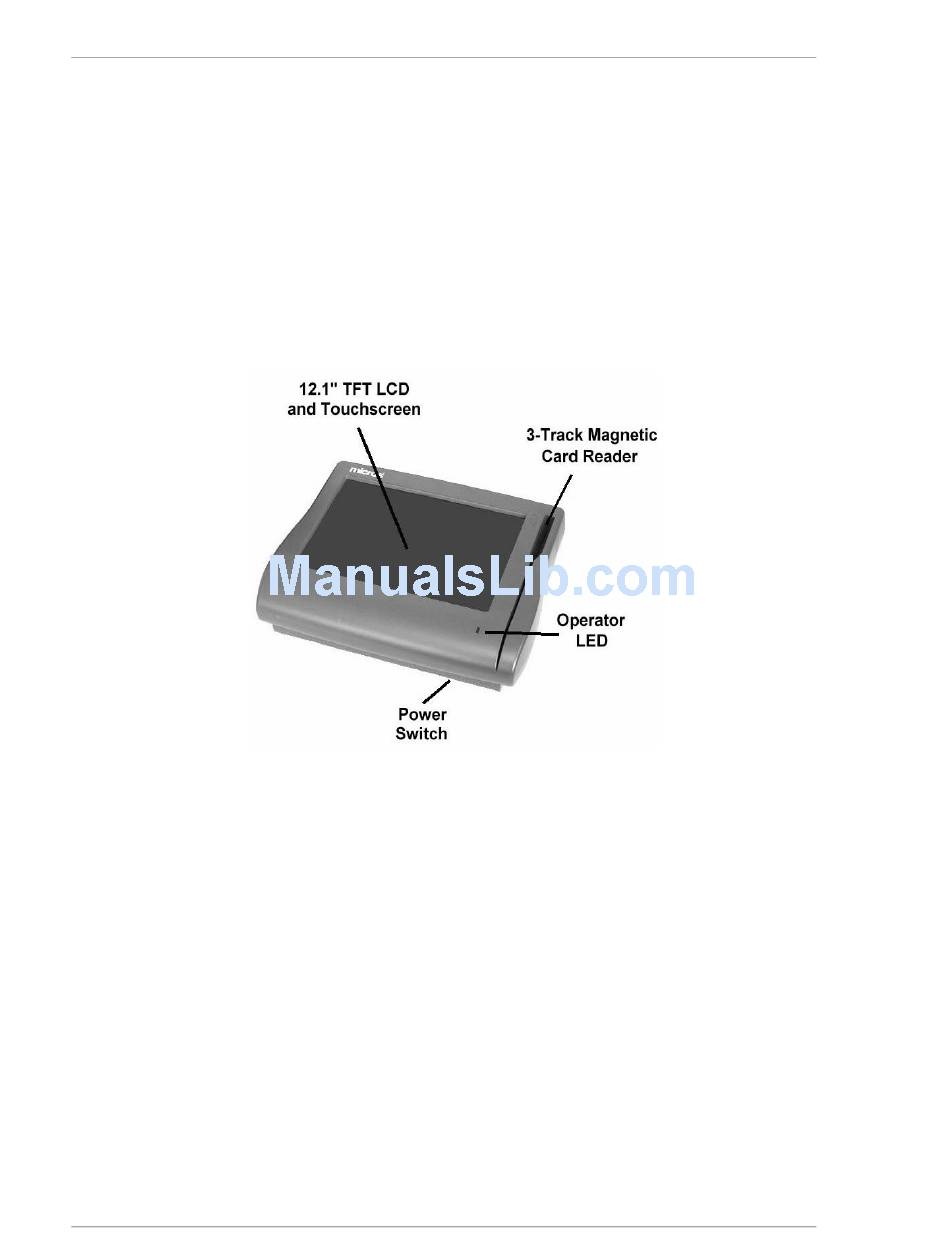

Figure 1-1 shows the Workstation 4 and points out the main controls.
Standard features include a 12-inch Active Matrix LCD, 5-wire resistive
touchscreen, and integrated 3-Track Mag Stripe Reader.
Operator LCD and Touchscreen
The Operator Liquid Crystal Display is 12.1" in size, and runs at a resolution
of 800x600 and is capable of supporting up to 64K colors. The touchscreen
glass is a Microtouch/3M 5-wire resistive touchscreen.

Magnetic Card Reader

The 3-track magnetic card reader can be serviced in just a few minutes. The
reader is attached to the workstation 4 system board with a modular connector.

Operator Power Switch

The power switch is recessed and located at the lower right corner of the unit.
It is used to power the workstation on or off, and to enter/exit the suspend state.
1-2
Figure 1-1: The Workstation 4
Workstation 4 Setup Guide
