Connector and Cable Diagrams
Hook-up Cables

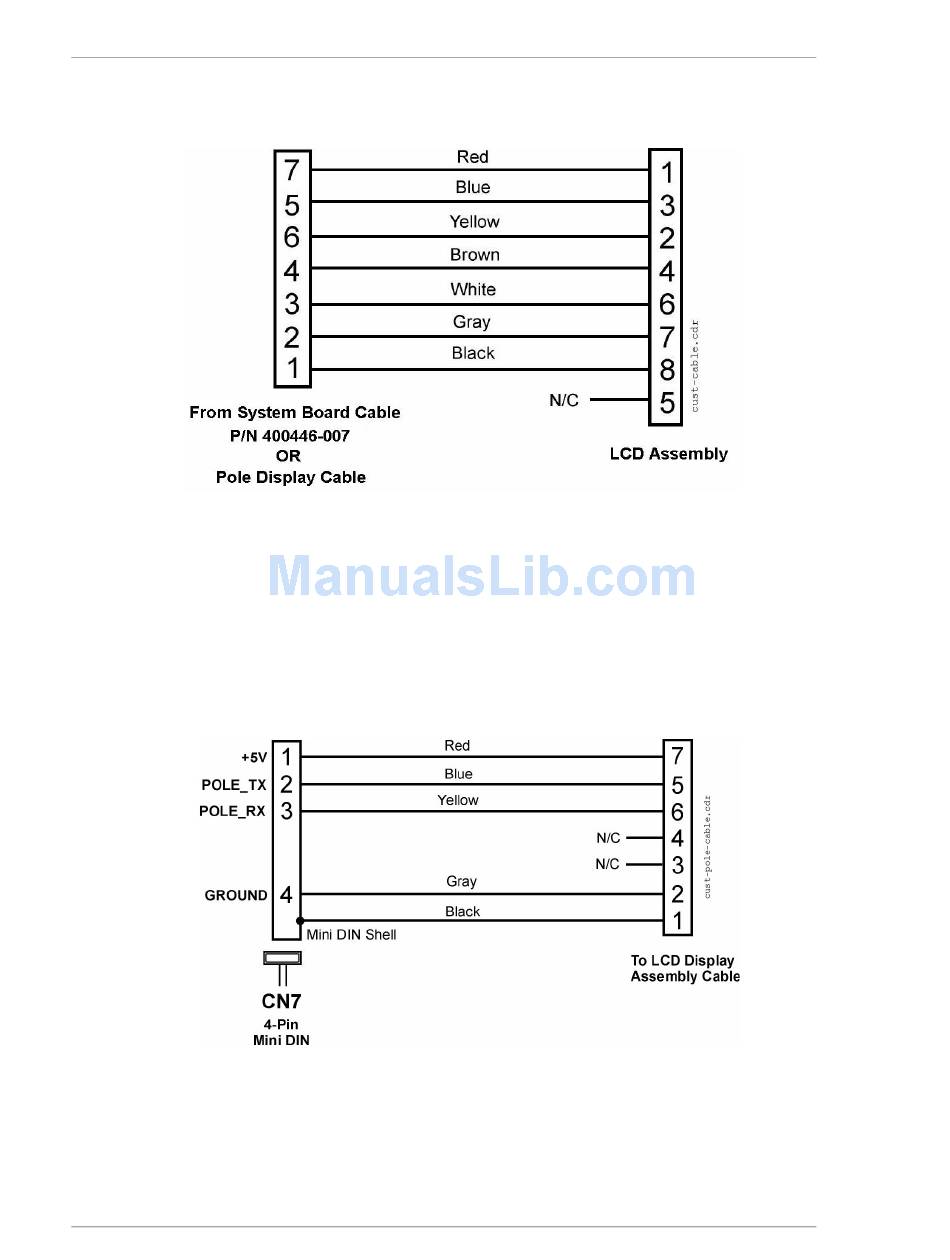

Figure B-14: LCD Customer Display Housing Cable

Remote Pole LCD Customer Display

This cable, shown in Figure B-15, is supplied with the Pole LCD Customer
Display kit. It attaches between the 4-pin DIN customer display connector on a
WS4 or KWS4 IO Panel, up through the pole to mate with the cable from the
LCD Display Assembly shown in Figure B-14.
Figure B-15: Remote Pole LCD Customer Display Assembly
