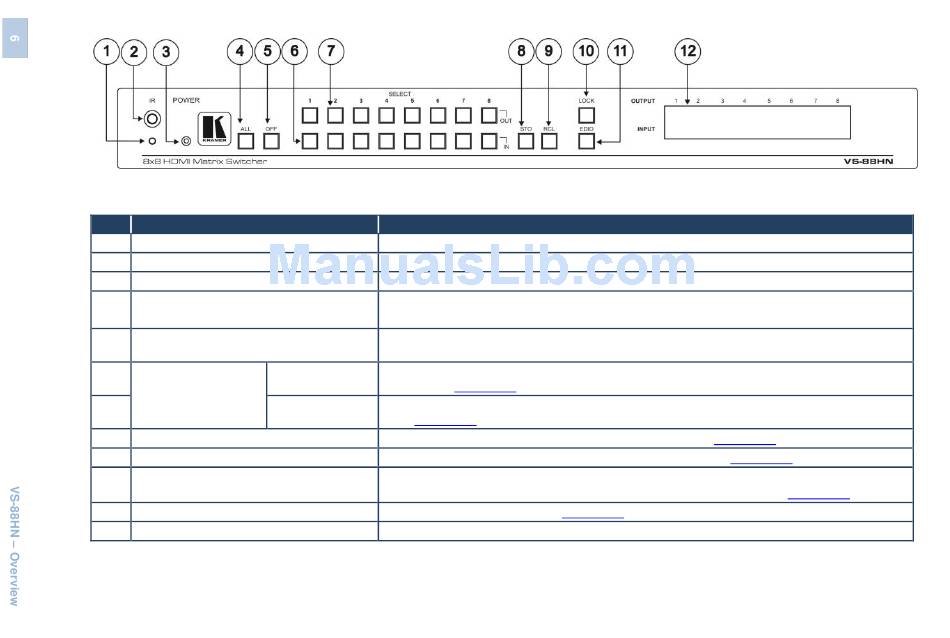

Figure 1: VS-88HN 8x8 HDMI Matrix Switcher Front Panel

#
1 IR Indication LED
2 IR Receiver
3 POWER LED
4 ALL Button
5 OFF Button
6
SELECT Buttons
7
8 STO Button
9 RCL Button
10 LOCK Button
11 EDID Button
12 OUTPUT/INPUT 7-segment LED Display
6
Feature
Lights yellow when receiving signals from the infrared remote control transmitter
Signal receiver for the infrared remote control transmitter
Lights when the device is turned on
Press followed by an input button to connect the selected input to all outputs
For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs
Press after pressing an output button to disconnect the selected output from the inputs.
To disconnect all the outputs, press ALL followed by OFF
IN (1 to 8) Press to select the input to switch after selecting an output (also used for storing machine
setups (see
OUT (1 to 8) Press to select an output to switch followed by an input (also used for storing machine setups
(see
Press to store the current switching setting to a preset (see
Press to recall the current switching setting from a preset (see
Press and hold to toggle the locking/release of the front panel buttons.
When storing or recalling presets, press to store or recall the preset (see
Press to capture the EDID (see
Displays the input currently switched to the output which is marked above each input
Section 6.3)
Section 6.3)
Section
