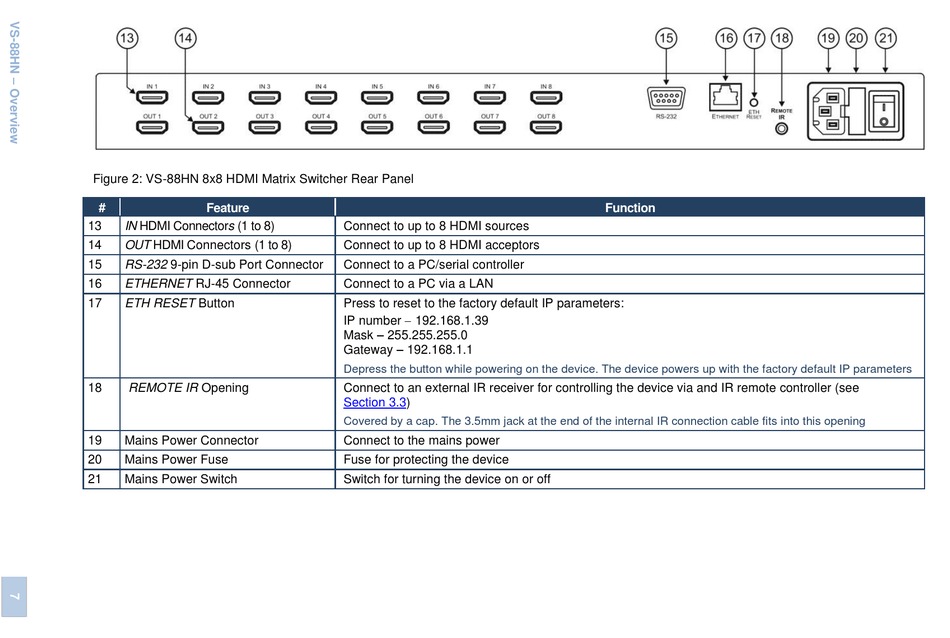

Figure 2: VS-88HN 8x8 HDMI Matrix Switcher Rear Panel

# Feature
13 IN HDMI Connectors (1 to 8)
14 OUT HDMI Connectors (1 to 8)
15 RS-232 9-pin D-sub Port Connector
16 ETHERNET RJ-45 Connector
17 ETH RESET Button
18 REMOTE IR Opening
19 Mains Power Connector
20 Mains Power Fuse
21 Mains Power Switch
VS-88HN - Overview
Connect to up to 8 HDMI sources
Connect to up to 8 HDMI acceptors
Connect to a PC/serial controller
Connect to a PC via a LAN
Press to reset to the factory default IP parameters:
IP number  192.168.1.39
Mask – 255.255.255.0
Gateway – 192.168.1.1
Depress the button while powering on the device. The device powers up with the factory default IP parameters
Connect to an external IR receiver for controlling the device via and IR remote controller (see
Section 3.3)
Covered by a cap. The 3.5mm jack at the end of the internal IR connection cable fits into this opening
Connect to the mains power
Fuse for protecting the device
Switch for turning the device on or off
