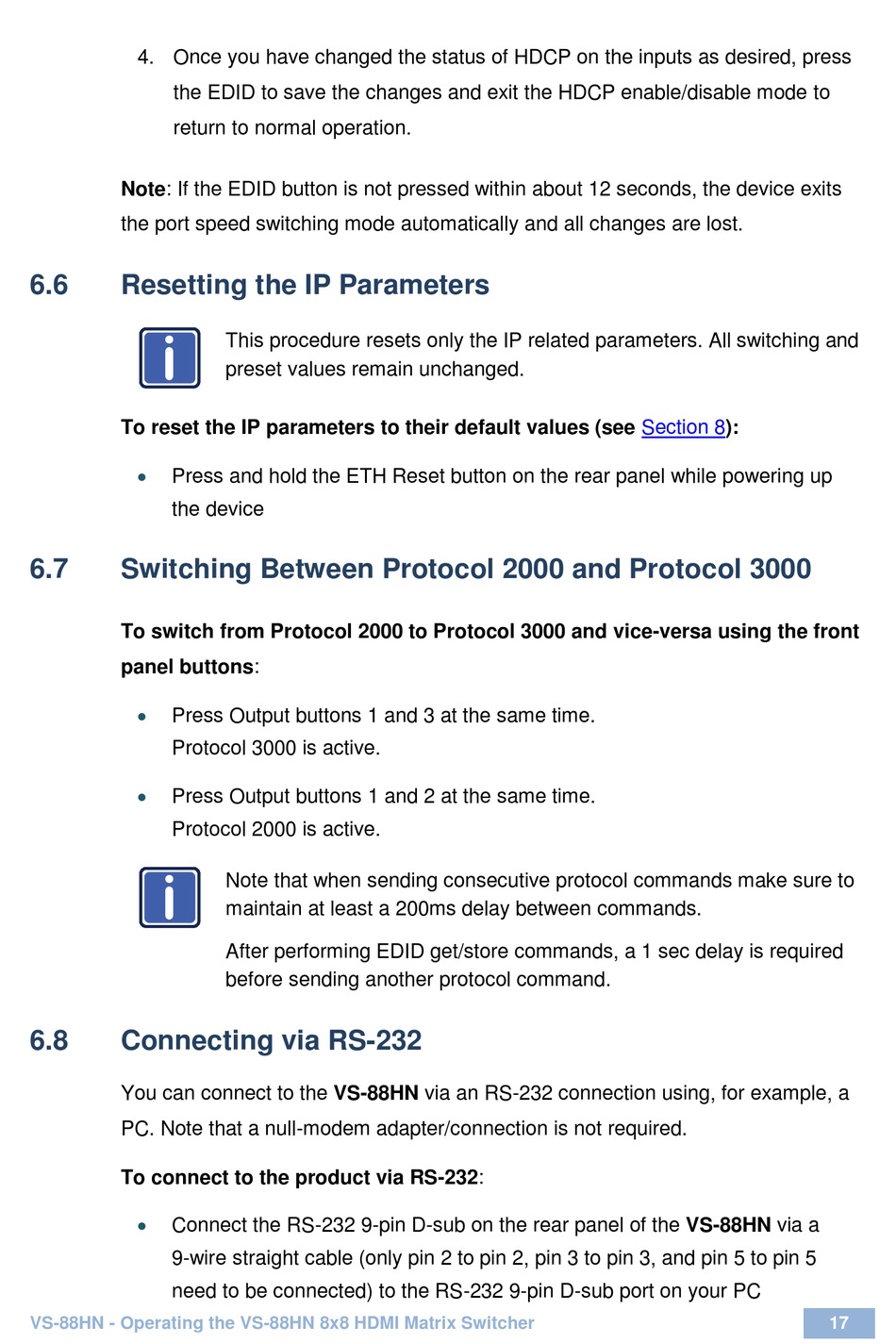

4. Once you have changed the status of HDCP on the inputs as desired, press
the EDID to save the changes and exit the HDCP enable/disable mode to
return to normal operation.
Note: If the EDID button is not pressed within about 12 seconds, the device exits
the port speed switching mode automatically and all changes are lost.
6.6

Resetting the IP Parameters

i
To reset the IP parameters to their default values (see

Press and hold the ETH Reset button on the rear panel while powering up
the device
6.7

Switching Between Protocol 2000 and Protocol 3000

To switch from Protocol 2000 to Protocol 3000 and vice-versa using the front
panel buttons:

Press Output buttons 1 and 3 at the same time.
Protocol 3000 is active.

Press Output buttons 1 and 2 at the same time.
Protocol 2000 is active.
i
6.8

Connecting via RS-232

You can connect to the VS-88HN via an RS-232 connection using, for example, a
PC. Note that a null-modem adapter/connection is not required.
To connect to the product via RS-232:

Connect the RS-232 9-pin D-sub on the rear panel of the VS-88HN via a
9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5
need to be connected) to the RS-232 9-pin D-sub port on your PC
VS-88HN - Operating the VS-88HN 8x8 HDMI Matrix Switcher
This procedure resets only the IP related parameters. All switching and
preset values remain unchanged.
Note that when sending consecutive protocol commands make sure to
maintain at least a 200ms delay between commands.
After performing EDID get/store commands, a 1 sec delay is required
before sending another protocol command.
Section 8):
17
