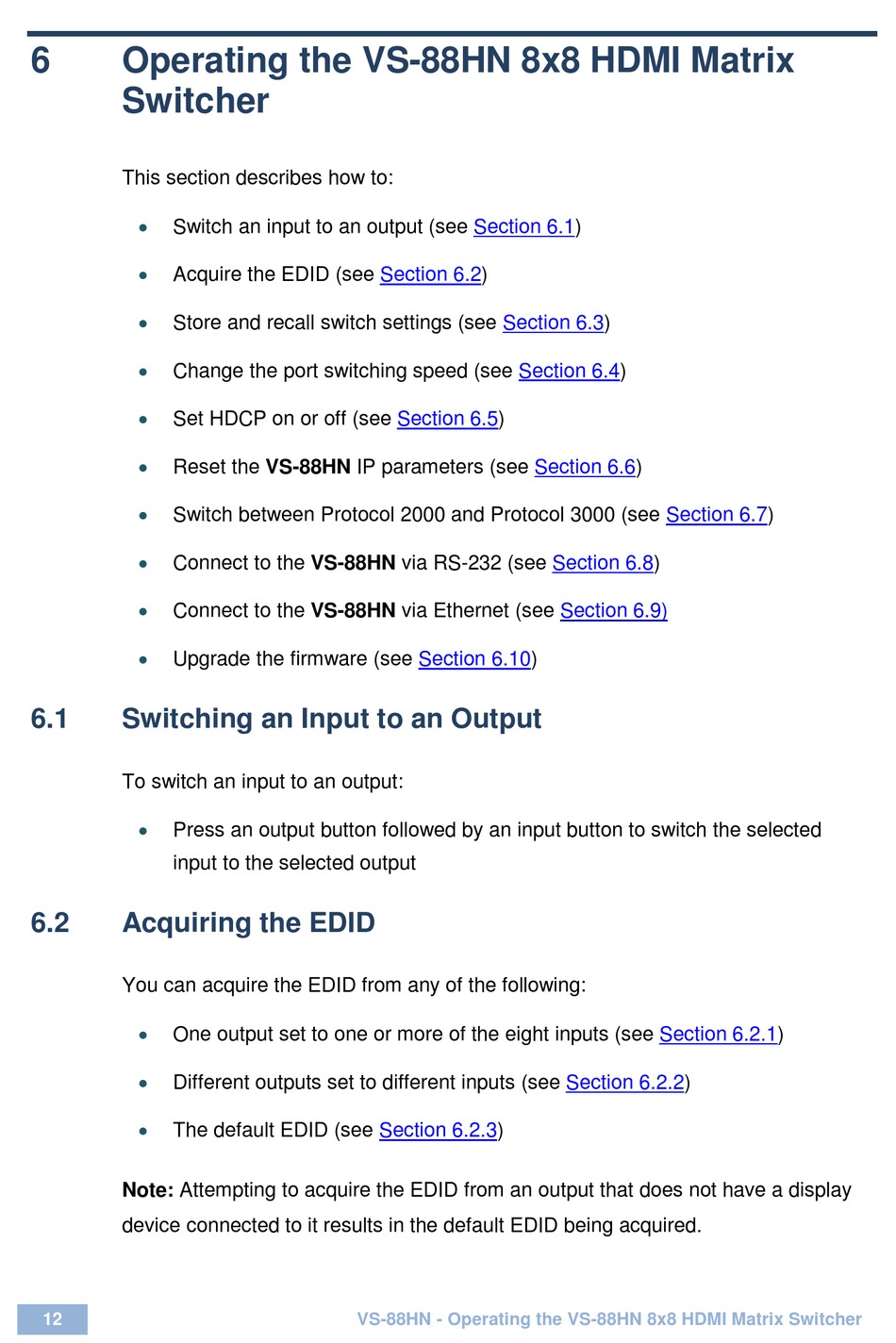

6 Operating the VS-88HN 8x8 HDMI Matrix
Switcher
This section describes how to:

Switch an input to an output (see

Acquire the EDID (see

Store and recall switch settings (see

Change the port switching speed (see

Set HDCP on or off (see

Reset the VS-88HN IP parameters (see

Switch between Protocol 2000 and Protocol 3000 (see

Connect to the VS-88HN via RS-232 (see

Connect to the VS-88HN via Ethernet (see

Upgrade the firmware (see
6.1

Switching an Input to an Output

To switch an input to an output:

Press an output button followed by an input button to switch the selected
input to the selected output
6.2

Acquiring the EDID

You can acquire the EDID from any of the following:

One output set to one or more of the eight inputs (see

Different outputs set to different inputs (see

The default EDID (see
Note: Attempting to acquire the EDID from an output that does not have a display
device connected to it results in the default EDID being acquired.
