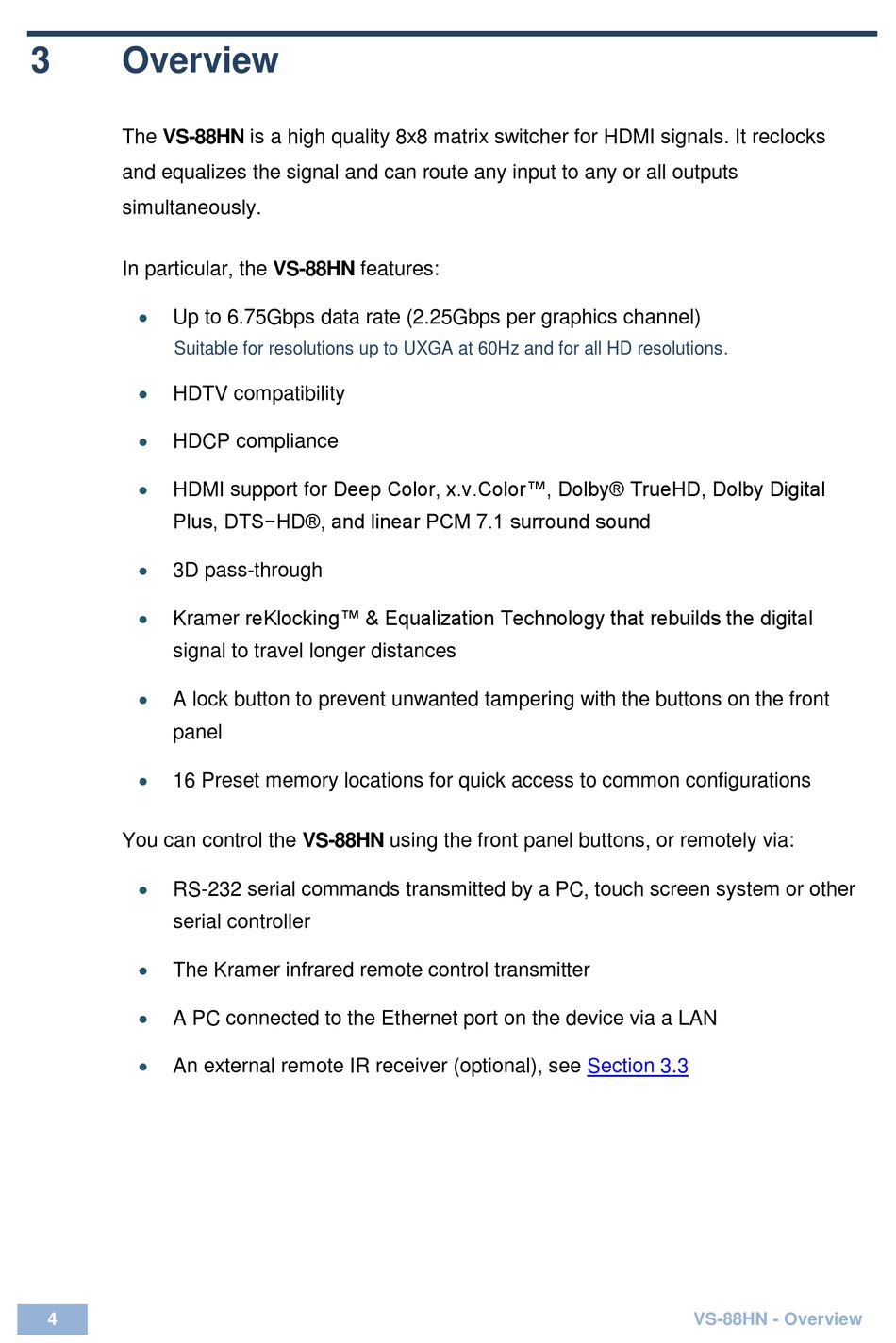

Overview

The VS-88HN is a high quality 8x8 matrix switcher for HDMI signals. It reclocks
and equalizes the signal and can route any input to any or all outputs
simultaneously.
In particular, the VS-88HN features:

Up to 6.75Gbps data rate (2.25Gbps per graphics channel)
Suitable for resolutions up to UXGA at 60Hz and for all HD resolutions.

HDTV compatibility

HDCP compliance

HDMI support for Deep Color, x.v.Color™, Dolby® TrueHD, Dolby Digital
Plus, DTS−HD®, and linear PCM 7.1 surround sound

3D pass-through

Kramer reKlocking™ & Equalization Technology that rebuilds the digital
signal to travel longer distances

A lock button to prevent unwanted tampering with the buttons on the front
panel

16 Preset memory locations for quick access to common configurations
You can control the VS-88HN using the front panel buttons, or remotely via:

RS-232 serial commands transmitted by a PC, touch screen system or other
serial controller

The Kramer infrared remote control transmitter

A PC connected to the Ethernet port on the device via a LAN

An external remote IR receiver (optional), see
4
Section 3.3
