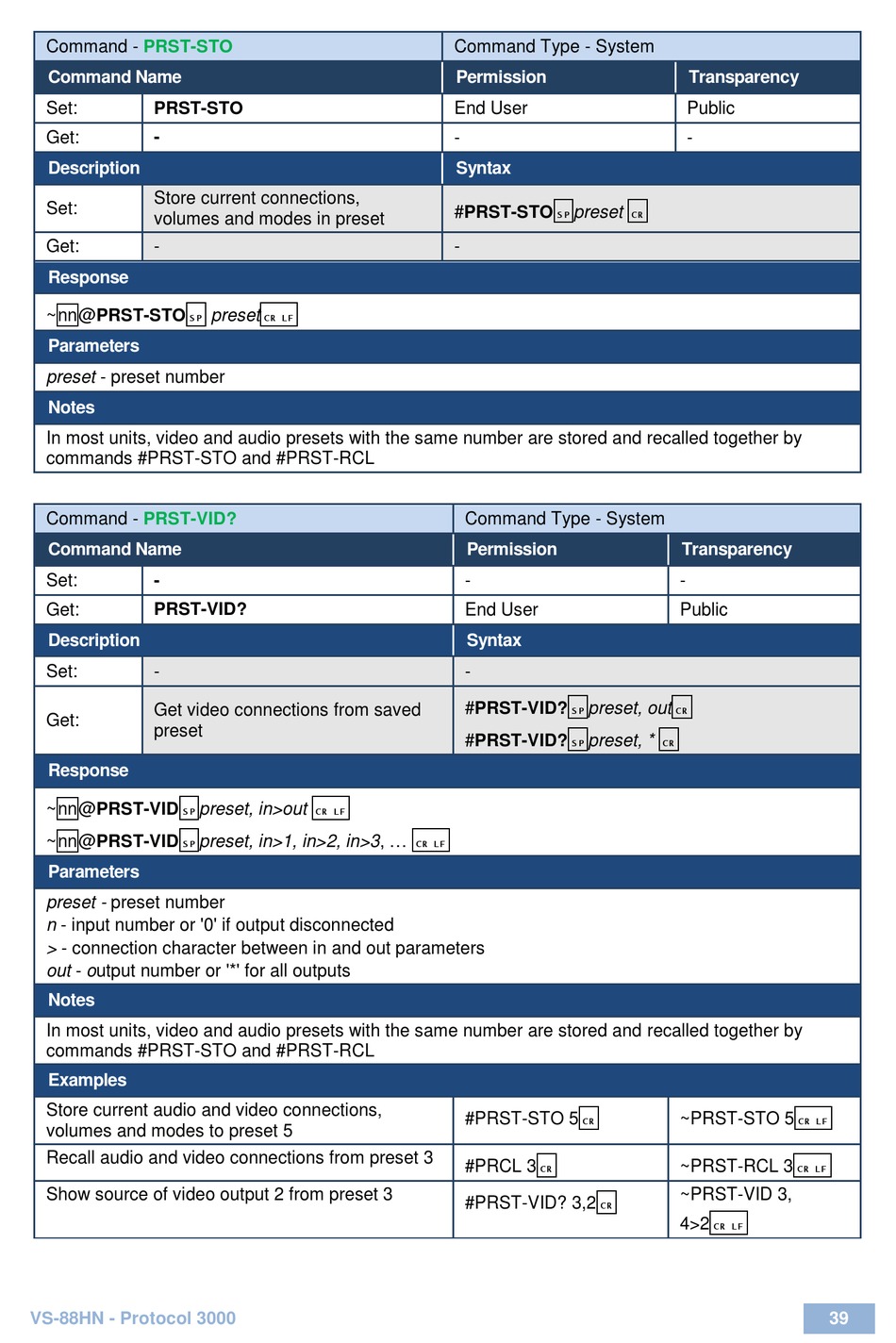

Kramer VS-88HN User Manual page 42

Command - PRST-STO
Command Name
Set: PRST-STO
Get: -
Description
Store current connections,
Set:
volumes and modes in preset
Get: -
Response
~nn@PRST-STO␠ preset␍␊
Parameters
preset - preset number
Notes
In most units, video and audio presets with the same number are stored and recalled together by
commands #PRST-STO and #PRST-RCL
Command - PRST-VID?
Command Name
-
Set:
PRST-VID?
Get:
Description
Set: -
Get video connections from saved
Get:
preset
Response
~nn@PRST-VID␠preset, in>out ␍␊
~nn@PRST-VID␠preset, in>1, in>2, in>3, ... ␍␊
Parameters
preset - preset number
n - input number or '0' if output disconnected
> - connection character between in and out parameters
out - output number or '*' for all outputs
Notes
In most units, video and audio presets with the same number are stored and recalled together by
commands #PRST-STO and #PRST-RCL
Examples
Store current audio and video connections,
volumes and modes to preset 5
Recall audio and video connections from preset 3
Show source of video output 2 from preset 3
VS-88HN - Protocol 3000
Command Type - System
Permission
End User
-
Syntax
#PRST-STO␠preset ␍
-
Command Type - System
Permission
-
End User
Syntax
-
#PRST-VID?␠preset, out␍
#PRST-VID?␠preset, * ␍
#PRST-STO 5␍
#PRCL 3␍
#PRST-VID? 3,2␍
Transparency
Public
-
Transparency
-
Public
~PRST-STO 5␍␊
~PRST-RCL 3␍␊
~PRST-VID 3,
4>2␍␊
