Scan for full manual
Step 1: Check what's in the box

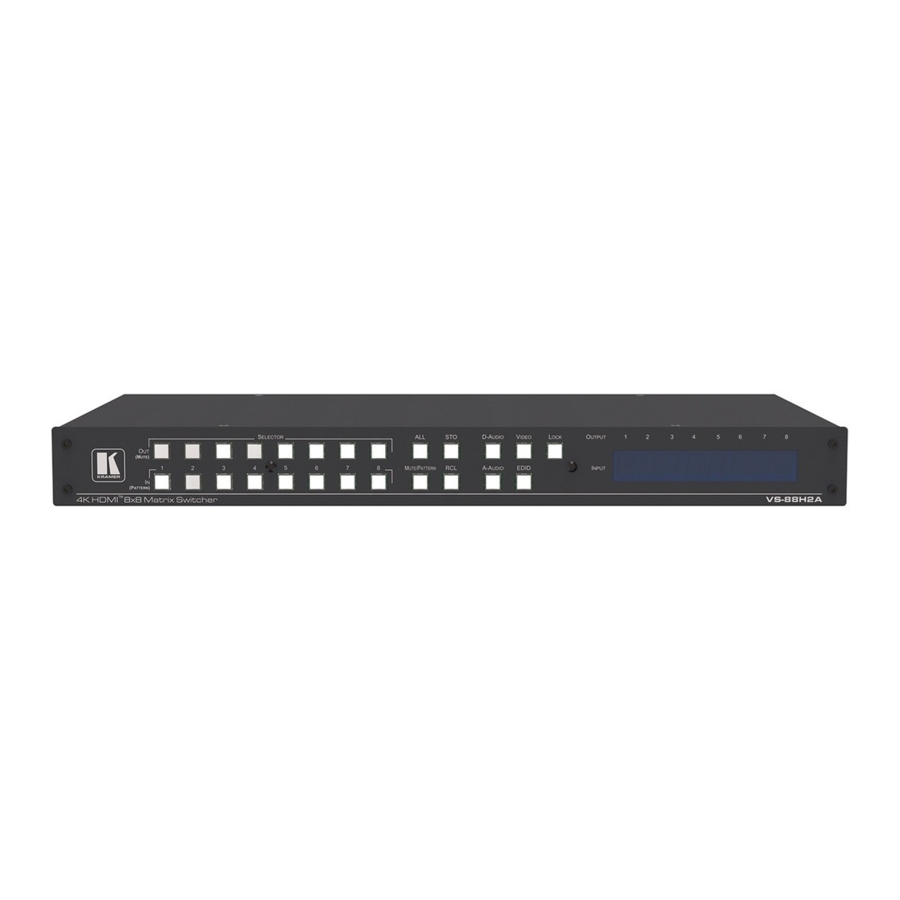

VS-88H2A 4K HDMI 8x8 Matrix Switcher
1 Power cord

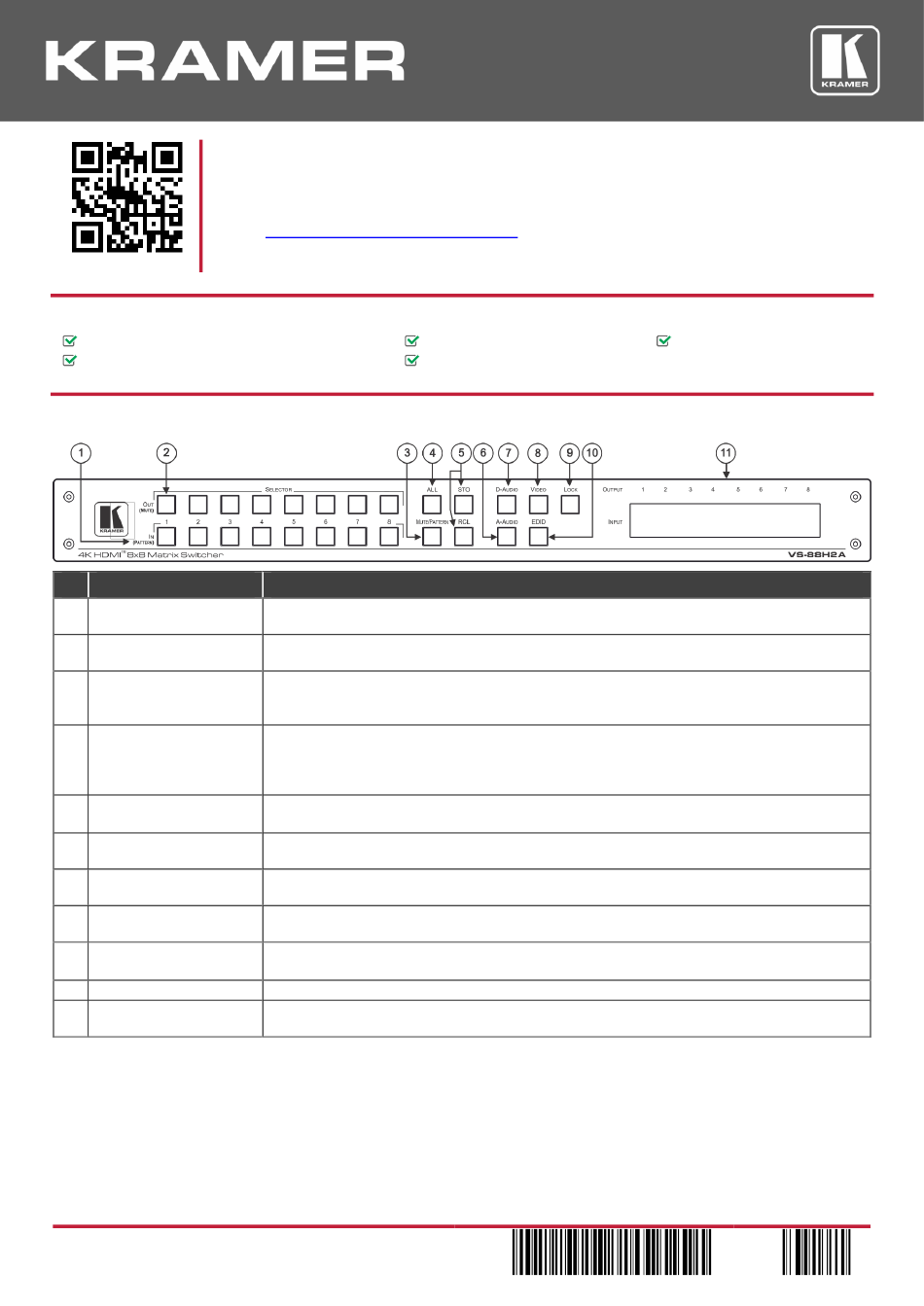

Step 2: Get to know your VS-88H2A
#
Feature
1
IN (PATTERN)
SELECTOR Buttons
2
OUT (MUTE)
SELECTOR Buttons
3
MUTE/PATTERN Button
4
ALL Button
5
STO and RCL Buttons
6
A-AUDIO Button
7
D-AUDIO Button
8
VIDEO Button
9
LOCK Button
10
EDID Button
11
OUTPUT/INPUT
7-segment LED Display
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
VS-88H2A Quick Start
VS-88H2A Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/VS-88H2A
upgrades are available.
Function
Press to select the input (1 to 8) to switch after selecting an output (also used for storing
machine setups in the STO-RCL modes and for selecting a pattern in the Pattern mode).
Press to select an output (1 to 8) to which the input is routed. Also used for storing machine
presets.
Press to view the current pattern status and select the output/s to which a pattern is routed.
Press to mute audio or video on a selected output when D-AUDIO/A-AUDIO, and/or VIDEO
buttons are pressed (lit).
Press to perform an action on all outputs (for example setting Mute mode, Pattern mode and so
on).
For switching, press ALL and then a specific IN button to route the selected input to all outputs.
For example, press ALL and then IN 2 to route input 2 to all the outputs.
Press STO to store the current switching setting to a preset button.
Press RCL to recall the switching setting from a preset button.
Press to enable analog audio routing. When pressed together with VIDEO, the analog audio is
routed together with the video signal.
Press to enable digital audio routing. When pressed together with VIDEO, the digital audio is
routed together with the video signal.
Press to select video inputs. When pressed together with D-AUDIO/A-AUDIO, video is switched
together with audio.
Press and hold to toggle locking/releasing of the front panel buttons.
Press to save the following setups: HDCP (On/Off), ARC, Fast Switch and Switch mode.
Press to capture the EDID.
Displays the selected inputs switched to the outputs (marked above each input).
VS-88H2A
for the first time.
to download the latest user manual and check if firmware
1 Quick start guide
4 Rubber feet
P/N: 2 9 0 0 - 3 0 1 2 9 2 QS
1 Set of rack ears
Rev: 1
Advertisement
Table of Contents
Related Manuals for Kramer VS-88H2A
Summary of Contents for Kramer VS-88H2A
- Page 1 1 Quick start guide 1 Set of rack ears 1 Power cord 4 Rubber feet Step 2: Get to know your VS-88H2A Feature Function IN (PATTERN) Press to select the input (1 to 8) to switch after selecting an output (also used for storing SELECTOR Buttons machine setups in the STO-RCL modes and for selecting a pattern in the Pattern mode).
- Page 2 Step 4: Connect the inputs and outputs Always switch OFF the power on each device before connecting it to your VS-88H2A. For best results, we recommend that you always use Kramer high-performance cables to connect AV equipment to the VS-88H2A.
- Page 3 Green Brown / White connected/soldered to the connector Brown shield. For optimum range and performance use the recommended Kramer cables available at www.kramerav.com/product/VS-88H2A. Using third-party cables may cause damage! Step 5: Connect the power Connect the power cord to VS-88H2A and plug it into the mains electricity.
- Page 4 Press MUTE/PATTERN. The 7-segment LED flashes and shows “d”. Press EDID. Wait approx. 5 seconds. The default EDID is copied to the input port/s and the device exits EDID mode. To use the VS-88H2A Web pages Switching: Set input and output parameters (HDCP support, switching speed, and so on), select switching modes, set test patterns, perform switching operations, and so on.
