Step 1: Check what's in the box

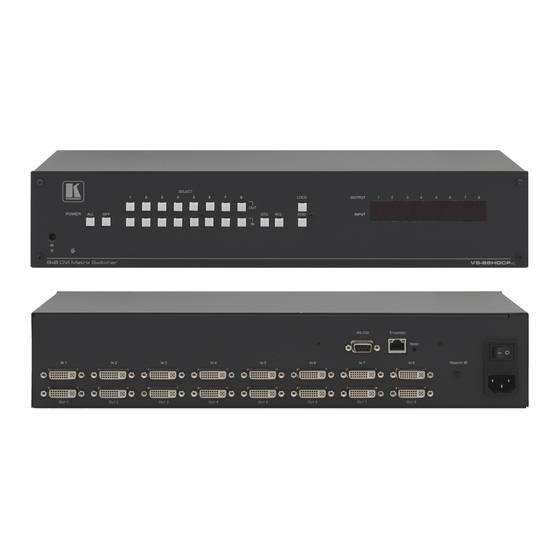

VS-88HDCPXL 8x8 DVI Matrix Switcher
Kramer RC-IR3 Infrared Remote Control
Transmitter with batteries and user manual

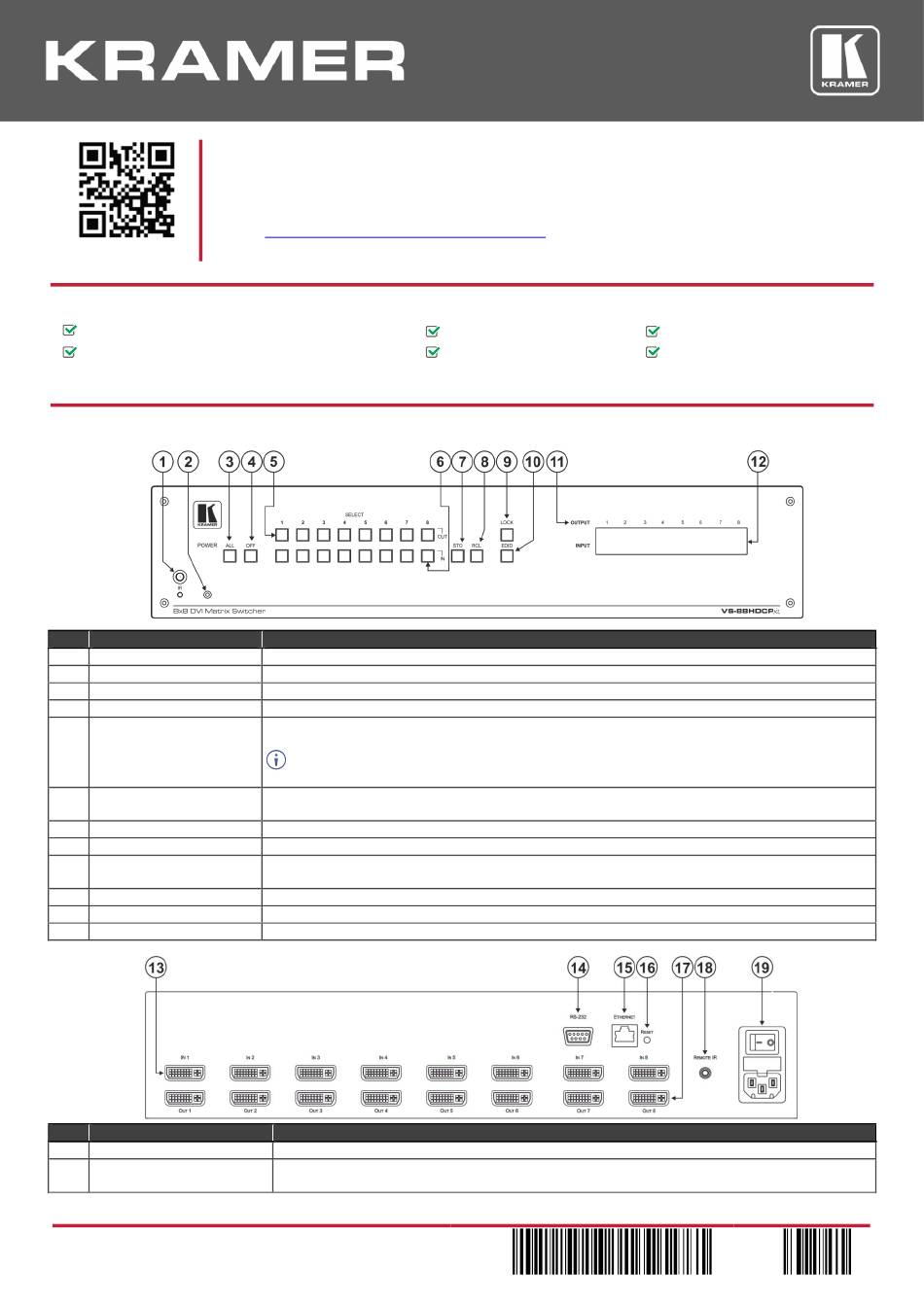

Step 2: Get to know your VS-88HDCPXL

Front Panel
#
Feature
1
IR Receiver and LED
2
POWER LED
3
ALL Button
4
OFF Button
5
SELECT OUT Buttons
6
SELECT IN Buttons
7
STO Button
8
RCL Button
9
LOCK Button
10
EDID Button
11
OUTPUT 1 to 6
12
INPUT 7-segment Display Number shown on the display indicates the relevant input channel
Rear Panel
#
Feature
13
INPUT DVI Connectors
14
RS-232 9-pin D-sub (F)
Connector
VS-88HDCPXL Quick Start
VS-88HDCPXL Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/VS-88HDCPXL
firmware upgrades are available.
Function
IR remote control sensor. LED lights yellow when receiving an IR signal
Lights green when the unit is turned on
Press to select all inputs or all outputs
Press to disconnect one or all outputs
Press to select an output (from 1 to 8)
Note that when a sink is connected to an output, that output button lights
If a screen that does not support HDCP is connected to an output, the button of that output
may possibly remain unlit
Press to select an input (from 1 to 8)
Note that when there is a live signal at an input, that input button lights
Press to store a switching configuration
Press to recall a switching configuration
Press and hold to lock the front panel buttons and to acquire the EDID.
Press and hold a second time to unlock the front panel buttons
Press to acquire the EDID
Indicates the output channels and their respective input selections on the 7-segment display
Function
Connect to the DVI sources (from 1 to 8)
Connect to a PC or the serial remote controller
VS-88HDCPXL
for the first time.
to download the latest user manual and check if
1 Set of rack ears
1 Power cord
P/N: 2 9 0 0 - 3 0 1 2 5 7 QS
4 Rubber feet
1 Quick start guide
Rev: 5
