Kramer VS-88H2 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

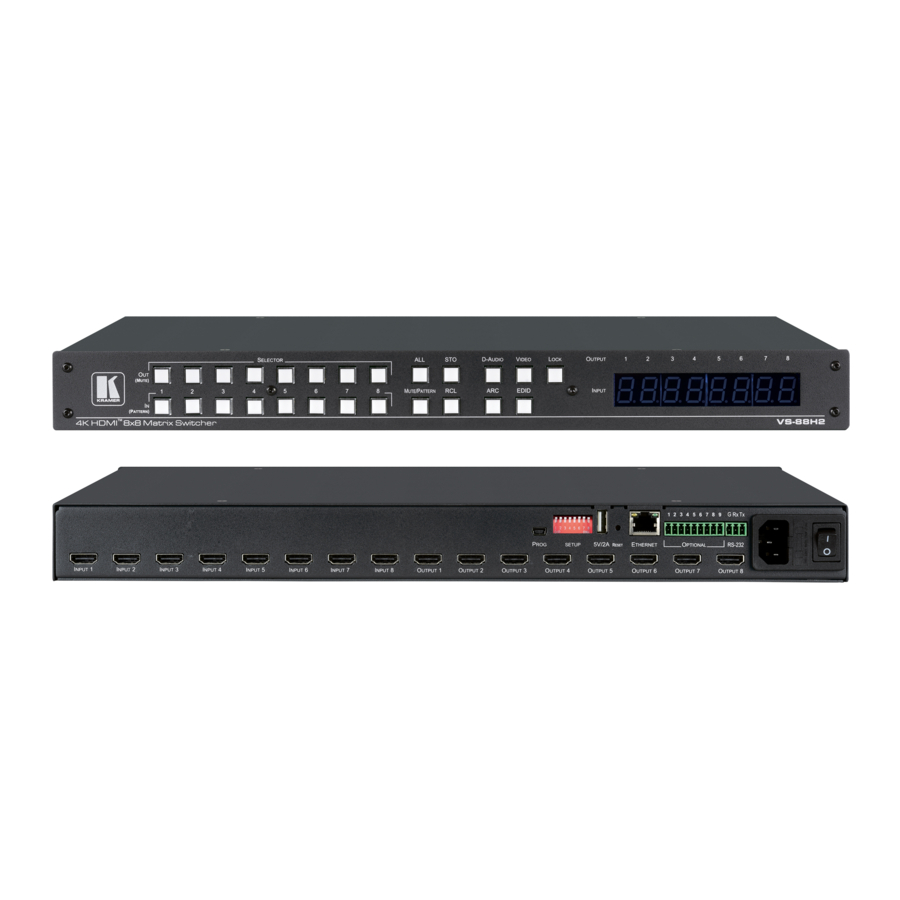

VS-88H2 4K HDMI 8x8 Matrix Switcher
1 Power cord

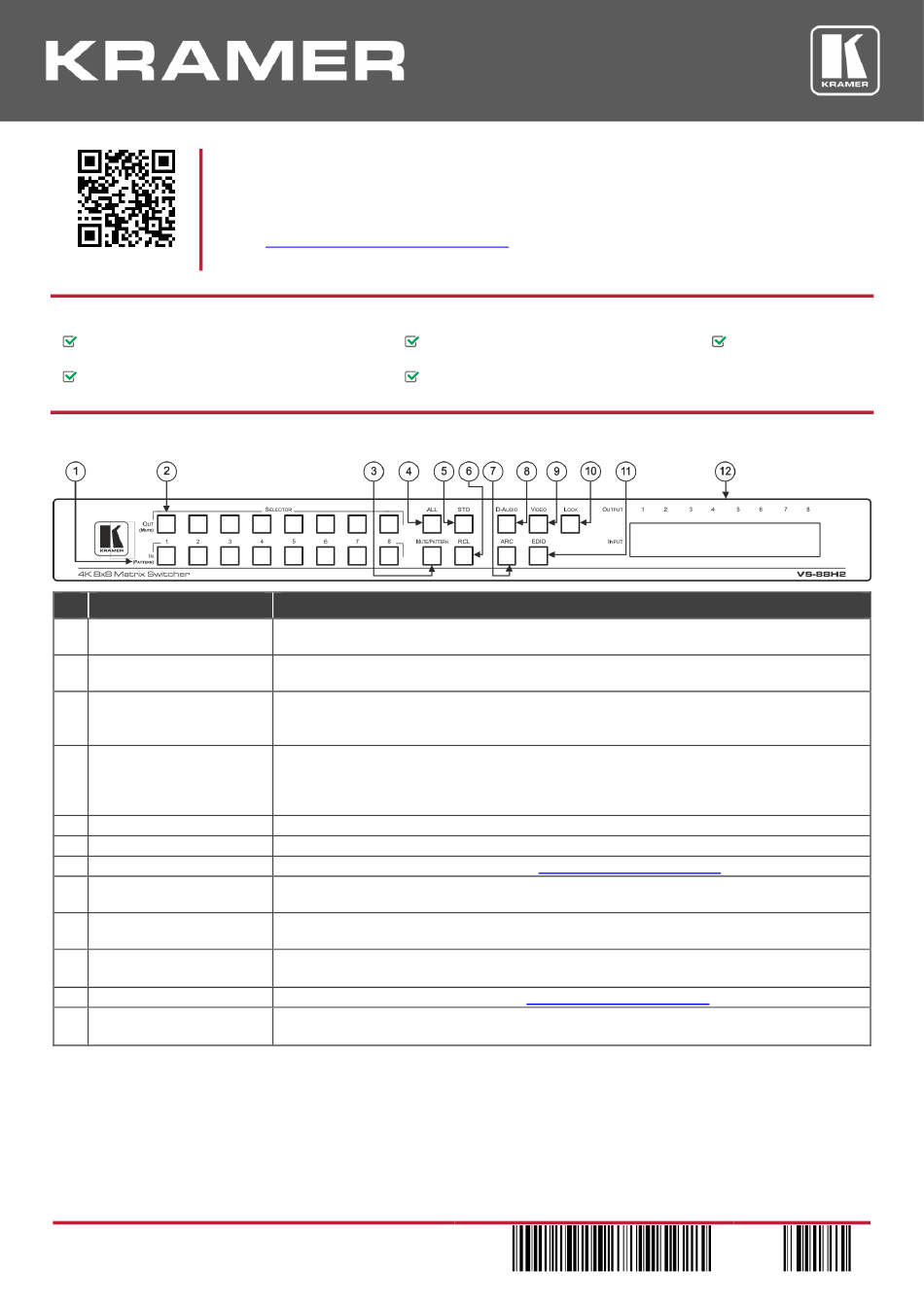

Step 2: Get to know your VS-88H2
# Feature
1 IN SELECTOR Buttons
2 OUT SELECTOR Buttons
3 MUTE/PATTERN Button
4 ALL Button
5 STO Button
6 RCL Button
7 ARC
8 D-AUDIO Button
9 VIDEO Button
10 LOCK Button
11 EDID Button
12 OUTPUT/INPUT
7-segment LED Display
VS-88H2 Quick Start
VS-88H2 Quick Start Guide
This guide helps you install and use your VS-88H2 for the first time.
Go to www.kramerav.com/downloads/VS-88H2
upgrades are available.
Function
Press to select the input (1 to 8) to switch after selecting an output (also used for storing
machine setups in the STO-RCL modes and for selecting a pattern in the Pattern mode).
Press to select an output (1 to 8) to which the input is routed. Also used for storing machine
presets.
Press to view the current pattern status and select the output/s to which a pattern is routed.
Press to mute audio or video on a selected output when D-AUDIO and/or VIDEO buttons are
pressed (lit).
Press to perform an action on all outputs (for example setting Mute mode, Pattern mode and
so on).
For switching, press ALL and then a specific IN button to route the selected input to all
outputs. For example, press ALL and then IN 2 to route input 2 to all the outputs.
Press STO to store the current switching setting to a preset button.
Press RCL to recall the switching setting from a preset button.
For setting ARC mode on the inputs (see
Press to enable digital audio routing. When pressed together with VIDEO, the digital audio is
routed together with the video signal.
Press to select video inputs. When pressed together with D-AUDIO, video is switched
together with audio.
Press and hold to toggle between locking and releasing the front panel buttons.
Press to save the following setups: HDCP (On/Off), ARC, Fast Switch and Switch mode.
For setting the EDID on the inputs (see
Displays the selected inputs switched to the outputs (marked above each input).
to download the latest user manual and check if firmware
1 Quick start guide
4 Rubber feet
Step 6: Operate the
Step 6: Operate the
P/N: 2 9 0 0 - 3 0 1 1 5 0 QS
1 Set of rack
ears
VS-88H2).
VS-88H2).
Rev: 1
