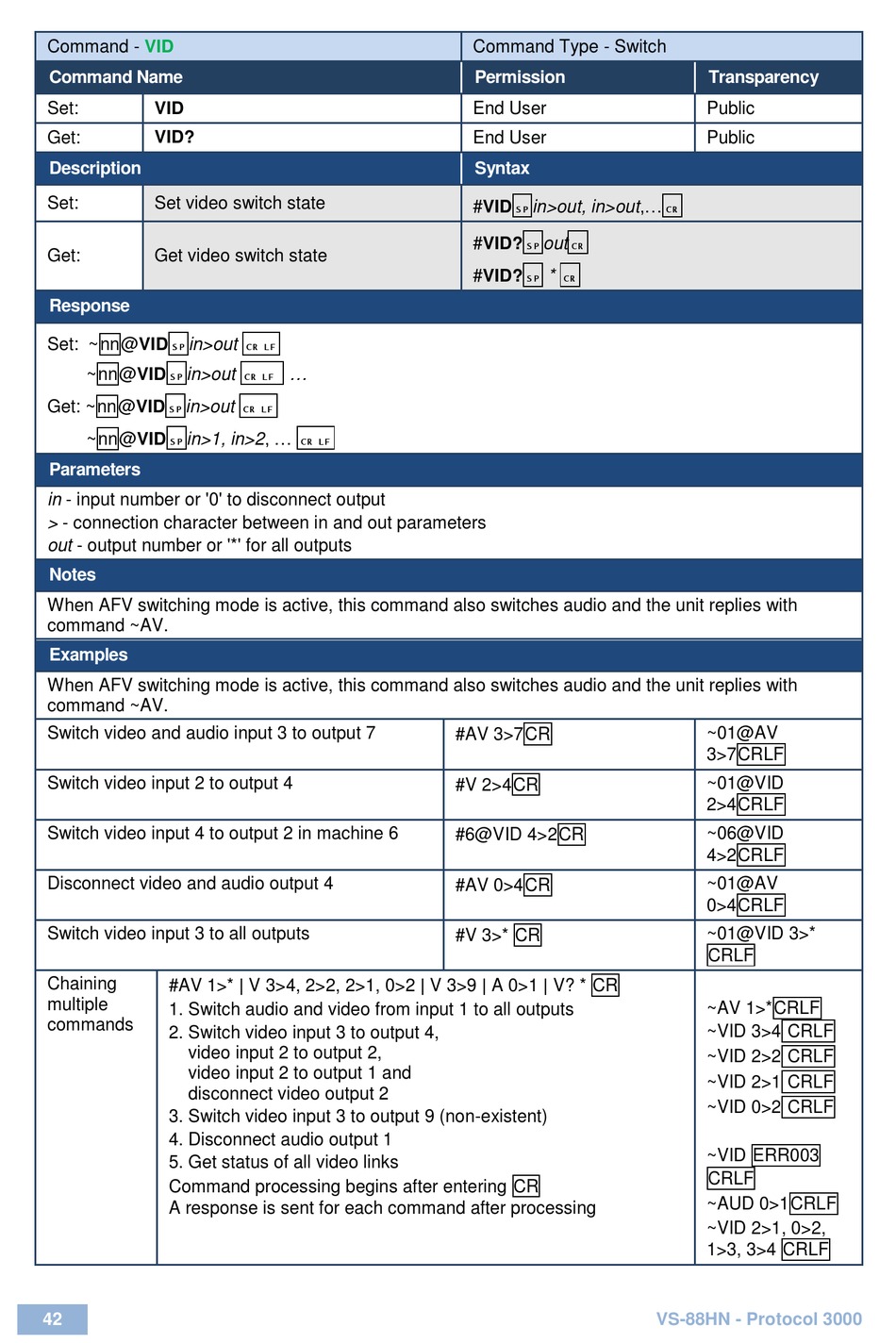

Command - VID
Command Name
Set: VID
Get: VID?
Description
Set: Set video switch state
Get: Get video switch state
Response
Set: ~nn@VID␠in>out ␍␊
~nn@VID␠in>out ␍␊ ...
Get: ~nn@VID␠in>out ␍␊
~nn@VID␠in>1, in>2, ... ␍␊
Parameters
in - input number or '0' to disconnect output
> - connection character between in and out parameters
out - output number or '*' for all outputs
Notes
When AFV switching mode is active, this command also switches audio and the unit replies with
command ~AV.
Examples
When AFV switching mode is active, this command also switches audio and the unit replies with
command ~AV.
Switch video and audio input 3 to output 7
Switch video input 2 to output 4
Switch video input 4 to output 2 in machine 6
Disconnect video and audio output 4
Switch video input 3 to all outputs
Chaining
#AV 1>* | V 3>4, 2>2, 2>1, 0>2 | V 3>9 | A 0>1 | V? * CR
multiple
1. Switch audio and video from input 1 to all outputs
commands
2. Switch video input 3 to output 4,
video input 2 to output 2,
video input 2 to output 1 and
disconnect video output 2
3. Switch video input 3 to output 9 (non-existent)
4. Disconnect audio output 1
5. Get status of all video links
Command processing begins after entering CR
A response is sent for each command after processing
42
Command Type - Switch
Permission
End User
End User
Syntax
#VID␠in>out, in>out,...␍
#VID?␠out␍
#VID?␠ * ␍
#AV 3>7CR
#V 2>4CR
#6@VID 4>2CR
#AV 0>4CR
#V 3>* CR
Transparency
Public
Public
~01@AV
3>7CRLF
~01@VID
2>4CRLF
~06@VID
4>2CRLF
~01@AV
0>4CRLF
~01@VID 3>*
CRLF
~AV 1>*CRLF
~VID 3>4 CRLF
~VID 2>2 CRLF
~VID 2>1 CRLF
~VID 0>2 CRLF
~VID ERR003
CRLF
~AUD 0>1CRLF
~VID 2>1, 0>2,
1>3, 3>4 CRLF
VS-88HN - Protocol 3000
