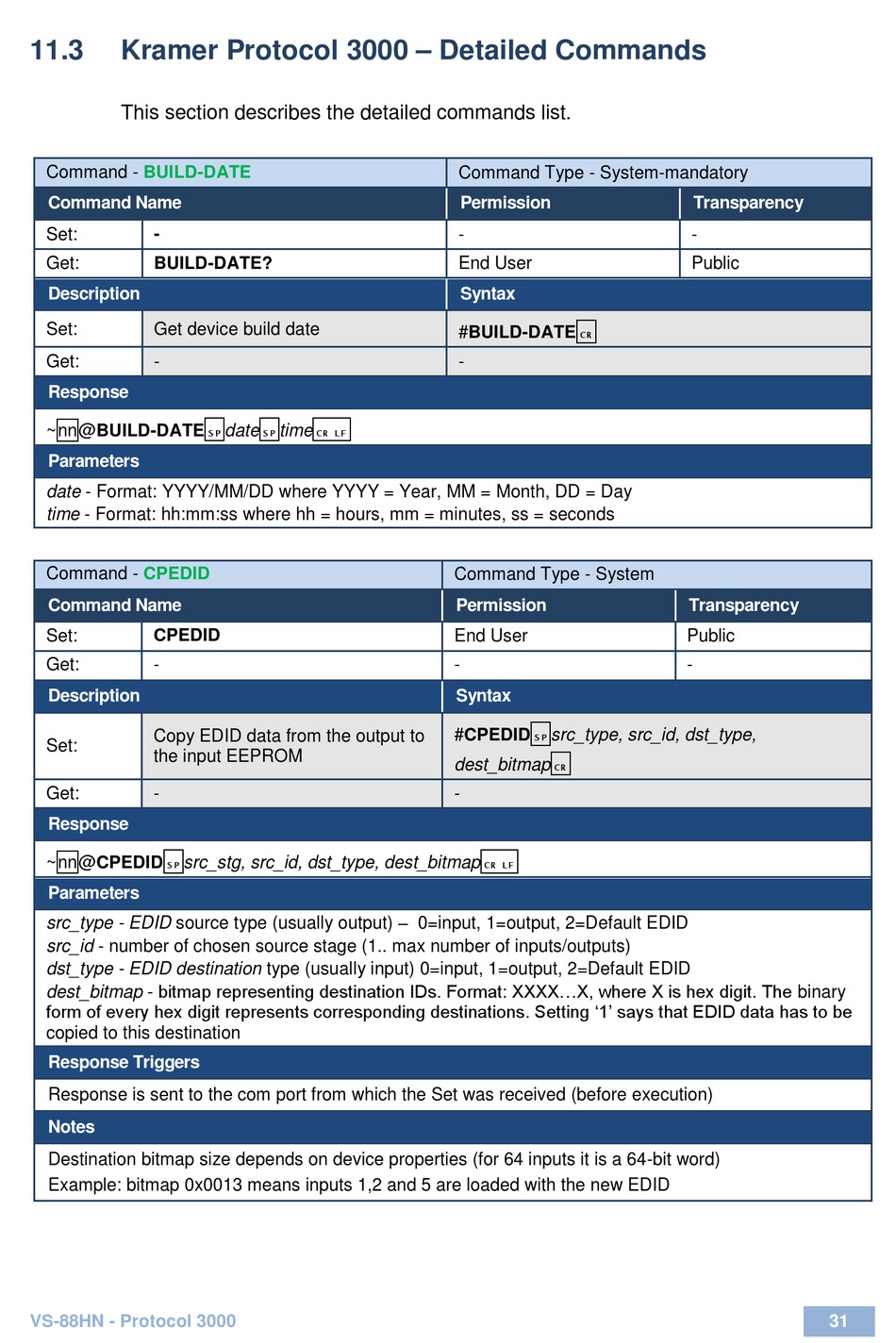

Kramer Protocol 3000 – Detailed Commands
11.3
This section describes the detailed commands list.
Command - BUILD-DATE
Command Name
Set: -
Get: BUILD-DATE?
Description
Set: Get device build date
Get: -
Response
~nn@BUILD-DATE␠date␠time␍␊
Parameters
date - Format: YYYY/MM/DD where YYYY = Year, MM = Month, DD = Day
time - Format: hh:mm:ss where hh = hours, mm = minutes, ss = seconds
Command - CPEDID
Command Name
Set: CPEDID
Get: -
Description
Copy EDID data from the output to
Set:
the input EEPROM
Get: -
Response
~nn@CPEDID␠src_stg, src_id, dst_type, dest_bitmap␍␊
Parameters
src_type - EDID source type (usually output) – 0=input, 1=output, 2=Default EDID
src_id - number of chosen source stage (1.. max number of inputs/outputs)
dst_type - EDID destination type (usually input) 0=input, 1=output, 2=Default EDID
dest_bitmap - bitmap representing destination IDs. Format: XXXX...X, where X is hex digit. The binary
form of every hex digit represents corresponding destinations. Setting '1' says that EDID data has to be
copied to this destination
Response Triggers
Response is sent to the com port from which the Set was received (before execution)
Notes
Destination bitmap size depends on device properties (for 64 inputs it is a 64-bit word)
Example: bitmap 0x0013 means inputs 1,2 and 5 are loaded with the new EDID
VS-88HN - Protocol 3000
Command Type - System-mandatory
Permission
-
End User
Syntax
#BUILD-DATE␍
-
Command Type - System
Permission
End User
-
Syntax
#CPEDID␠src_type, src_id, dst_type,
dest_bitmap␍
-
Transparency
-
Public
Transparency
Public
-
