UG-159

EVALUATION BOARD SOFTWARE

The control software for the
the EV-ADF4106SD1Z on a CD. To install the software, see the
Software Installation section.
To run the software, click the ADI PLL Int-N file on the
desktop or in the Start menu.
On the Select Device and Connection tab, choose your device
and your connection method, and click Connect.
Confirm that SDP board connected, ADF4xxx USB Adapter
Board connected, or Analog Devices RFG.L Eval Board
EV-ADF4106SD1Z accompanies

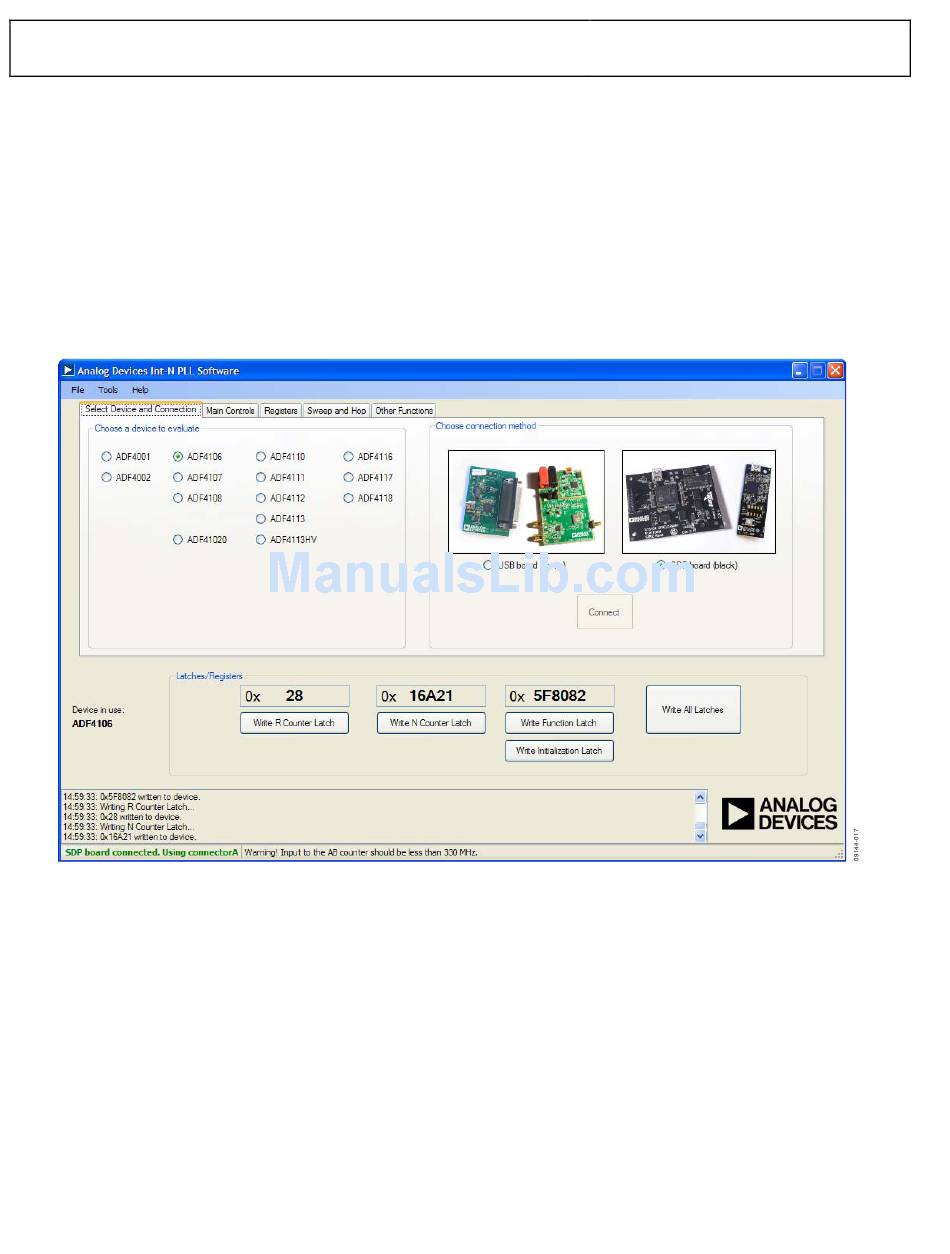

Figure 17. Software Front Panel Display—Select Device and Connection
connected is displayed at the bottom left of the window (see
Figure 17). Otherwise, the software has no connection to the
evaluation board.
Note that, when connecting the board, it takes about 5 sec to
10 sec for the status label to change.
Under the File menu, the current settings can be saved to, and
loaded from, a text file.
Rev. A | Page 10 of 24
Evaluation Board User Guide
