UG-159

EVALUATION AND TEST

To evaluate and test the performance of the ADF4106, use the
following procedure:
1. Install the SDP-S software drivers. Connect the evaluation
board to a PC using the supplied USB cable. Follow the
hardware driver installation procedure that appears.
2. Connect the SDP-S connector to the EV-ADF4106SD1Z.
3. Connect a spectrum analyzer to Connector J2.
4. Run the Int-N software.
5. Select the SDP board and the
Device and Connection tab of the software front panel
window.
6. In the software window, set the VCO center frequency
(Figure 19 uses a 5800 MHz VCO). Set the PFD frequency
to 1000 kHz, and program the reference frequency to equal
that supplied to Connector J11 (or the TCXO). See Figure 20
for the suggested setup.
7. Measure the output spectrum. Figure 19 shows a 5800 MHz
output.
PC
POWER
SUPPLIES
ADF4106 device in the Select
EXTERNAL DC
GND
EXTERNAL DC
SUPPLY
EXTERNAL
POWER
SWITCH
PLL
POWER
LED

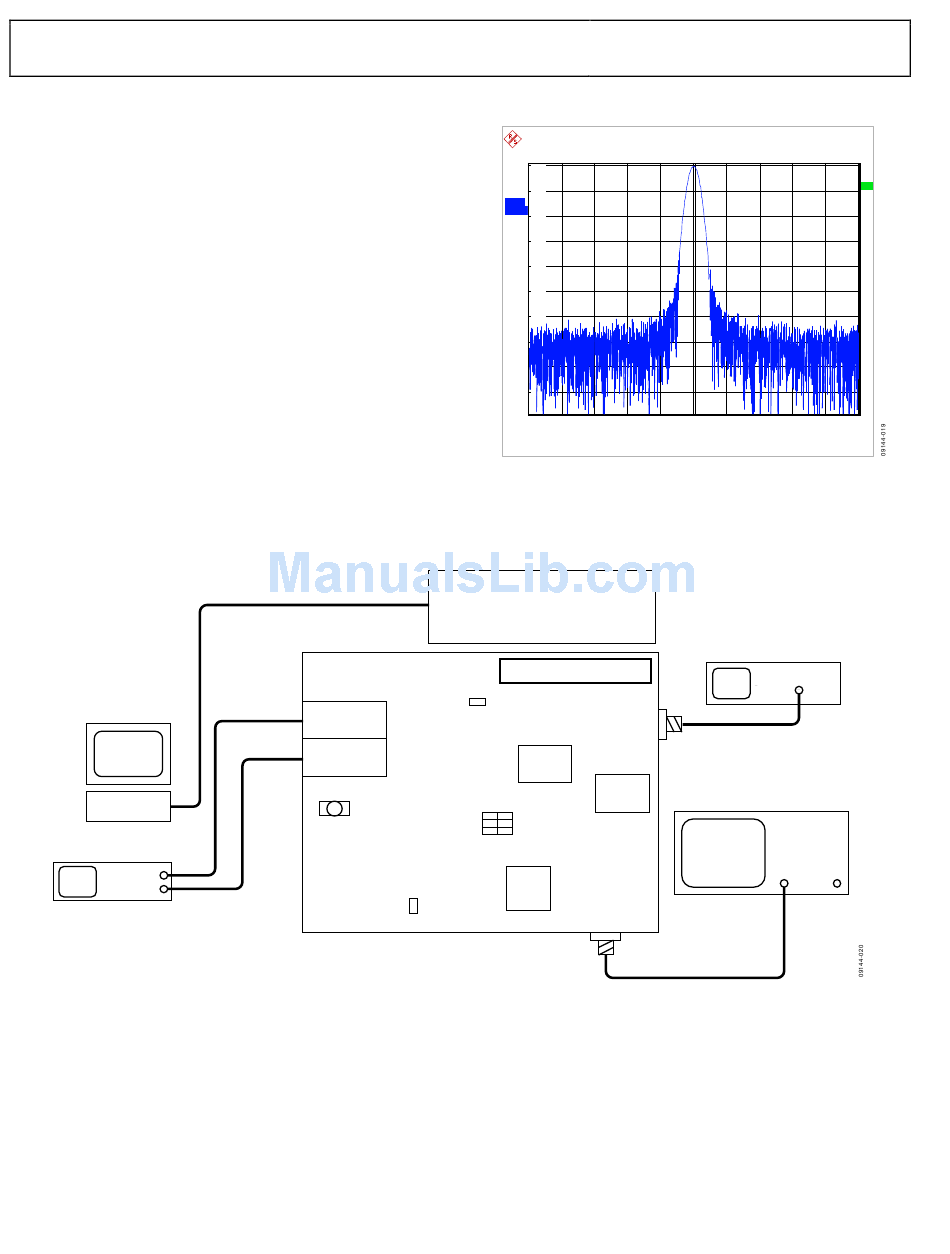

Figure 20. Typical Evaluation Setup
Rev. A | Page 12 of 24
Evaluation Board User Guide
Ref -8.9 dBm
-10
-20
1 AP
CLRWR
-30
-40
-50
-60
-70
-80
-90
-100
Center 5.8 GHz
low
Date: 29.NOV.2011 18:39:36
Figure 19. Spectrum Analyzer Display
SDP-S BOARD
SDP CONNECTOR
LOCK DETECT LED
PLL
LOOP TCXO
FILTER
VCO
RBW 50 kHz
VBW 200 kHz
Att 20 dB SWT 20 ms
200 kHz/
SIGNAL
GENERATOR
REFERENCE IN/
REFERENCE OUT
SPECTRUM
ANALYZER
A
3DB
Span 2 MHz
