DEFINITY® Enterprise Communications Server Release 7
Console Operations 555-230-700
2
Understanding the Console Layout
Physical Layout of Your Console

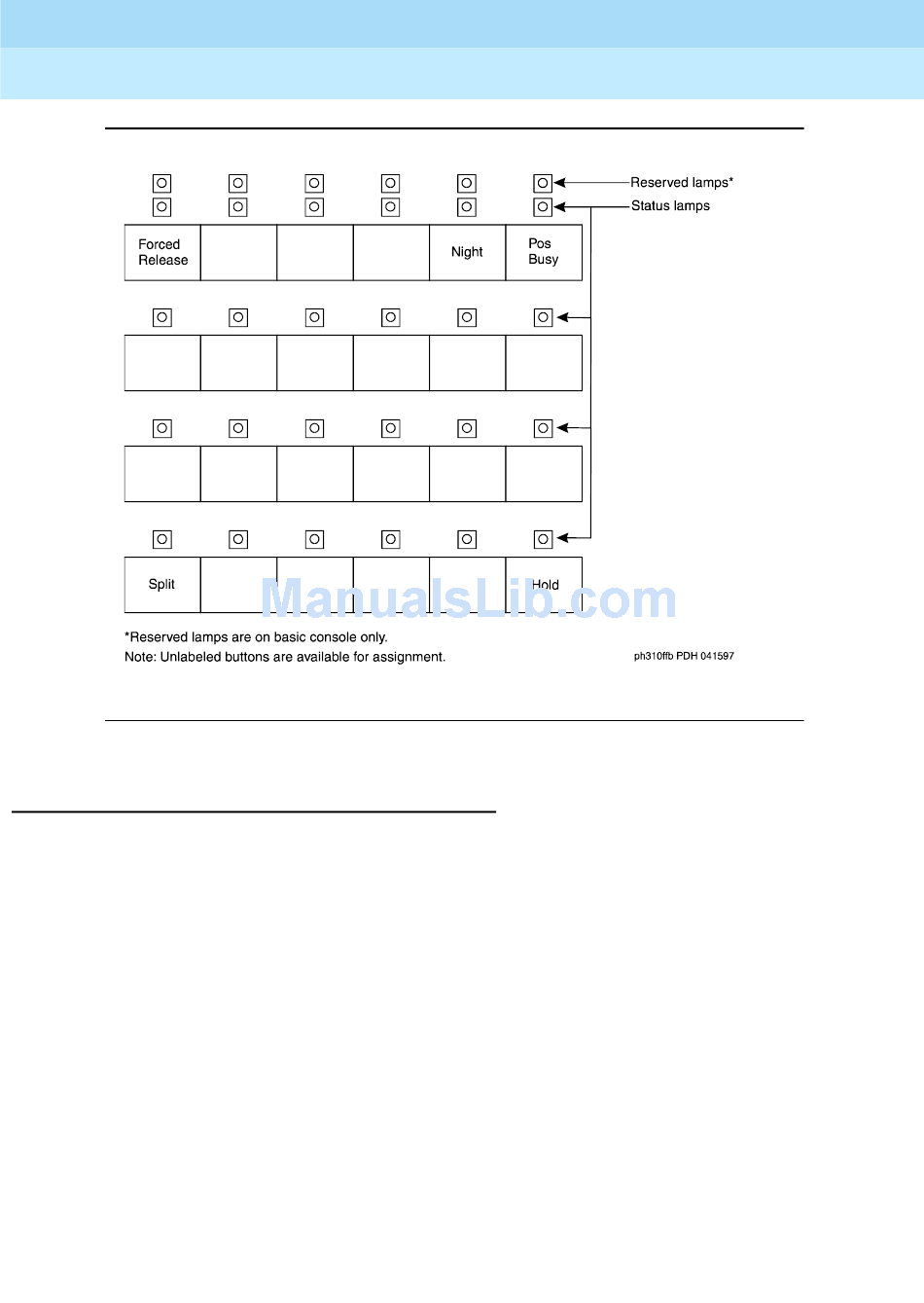

Figure 6. Feature Button Area
The Display
The alphanumeric display provides information about callers, called parties, call
status, and call features. Your console has 9 buttons in the display area that
function as different modes for viewing information. On the basic console, they
are located on the display module. On the enhanced console, they are located on
the main console.
Issue 4
June 1999
12
