Roundshot VR Drive Instruction Manual page 94

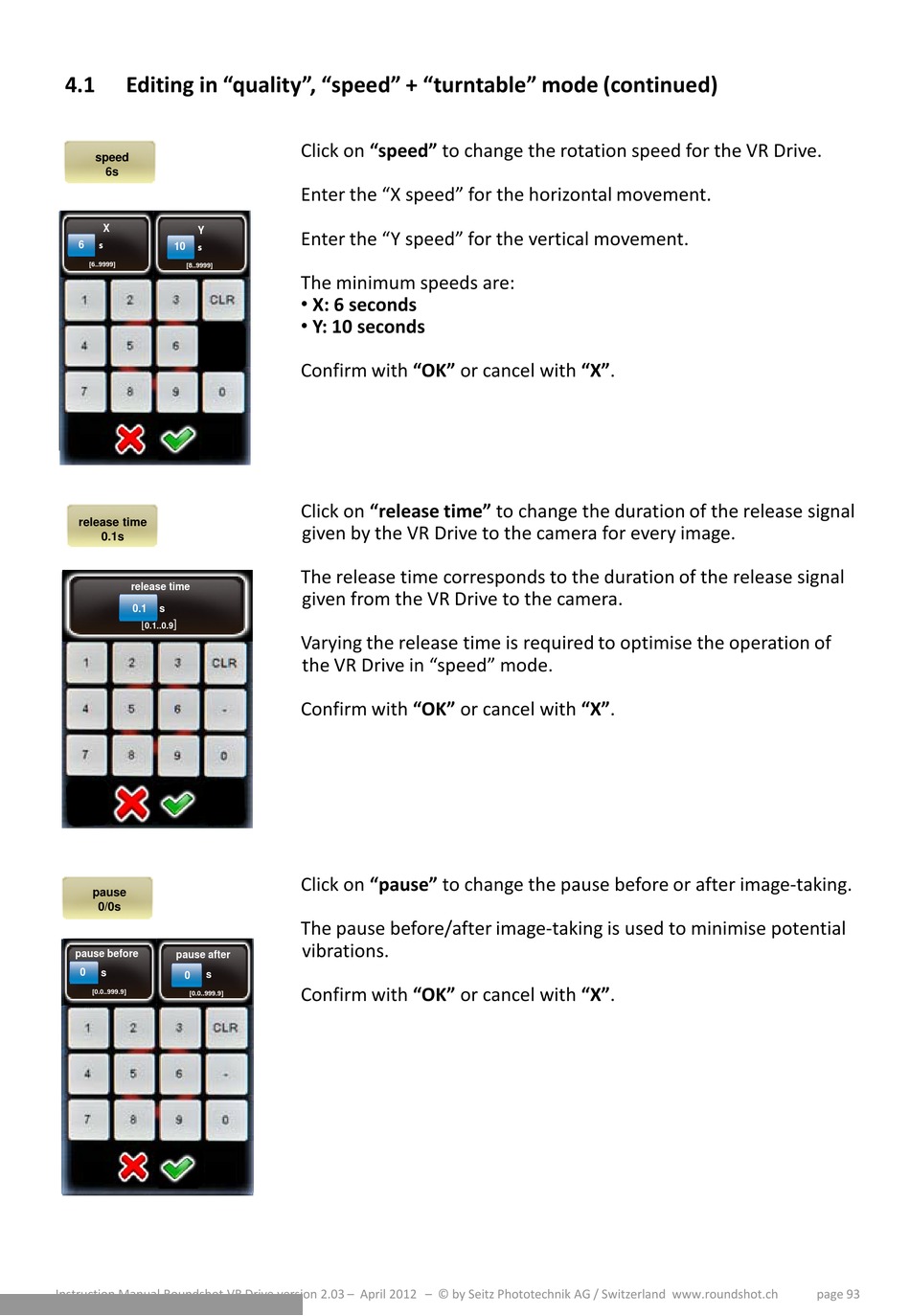

4.1 Editing in "quality", "speed" + "turntable" mode (continued)
speed
6s
X
Y
s
6 s
10
[6..9999]
[8..9999]
release time
0.1s
release time
0.1 s
[ ]
0.1..0.9
pause
0/0s
pause before
pause after
elev.
images

0 s
0
s
0
7
[0.0..999.9]
[-90..90]
[0.0..999.9]
[1..9999]
Instruction Manual Roundshot VR Drive version 2.03 – April 2012 – © by Seitz Phototechnik AG / Switzerland www.roundshot.ch
Click on "speed" to change the rotation speed for the VR Drive.
Enter the "X speed" for the horizontal movement.
Enter the "Y speed" for the vertical movement.
The minimum speeds are:
• X: 6 seconds
• Y: 10 seconds
Confirm with "OK" or cancel with "X".
Click on "release time" to change the duration of the release signal
given by the VR Drive to the camera for every image.
The release time corresponds to the duration of the release signal
given from the VR Drive to the camera.
Varying the release time is required to optimise the operation of
the VR Drive in "speed" mode.
Confirm with "OK" or cancel with "X".
Click on "pause" to change the pause before or after image-taking.
The pause before/after image-taking is used to minimise potential
vibrations.
Confirm with "OK" or cancel with "X".
page 93
