Roundshot VR Drive Instruction Manual page 22

2.1.4 Special hardware assembly options (continued)

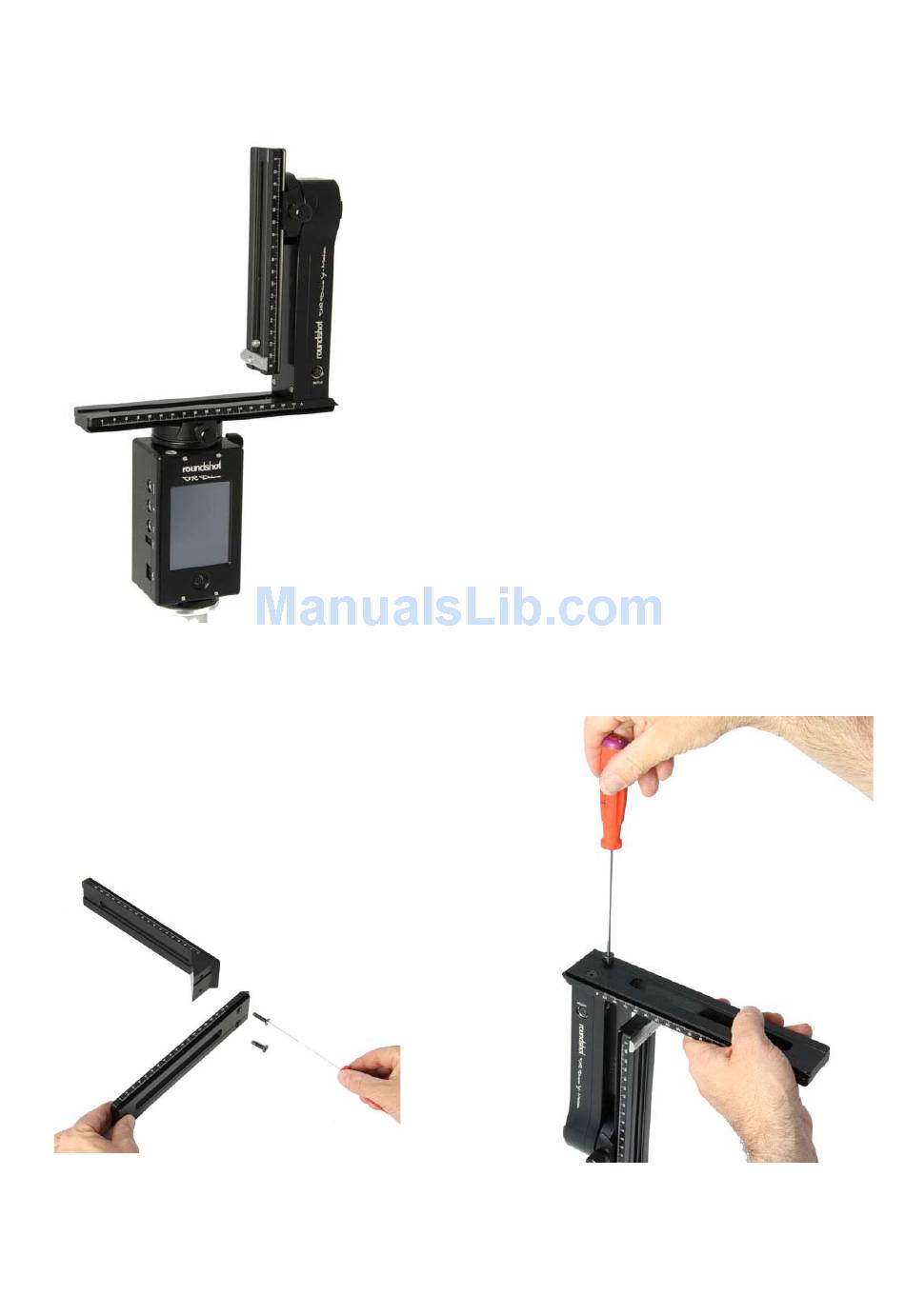

Fix VR Drive y-motor directly on lower
bracket for compact cameras (greater
stability).
The VR bracket can be disassembled
by loosening the two screws below.
Instruction Manual Roundshot VR Drive version 2.03 – April 2012 – © by Seitz Phototechnik AG / Switzerland www.roundshot.ch
It is then possible to attach the VR Drive y-
motor directly on the lower VR bracket using
the two screws.
page 21
