Roundshot VR Drive Instruction Manual page 25

2.1.5 Radio control unit (continued)

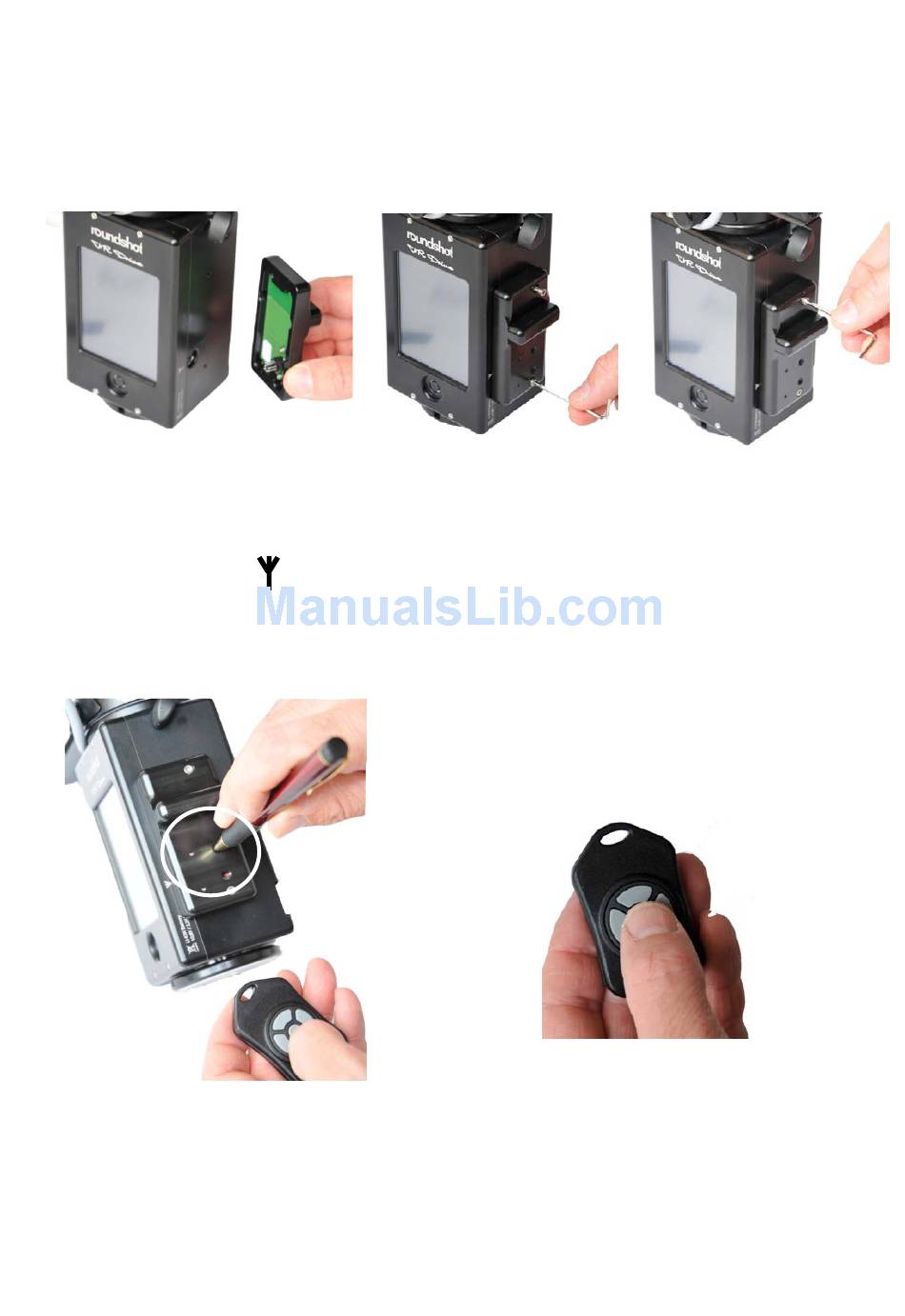

Attach the radio receiver in the following way:
Insert the radio receiver
pins into the plug
marked with the
antenna symbol:
Now press a sharp item (for example a
pen) into the sync contact in the
middle of the radio receiver.
Instruction Manual Roundshot VR Drive version 2.03 – April 2012 – © by Seitz Phototechnik AG / Switzerland www.roundshot.ch
Insert the lower screw
and attach it with the
allen key.
Then press the "OK" button of the radio
sender. This will synchronise the radio
signal between sender and receiver.
Insert the upper screw
and attach it with the
allen key.
