2.1 Setting up the VR Drive hardware (continued)

2.1.1 Roundshot VR Drive "full"

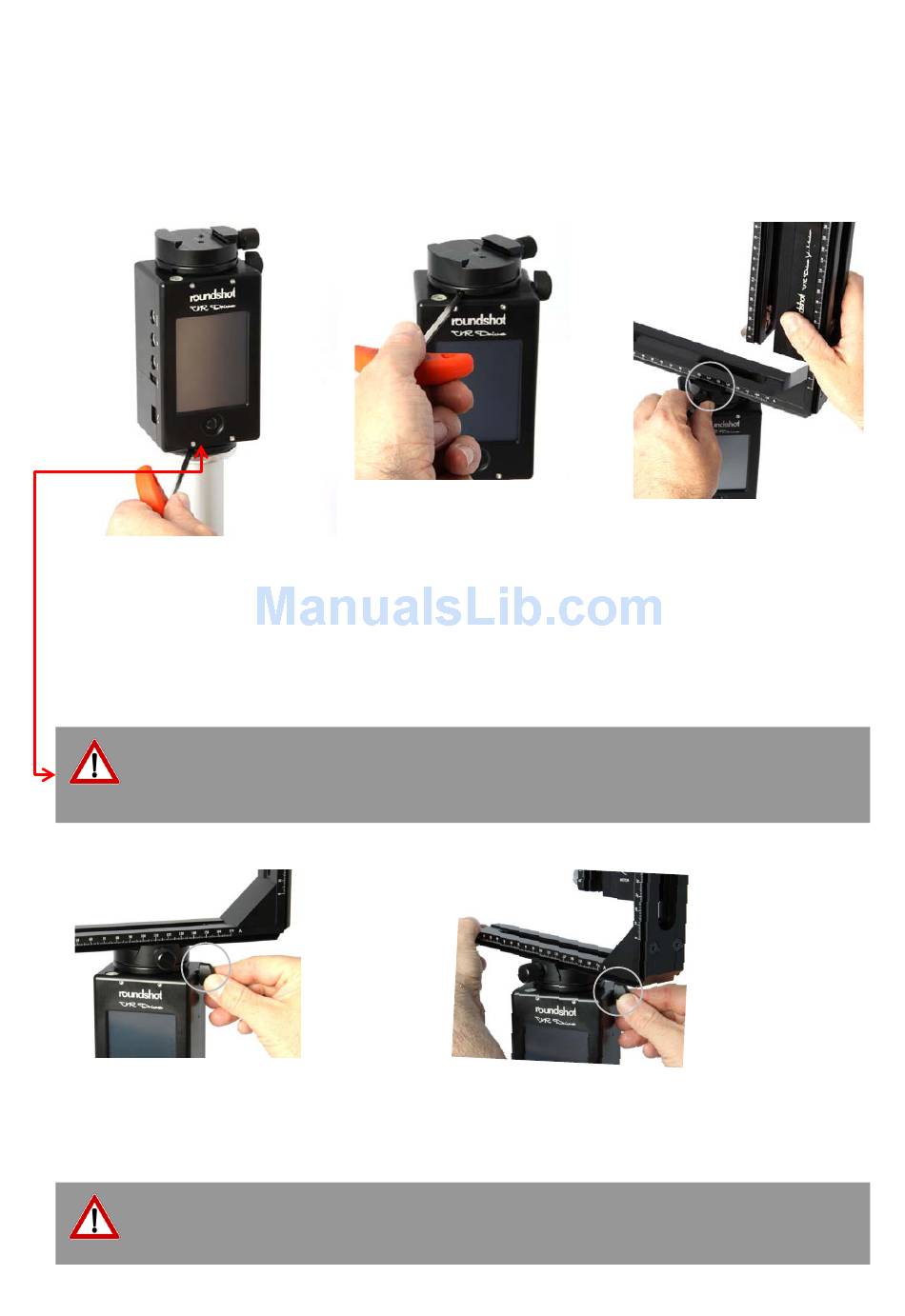

Assemble your VR Drive "full" in the following way:
Place the VR Drive x-motor on
a tripod with a large (3/8'')
thread. When using a tripod
with small thread (1/4'') use
an adaptor ring inside the VR
Drive motor base.
To avoid damage to the VR Drive gears we recommend that you attach the VR
Drive gently by hand and then lock it using the allen key. The same is true when
removing the VR Drive from the tripod.
Open the quick adaptor release
and turn the VR bracket in position.
Do not turn the VR bracket, when the quick adaptor is locked. Due to the high
leverage the VR Drive motor and the gears can be damaged.
Instruction Manual Roundshot VR Drive version 2.03 – April 2012 – © by Seitz Phototechnik AG / Switzerland www.roundshot.ch
When the VR Drive locks up
very tightly on the tripod, it
can be released with the
allen key
Close the quick adaptor release
tightly.
Slide the VR bracket with
attached y-motor into the
quick adaptor and close
the quick adaptor lock
tightly.
page 12
