2.1.1 Roundshot VR Drive "full" (continued)

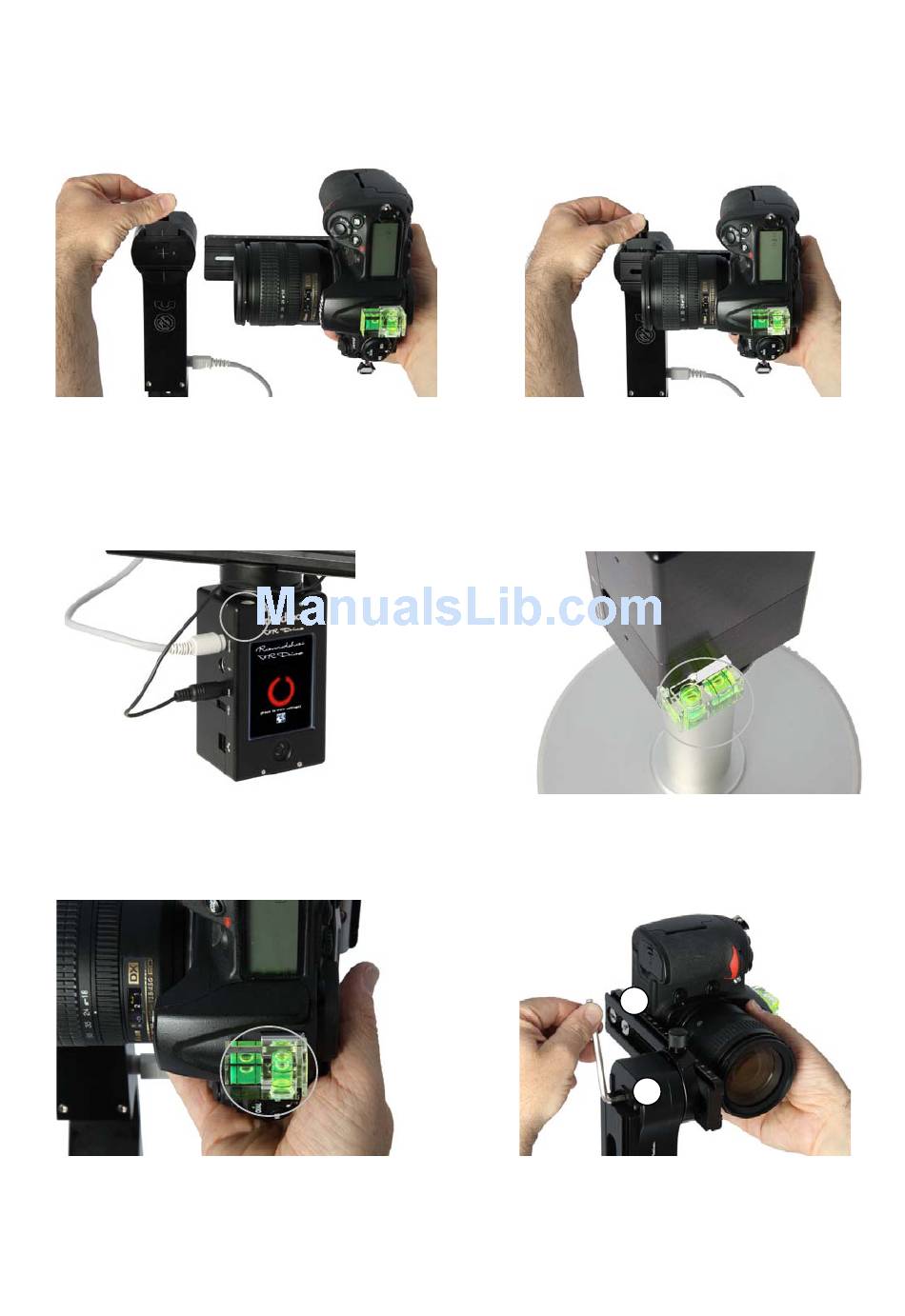

Slide the camera with the nodal rail
into the nodal rail clamp.
Check if the VR Drive x-motor is level
using the spirit level on the motor.
Now check that the camera is exactly
level using the spirit level.
Instruction Manual Roundshot VR Drive version 2.03 – April 2012 – © by Seitz Phototechnik AG / Switzerland www.roundshot.ch
Close the nodal rail clamp lock.
You can also attach the spirit level at the
side of the x-motor.
A
B
It is possible to level the camera either
using the nodal rail screw (A) or by fine-
tuning the nodal rail clamp (B).
