2.1.5 Radio control unit

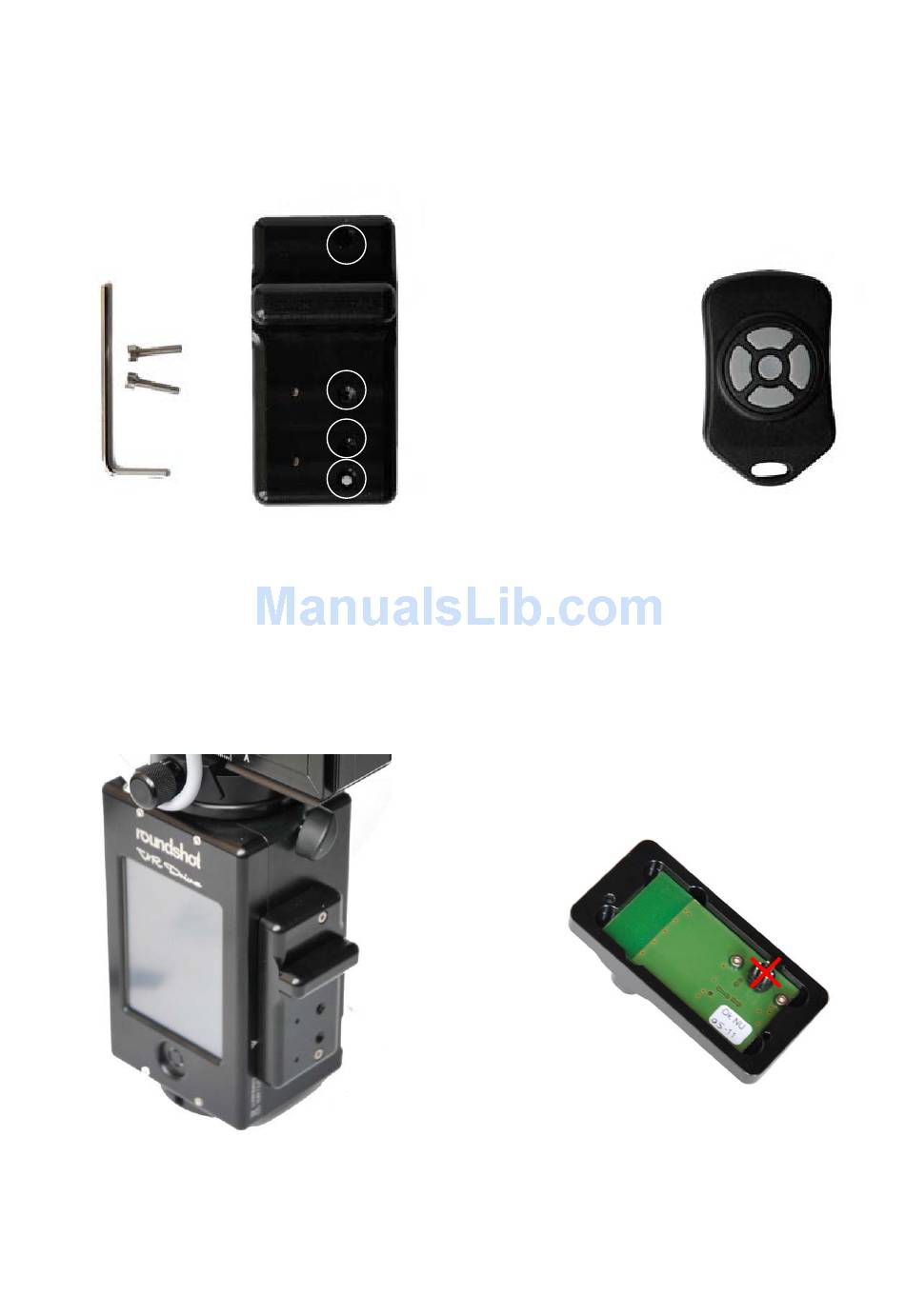

The radio control unit consists of the following parts:
Allen key with
screws
With the VR Drive delivery the radio control
unit is already attached on the VR Drive.
It does not have to be removed.
Instruction Manual Roundshot VR Drive version 2.03 – April 2012 – © by Seitz Phototechnik AG / Switzerland www.roundshot.ch
Socket for upper screw
Sync contact
Red LED
Socket for lower screw
Radio receiver
(on VR Drive)
When separated from VR Drive never
place the radio receiver on the
connector pins as they are fragile.
Radio sender
(remote)
page 23
