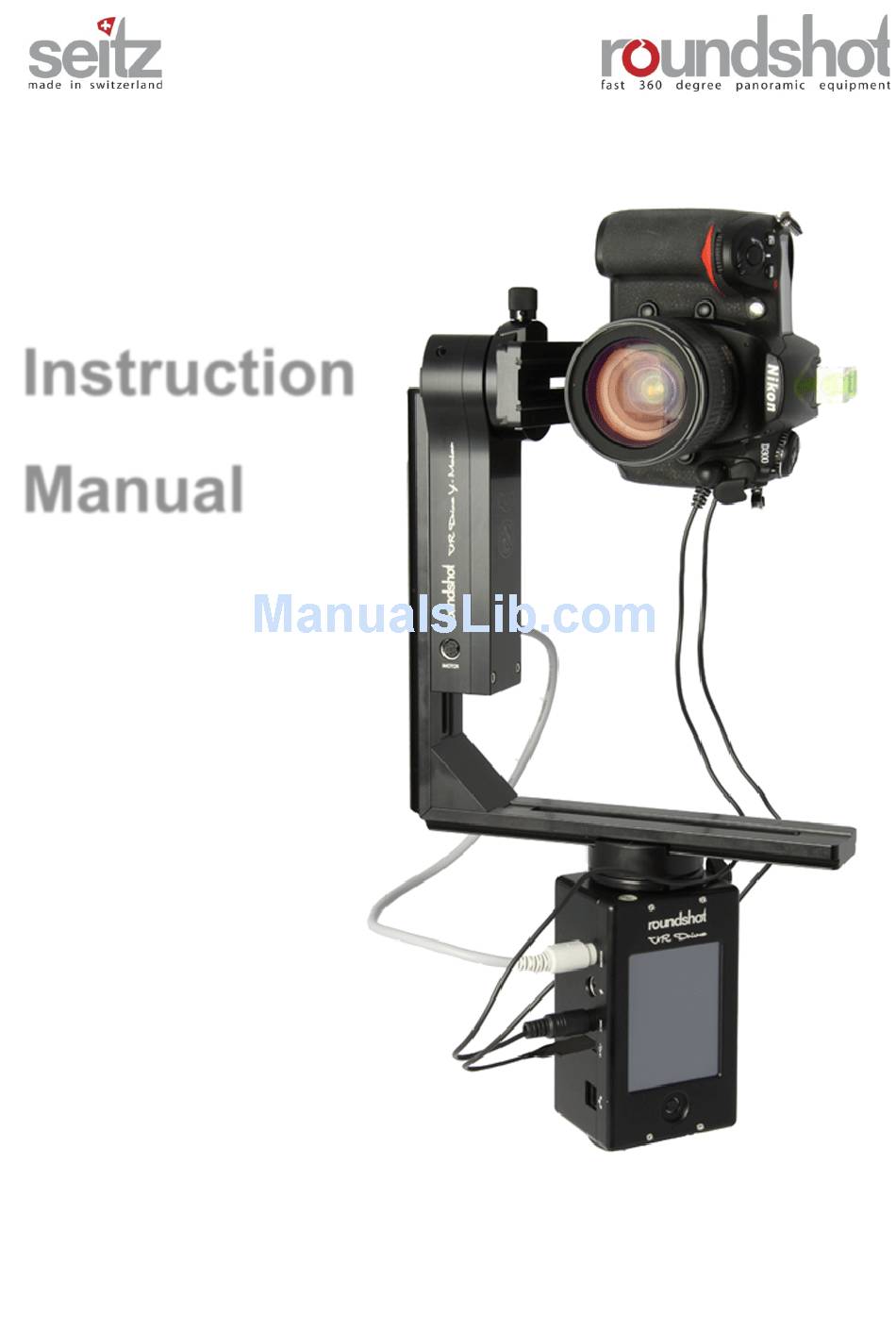

Page 1 Instruction Manual Roundshot VR Drive – generation 2 Software release: version 2.13 (December 2014) Instruction Manual Roundshot VR Drive - version 4.0 – January 2010 - © by Seitz Phototechnik AG / Switzerland www.roundshot.ch page 0...
Page 2 Instruction Manual Roundshot VR Drive - version 4.0 – January 2010 - © by Seitz Phototechnik AG / Switzerland www.roundshot.ch page 1...
Page 3: Table Of Contents
Editing in timelapse and video modes Editing in HDR mode USB Settings Auto exposure settings Settings 4.6.1 Settings/general 4.6.2 Settings/database 4.6.3 Settings/service menu Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 2...
Page 4 International Warranty Software update: “Club VR Drive” Upgrades: Adding new software modes Return of equipment / recycling 7. Technical Data Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 3...
Page 5: System Overview
For example, it is possible to purchase the y-motor with connection cable to transform the VR Drive from “semi” to “full”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 4...
Page 6 Ethernet VR bracket y-motor rear nodal rail socket for radio control nodal rail clamp unit (receiver)+ for light meter Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 5...
Page 7 • attaching/removing y-motor to VR bracket • locking/releasing VR Drive x-motor on tripod Allen key 3/16’’ for removing/attaching or fine-tuning y-motor clamp Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 6...
Page 8: Roundshot Vr Drive Software Options
Never miss an image, perfect movie. Two capture formats are positioning! possible: 360° rotation or linear movement along a rail. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 7...
Page 9 3D environment) and for tone-mapping, allowing more clarity and detail in bright and dark areas. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 8...
Page 10: Accessories
Long nodal rail – 220mm (for long + heavy lenses) Clamp for manual tilting Additional VR bracket Radio release unit Additional spirit level Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 9...
Page 11 Additional motor cable x-y (please check our website for list of compatible cameras) Extension cable (2m) for turntable Turntable Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 10...
Page 12 Additional universal charger (110-220V) USB cable to connect VR Drive with camera (for HDR mode) Wi-Fi router Light meter Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 11...
Page 13: First Steps With Your Vr Drive
VR bracket VR Drive with VR Drive y-motor (or motor nodal rail clamp) and nodal rail Universal charger (110-220V) Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 12...
Page 14: Roundshot Vr Drive "Full
Do not turn the VR bracket, when the quick adaptor is locked. Due to the high leverage the VR Drive motor and the gears can be damaged. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 13...
Page 15 Connect the other end of the into the VR Drive x-motor. cable into the VR Drive y-motor (front or rear). Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 14...
Page 16 Check that the rear of the camera is mounted straight at exactly 90° with the nodal rail: wrong correct Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 15...
Page 17 (A) or by fine- tuning the nodal rail clamp (B). Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 16...
Page 18 VR Drive x- motor (optional) optional Your VR Drive “full” is now ready. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 17...
Page 19: Roundshot Vr Drive "Semi
2.1.2 Roundshot VR Drive “semi” The VR Drive “semi” is set up in the same way as the VR Drive “full” except that there is just a nodal rail clamp instead of the y-motor and that only the camera release cable needs to be connected.
Page 20: Roundshot Vr Drive "Turntable
Hold the turntable with the allen key without turning the allen key. Attach the 3/8’’ thread. Attach the quick adaptor. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 19...
Page 21 It is possible to use several 2m extension cables. Your VR Drive “turntable” is now ready. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 20...
Page 22: Roundshot Vr Drive "Linear Rail
1 wheel with manual lock lever 1 VR Drive 1 VR Drive x-motor y-motor 2 tubes of equal length 1 rope Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 21...
Page 23 Attach the linear rail wheel on the Y-motor using the Allen key. Once firmly attached, use the screw driver to tighten the 3 security screws as shown on the right image . Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 22...
Page 24 Once the Y-Motor is correctly positioned, use the Allen key to firmly close the main screw in the unit centre. The linear rail slider unit is now ready. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 23...
Page 25 Use the long screw on the sensor side to attach the first tube and the small screw on the other side to attach the second tube. Then use the Allen key to firmly close the 2 screws Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 24...
Page 26 Please make sure the sensor is on the same side as the first sensor. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 25...
Page 27 Repeat this procedure until all extension tubes are assembled. Then close the structure with an edge sensor as explain in the previous page. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 26...
Page 28 Please make sure to use enough tripods or other support element to avoid the linear rail to bend under the camera and main unit weight. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 27...
Page 29: Roundshot Vr Drive "Dolly
Start with attaching 2 tubes with the double junction elements. You can just turn the tubes until they are firmly attached. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 28...
Page 30 Fix the left part of the tube using the left wheel as prepared before. The screws (long and short) can be attached firmly on this side of the dolly. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 29...
Page 31 These are the necessary parts to build up Option 1: Wheel arm VR Drive x-motor VR Drive y-motor with already attached wheel Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 30...
Page 32 Finally connect the VR Drive x-motor and the y-motor with the motor cable (in the same way as for the regular VR Drive) and place a camera with or without tripod on top of the dolly. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 31...
Page 33 Using an allen key, attach the dolly frame to the round distance element as shown below. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 32...
Page 34 • In video mode the cable is not required (no image release, only filming) • In timelapse mode it is required as the VR Drive releases the camera at defined positions Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 33...
Page 35: Special Hardware Assembly Options
(cylindrical), especially from centre of VR Drive for -90° image with large cameras and heavy lenses (spherical panorama) Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 34...
Page 36 It is then possible to attach the VR Drive y- motor directly on the lower VR bracket using by loosening the two screws below. the two screws. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 35...
Page 37 (clockwise) The nodal rail is now again in the correct (parallel) position. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 36...
Page 38: Light Meter
Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 37...
Page 39 VR Drive USB control. These cameras are marked in bold in the VR Drive camera compatibility section on our website. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 38...
Page 40: Radio Control Unit
VR Drive. connector pins as they are fragile. It does not have to be removed. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 39...
Page 41 This will synchronise the radio middle of the radio receiver. signal between sender and receiver. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 40...
Page 42 (no or yes). Please consult the settings menu for further information on these two functions. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 41...
Page 43: Wi-Fi Router For Remote Control
Drive using a short Ethernet cable. the slider to R position Finally attach the Wi-Fi On the back of the VR Drive Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 42...
Page 44 This VR Drive wifi screen transmission works only with software versions 2.12 or higher. For older software versions please upgrade the software first. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 43...
Page 45: Setting Up The Digital Camera
HDR set up the correct exposures bracketing or for automatic for HDR bracketing or for exposure. automatic exposure. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 44...
Page 46: Setting Up The Vr Drive Software
Click on an entry field to activate it. Confirm the entries with the “next” button. year hours minutes month 2012 [1970..2100] [1..12] [1..31] [0..23] [0..59] Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 45...
Page 47 If it is not the case the VR Drive will ask you to select one during the set-up process. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 46...
Page 48: Navigation
VR Drive or to freely position and release the VR Drive manually. The battery charge and the current time are displayed with their respective icons. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 47...
Page 49 (zenith) shot, it is possible to define the starting position as X= 0° and Y=90°. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 48...
Page 50 For more information about the “program edit” menu please refer to chapter 4. Return to the “home menu” by clicking “X” (cancel). Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 49...
Page 51 Duration : 2min 5s 360° 73° (Press to view settings) Position release VR Drive starting position and manual release Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 50...
Page 52: Starting/Stopping The Vr Drive
Y : 45° pressing “play” image/row : 2/10 Image/total : 12/20 Repeat Timer Remaining time : 0min 36s Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 51...
Page 53: Program Management
Before deleting the program the program warning asks for confirmation. Cancel with “X”. Do you really want to delete Confirm with “OK”. this program? Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 52...
Page 54 USB stick provided with the VR Drive. You can use this file as a program back-up and load it later in any VR Drive unit. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 53...
Page 55: Program Wizard
• “back” for undoing the choice and returning to the previous step • “X” for cancelling the program and exiting the Program Wizard Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 54...
Page 56: Wizard Workflow For Quality, Speed And Hdr Modes
Specific parameters for every mode are shown in the following colours: Common Common Parameters parameters Quality & HDR Quality Speed mode mode mode Specific parameters Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 55...
Page 57 Speed Release USB Details on Next page On/Off X & Y On/Off Next page Quality Speed Program Program Program Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 56...
Page 58 Pause before & after Pause Nb im / pos >1 Image before & after Image Quality Program Program Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 57...
Page 59: Wizard Workflow For Turntable Mode
Specific parameters for each mode are shown in the following colours: Common Timelapse Video parameters mode mode Specific parameters Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 58...
Page 60 Pause For every For every point point Duration Pause Point acquisition New point / End Timelapse Video Program Program Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 59...
Page 61: Program Editing
This is why it is not possible to switch to “Turntable”, “timelapse”, “Video”, or “HDR” mode from “Quality” mode. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 60...
Page 62 Confirm the choice of camera with “OK”. The rows (elevation, number of images) will now be automatically recalculated. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 61...
Page 63 [1..999] [1..999] Confirm with “OK” or cancel with “X”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 62...
Page 64 In angle mode “manual” the change of camera has no consequences. Here the rows must be edited manually. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 63...
Page 65 [1.0..180.0] Confirm with “OK” or cancel with “X”. The rows (elevation, number of images) will now be automatically recalculated. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 64...
Page 66 Continue anyway? per row for the program. Continue with “OK” or cancel with “X”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 65...
Page 67  [-90..90] [1..9999] Confirm with “OK” or cancel with “X”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 66...
Page 68 If none of the 10 sequence presets are ideal, use the “manual” angle mode. In this mode the rows (elevation in °, number of images) and their sequence can be customised. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 67...
Page 69 Varying the release time is required to optimise the operation of the VR Drive in “speed” mode. Confirm with “OK” or cancel with “X”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 68...
Page 70 The acceleration values range from 1% (slow speed adaptation) to acceleration 100% (fast speed adaptation). 1..100 Confirm with “OK” or cancel with “X”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 69...
Page 71 In the “HDR mode” the VR Drive controls the camera software directly, allowing much larger bracketing steps and a larger dynamic range. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 70...
Page 72 Continue anyway? (elevation/images) or number of images per row for the program. Continue with “OK” or cancel with “X”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 71...
Page 73: Editing In Timelapse And Video Modes
“Program Wizard”. ° [-999.9..999.9] [-90.0..90.0] Enter the “X” and “Y” coordinates of the starting point. Confirm with “OK”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 72...
Page 74 The X and Y coordinate can be either degrees or centimeters depending on the hardware configuration (360, linear or dolly) Confirm with “OK”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 73...
Page 75 Enter the number of seconds or degrees at which one image is to be released. Make sure that the camera has enough time to create the images. Confirm with “OK”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 74...
Page 76: Editing In Hdr Mode
In the “HDR mode” the VR Drive controls the camera software directly, allowing much larger bracketing steps and a larger dynamic range. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 75...
Page 77 Drive will release one image at average exposure speed, 2 underexposed and 2 overexposed images. Confirm with “OK”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 76...
Page 78 2 fastest, etc., then the slowest, 2 slowest etc. Confirm with “OK”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 77...
Page 79 ISO/ASA: 100 ISO/ASA: 100 exp.: 1/2000s aperture: f8 Confirm with “next”. ISO/ASA: 100 Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 78...
Page 80 Drive will compensate with f-stops in case an exposure limit is reached (exposure slower than, for example, 30s, or faster than 1/8000s). Confirm with “OK”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 79...
Page 81: Usb Settings
VR Drive, CF card and other factors have an influence on the speed of USB image release. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 80...
Page 82 VR Drive with “write identification” function active. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 81...
Page 83: Auto Exposure Settings
When the VR Drive light meter sensor is connected to the VR Drive, and the camera is compatible with VR Drive USB control, it is possible to use the VR Drive in a fully automatic way. This option is only available for “Quality” and “HDR” modes The VR Drive is able to measure the light before starting the image taking.
Page 84: Settings
“edit program” English Italiano menu or after restarting the VR Drive. Español Chinese Confirm with “OK”. Japanese Português Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 83...
Page 85 For extended operation times the auto turn off time can be 0..120 increased. Enter the time in minutes. Confirm with “OK” or cancel with “X”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 84...
Page 86 Click on “software” to display information on the software software This function consists of software • key version • version • IP Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 85...
Page 87 This IP must be in the same range as the computer connecting to the VR Drive. Confirm with “OK” or cancel with “X”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 86...
Page 88 For example, to tilt the camera 90° down (for transport), enter: • X: 0° (or any value) • Y: -90° Confirm with “OK” or cancel with “X”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 87...
Page 89 Drive is moved with the remote radio release or with the touch screen unit for point definition (video mode). Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 88...
Page 90 Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 89...
Page 91 The linear rail and dolly parameters might change according to the delivered material. Please make sure to enter the correct values and check with Seitz team if not sure. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 90...
Page 92 The auto exposure ranges are applied for all automatically computed values. If a parameter is set manually in the VR Drive these limits are not applied. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 91...
Page 93 VR Drive settings auto exposure simplified gui manual constant general database movement service menu (Press to view settings) Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 92...
Page 94: Settings/Database
/ page 1 Nikon D700 Canon Nikon 5D mk 2 D300 PhaseOne Nikon P65+ D700 D70s D200 Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 93...
Page 95 To delete a camera from the list, select the camera and click delete The camera will still be in the database, but removed from the “favourites” list. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 94...
Page 96 Enter the camera brand, camera type and X/Y (mm). Confirm with “OK”. Y (mm) X (mm) 23.9 0.0..400.0 0.0..400.0 Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 95...
Page 97 The table on the following pages summarises all program parameters created in the “Wizard” or loaded as “presets” for the different VR Drive modes. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 96...
Page 98 Average exposure speed on which the HDR table is -- -- -- seconds  built speed Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 97...
Page 99 -- -- -- seconds  release taking   -- acceleration Degree of speed adaptation (1% slow, 100% fast)   Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 98...
Page 100 The settings (general (time settings etc.) and database (camera, presets) will be created from factory settings. Do you really want to reset to factory settings? Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 99...
Page 101 Back up your programs in the Seitz format from time to time. This ensures that no program data is lost in the case that the VR Drive has to be reset to factory settings. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 100...
Page 102: Settings/Service Menu
4.6.3 Settings/service menu The service menu is only used for factory maintenance (hardware service menu calibration). password Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 101...
Page 103: Tips And Tricks
Be careful not to hand between camera and squeeze your hand in the y-motor. moving VR Drive vertical arm. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 102...
Page 104 0° position after confirming with “next”. For VR Drive “semi” lift the camera manually back up into the 0° position. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 103...
Page 105 There is a simple practical procedure to determine the nodal point: Open the quick adaptor release so that the VR bracket and camera can be moved sideways: Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 104...
Page 106 If the distance between the two lines remains constant, the camera is in the correct nodal point. Close the quick adaptor release. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 105...
Page 107 – larger – nodal bench rail for long lenses and attach the camera always at the very rear metal base. This avoids any potential error when using different cameras/lenses. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 106...
Page 108: Roundshot Image Bundler
USB cable check wait camera white balance memory check release control without check check manual write mode identification Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 107...
Page 109 This folder is used as “hot folder” and any incoming new image will be sorted and moved to the output folder. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 108...
Page 110 The “UngroupedImages” folder contains all images that could not be grouped (for example images taken manually with your camera without VR Drive). Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 109...
Page 111: Stitching Workflow
The xml file significantly enhances consistency and efficiency for the stitching of the final panorama. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 110...
Page 112 The xml file significantly enhances consistency and efficiency for the stitching of the final panorama. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 111...
Page 113 After saving this new tag import the images again and proceed with stitching. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 112...
Page 114: Mask The Nadir
It is possible to use the “single image” selection or the “entire stack” selection when working with HDR images Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 113...
Page 115 Once the selection is done, click on preview to see the final result. As you can see all moving elements were removed. Only fixed elements remains (tripod, x-motor) Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 114...
Page 116 Open this image and edit it in Photoshop (or similar) then load the patch by clicking on insert. The image is now corrected and can be exported again into a tiff file. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 115...
Page 117: Conversion To Web Formats
This conversion can be done very simply using for example Pano2VR. Load the panorama and select the conversion type. Render the new image and add it to your website. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 116...
Page 118: Speed Vs. Quality Mode
• Reduce the rotation speed Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 117...
Page 119: Gigapixel Photography
• When the size of the camera + lens exceeds the size of the L-bracket of VR Drive, it is very important to switch on the VR Drive before attaching the camera and never create a program capturing images close to the nadir or the zenith.
Page 120 For cameras that are not compatible with the USB connection on the VR Drive, please verify these settings manually before starting a gigapixel program. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 119...
Page 121: Hdr Photography
Click on the red HDR step to edit it or change the number of pictures aperture: f8 ISO/ASA: 100 or the aperture steps. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 120...
Page 122 This means perfect layers alignment • Combine the already stitched layers into a 32bit HDR panorama avoiding ghosting effects Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 121...
Page 123: Turntable And Object Movie Generation
Photoshop to gain speed and consistency. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 122...
Page 124 By default the image sequence should be correct. • Export the object movie in flash, html5 or QuickTime format. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 123...
Page 125: Using Long Exposure Times
Drive. It is therefore not possible to use this option when releasing the camera with USB cable only. It is then necessary to use the release cable Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 124...
Page 126: Using The Vr Drive Light Meter
USB connection • Connect the light meter sensor on the VR Drive antenna socket. And fix the 2 corresponding screws Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 125...
Page 127 VR Drive according to light. The wizard will ask to define the aperture in the next step. • All: The VR Drive will automatically select all parameters according to light Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 126...
Page 128 The VR Drive will never select values outside the defined range. A warning will be displayed if the light condition leads to out of range combinations. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 127...
Page 129: Video Vs. Timelapse Mode
The rotation according to the nodal point is not necessary as no stitching is required on the final images. The camera is positioned freely to deliver the required video or timelapse sweep. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 128...
Page 130 • Position: images will be released according to a distance or angle interval It will then be necessary to define the pause before and after every image Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 129...
Page 131 • Pause: time (in seconds) of pause on the current point before starting the next sequence step Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 130...
Page 132 • Diameter dolly wheels: to change the size of the wheels used on your dolly. Contact Seitz to get the correct size for your hardware configuration Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 131...
Page 133: Working With Presets
. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 132...
Page 134: Frequently Asked Questions
Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 133...
Page 135 USB stick. Turn the VR Drive on while keeping the on/off button pressed several seconds until the green firmware update progress bar is displayed. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 134...
Page 136 All software modes that are already purchased are activated permanently, while the ones in demo mode have a limited duration (typically 30 days). Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 135...
Page 137: Maintenance & Warranty
The Li-Ion batteries do not have to be drained – they have no memory effect. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 136...
Page 138: Touch Screen Calibration
“home” menu. Check the touch precision (cross). If OK, confirm with “OK”. If not, repeat the test by clicking “repeat”. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 137...
Page 139: International Warranty
We will activate your membership and confirm your “Club” registration by email. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 138...
Page 140: Software Update: "Club Vr Drive
The “Club VR Drive” contains your registered product(s), the latest instruction manuals as well as the up-to-date VR Drive software for download. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 139...
Page 141 Start up the VR Drive by pressing the on/off button during several seconds until the green Firmware Update progress bar appears. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 140...
Page 142 Keep it pressed. Keep it pressed until the green Firmware update progress bar is displayed: Firmware update V. 02.009 Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 141...
Page 143 All previous programs and settings remain intact. (Press to view settings) It is now safe to remove the USB stick. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 142...
Page 144: Upgrades: Adding New Software Modes
(30 days, 60 days…) and allows non-restricted use of all software functions. Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 143...
Page 145: Return Of Equipment / Recycling
We wish you continued success and fun with your Roundshot VR Drive! Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 144...
Page 146: Technical Data
7. Technical Data Technical changes reserved Instruction Manual Roundshot VR Drive version 2.13 – December 2014 – © by Seitz Phototechnik AG / Switzerland www.roundshot.com page 145...
Page 148 Impressum Copyright 2014 by Seitz Phototechnik AG Hauptstr. 14 8512 Lustdorf / Switzerland ph: +41 52 369 68 00 email: info@roundshot.com www.roundshot.com Technical changes reserved December 2014...

Roundshot VR Drive Instruction Manual

1 System Overview

2 First Steps with Your VR Drive

3 Program Management

4 Program Editing

5 Tips and Tricks

6 Maintenance & Warranty

7 Technical Data

Quick Links

Need help?

Questions and answers

Related Manuals for Roundshot VR Drive

Summary of Contents for Roundshot VR Drive

Table of Contents
