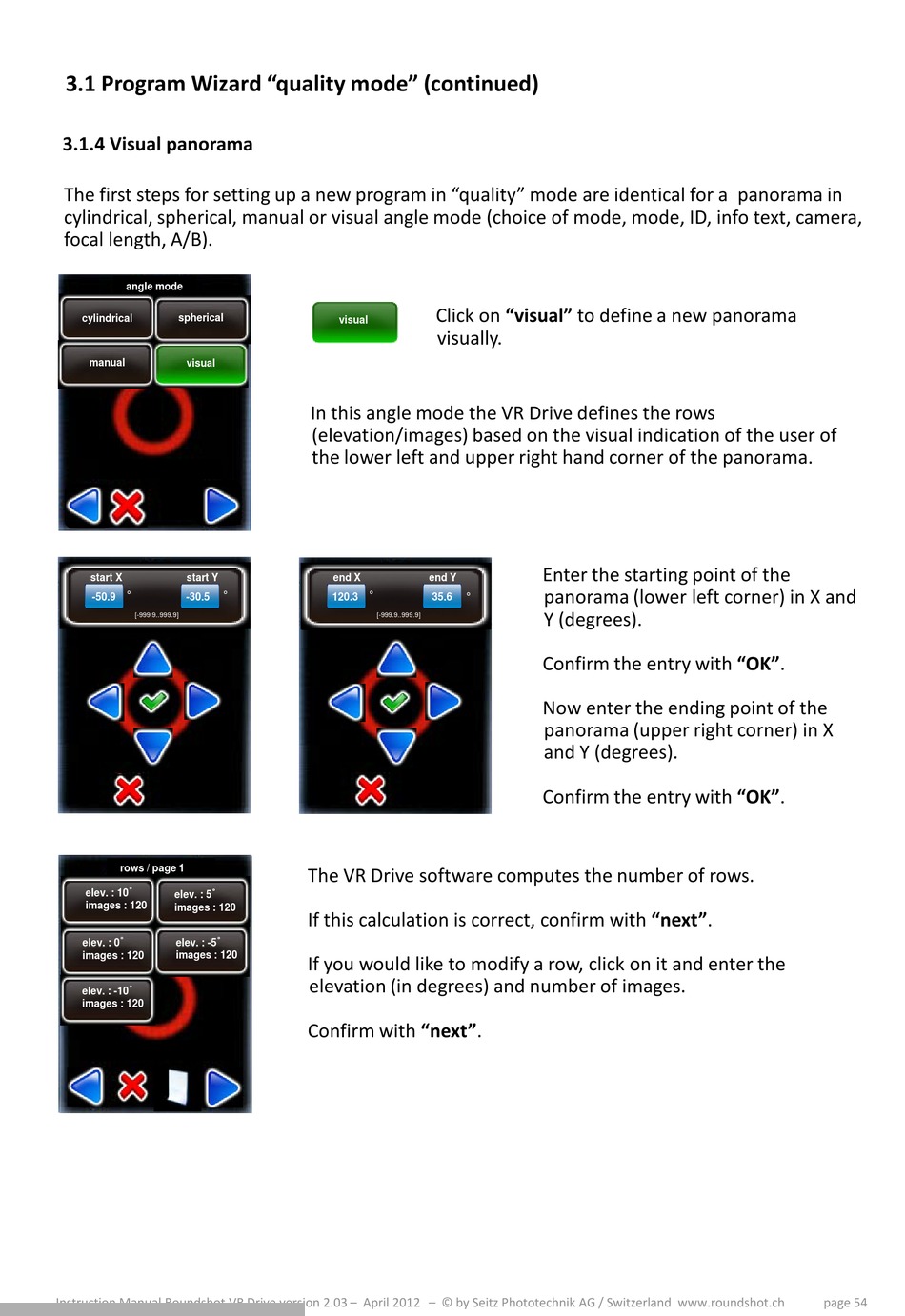

3.1 Program Wizard "quality mode" (continued)

3.1.4 Visual panorama

The first steps for setting up a new program in "quality" mode are identical for a panorama in
cylindrical, spherical, manual or visual angle mode (choice of mode, mode, ID, info text, camera,
focal length, A/B).
angle mode
spherical
cylindrical
manual visual
start X start Y
° °
-50.9 -30.5
edit edit
delete
[-999.9..999.9]
rows / page 1
elev. : 10
elev. : 5
images : 120
images : 120
elev. : 0 elev. : -5
images : 120
images : 120
elev. : -10
images : 120
Instruction Manual Roundshot VR Drive version 2.03 – April 2012 – © by Seitz Phototechnik AG / Switzerland www.roundshot.ch
Click on "visual" to define a new panorama
visual
visually.
In this angle mode the VR Drive defines the rows
(elevation/images) based on the visual indication of the user of
the lower left and upper right hand corner of the panorama.
end X end Y
°
°
120.3 35.6
edit edit edit
delete
delete
[-999.9..999.9]
The VR Drive software computes the number of rows.
If this calculation is correct, confirm with "next".
If you would like to modify a row, click on it and enter the
elevation (in degrees) and number of images.
Confirm with "next".
Enter the starting point of the
panorama (lower left corner) in X and
Y (degrees).
Confirm the entry with "OK".
Now enter the ending point of the
panorama (upper right corner) in X
and Y (degrees).
Confirm the entry with "OK".
