2.1.1 Roundshot VR Drive "full" (continued)

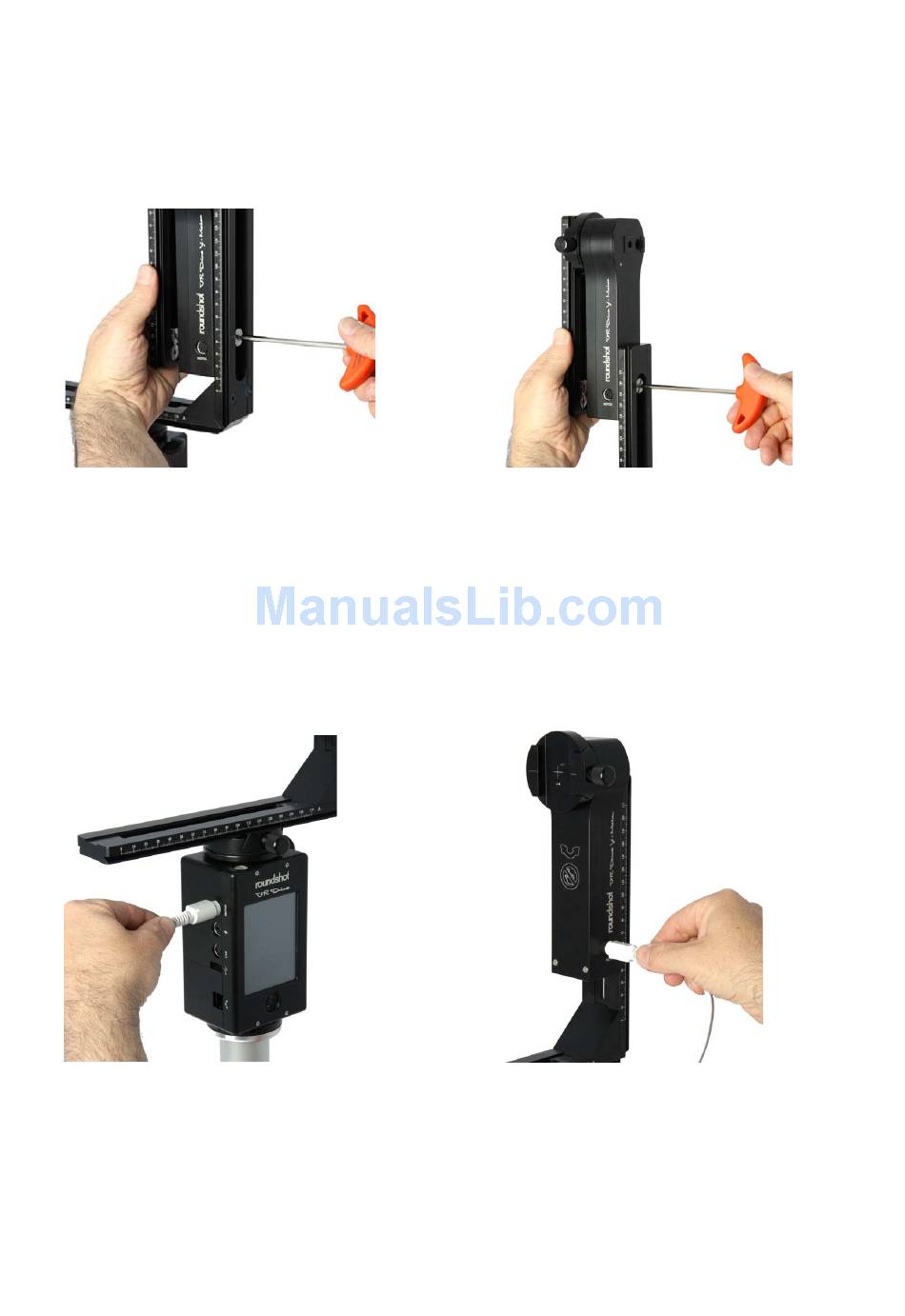

Adjust the height of the y-motor
using the allen key.
Make sure that there is enough
space for large cameras and lenses
when tilting downward -90°.
Now connect the y-motor cable
into the VR Drive x-motor.
Instruction Manual Roundshot VR Drive version 2.03 – April 2012 – © by Seitz Phototechnik AG / Switzerland www.roundshot.ch
It is possible to slide the y-motor
up and fix it at the very top.
However, for stability purposes it
is better to keep the y-motor as
low as possible.
Connect the other end of the
cable into the VR Drive y-motor
(front or rear).
