Although the controls for each
model may be on the front of
the machine or on the top of the
door. The main power switch is
always on the top of the door on
the far left side
Main power switch

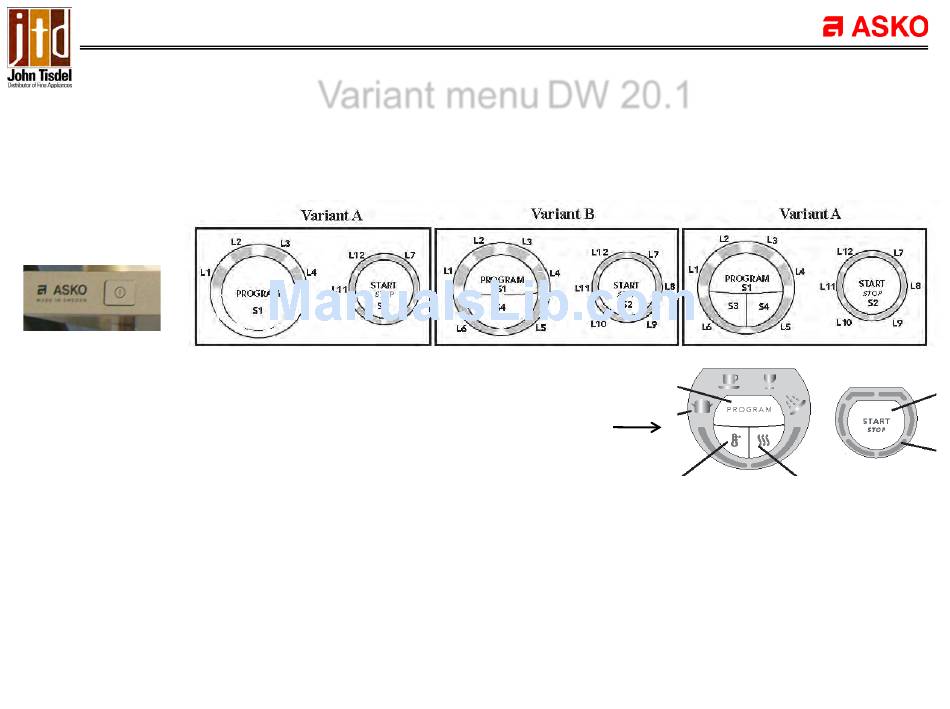

Variant 'A' with 2 program options shown as an
example. For this control panel configuration choose L1
flashing, variant 'A'.
If the control is replaced the machine will automatically be in the variant setting menu when the power is
turned on. Press the program button repeatedly, the display will alternate between pan symbol (L1)
flashing(variant A), and the shower symbol (L4) flashing(Variant B). Choose the variant, then confirm this
selection by pressing the start/stop button. The program will then revert automatically to the main menu.
Once the control board variant has been set, it is still possible to return to the variant menu and change it again. (useful if it has been programmed
incorrectly). To do so, turn off the main power switch. Wait at least 5 seconds, Press and hold the Program and Start buttons, turn on the main power
switch, wait a second then release the Program and Start buttons, then within 5 seconds press the Start button 3 times in quick succession. Use the
Program button to select a different variant. Confirm by pressing the Start button. Program returns to the main menu.

Variant menu DW 20.1

41
