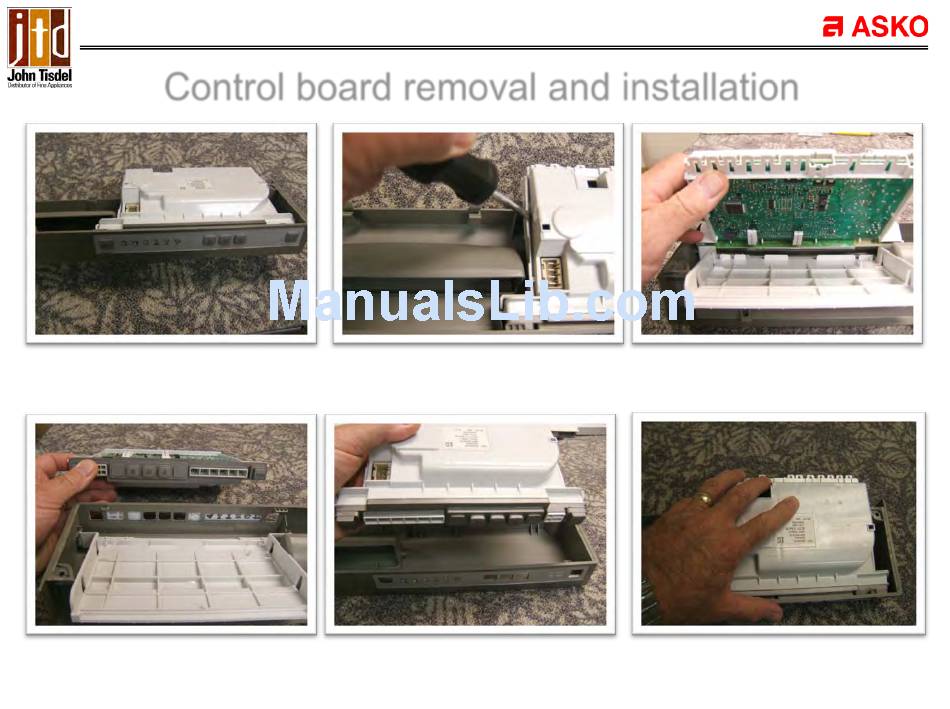

Control board removal and installation
1
After removing the wire connections and removing control panel from the unit, lay it down on a protected
flat surface. Not all control boards can be removed from the panel intact, for example the FI unit shown
above. In this case separate the casing by using a flat blade screwdriver and prying the tabs apart see (2)
4
The new control board will install into the control panel as a complete assembly. Insert the touch pad
end into the control panel first then snap the unit into place.
2
5
3
6
31
