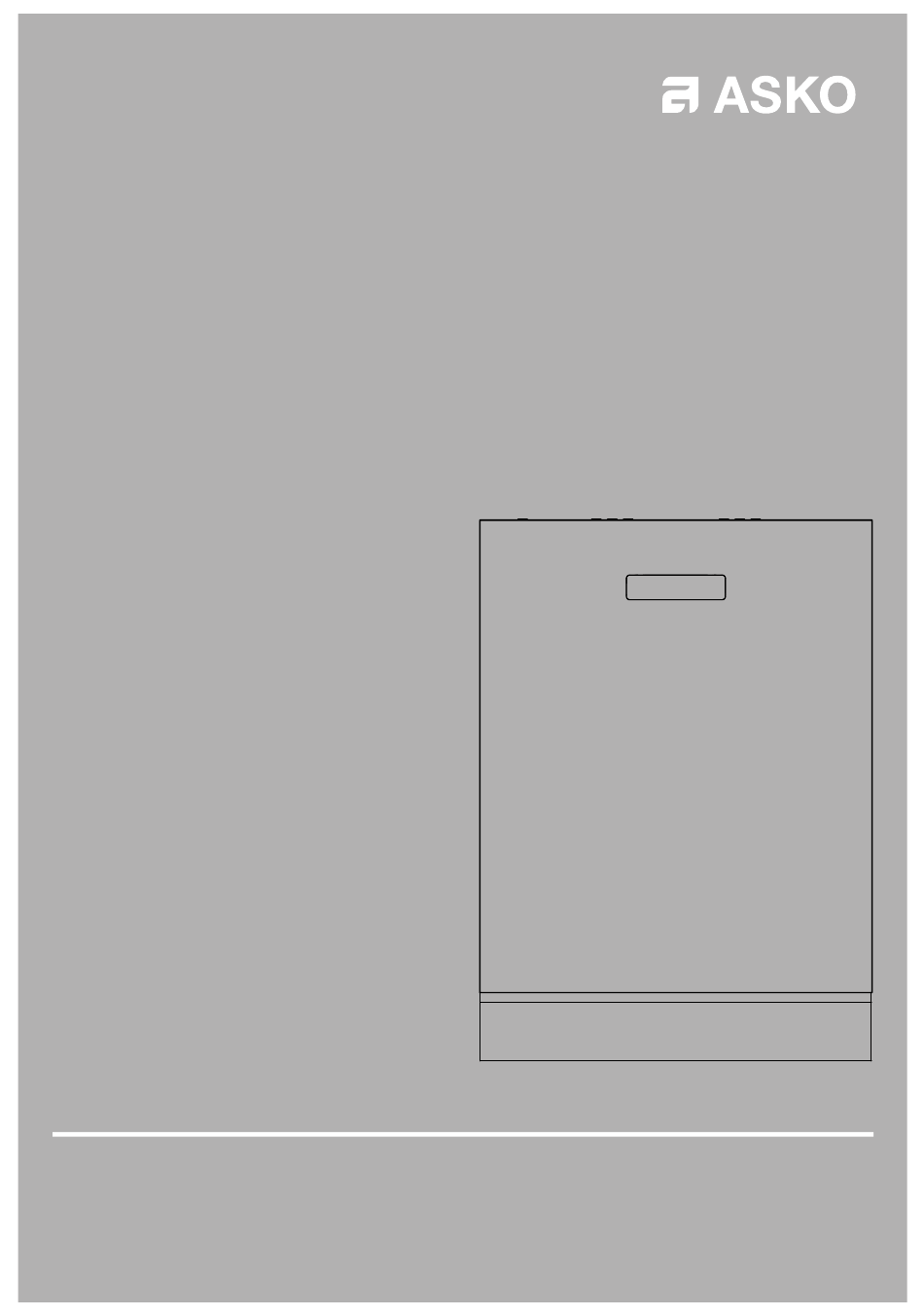

- Page 1 OPERATING INSTRUCTIONS Dishwasher DBI663 S...
-
Page 2: Table Of Contents
Open the door and press the main power switch. "Welcome to your new ASKO. This is a first time set up." is shown on the display the first time the dishwasher is switched on. It is important that you choose the right settings to ensure good dishwashing results. See page 4. -
Page 3: Important Safety Instructions
Important safety instructions SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE WARNING! WARNING! Dishwasher detergents and rinse aids are corrosive, so always keep them out of reach of children. When using your dishwasher, follow basic precautions, including the following: Activate child lock (Kid Safe™) Read all instructions before using the dishwasher. -
Page 4: Before Washing For The First Time
Open the door and press the main power switch. This is important to determine how much detergent and rinse aid to "Welcome to your new ASKO. This is a first time set up." is shown use. on the display. It is important that you choose the right settings to In general, more rinse aid and detergent are needed for hard water. -
Page 5: Loading The Dishwasher
Loading the dishwasher Greener dishwashing Fragile dishes Do not rinse under running water Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand high temperatures, others can be Simply scrape off large food particles before loading the dishwasher. damaged by dishwasher detergent. - Page 6 The baskets The dishwasher includes a top cutlery tray, an upper basket, and a lower basket with a cutlery basket. The basket appearance may differ depending on the configuration. Top cutlery tray The top cutlery tray accommodates cutlery, ladles, whisks, and other utensils.
- Page 7 Accessory Typical load Buy a wine glass shelf with space for six tall wine glasses. The wine Recommended for daily, regular, or typical use. glass shelf is designed to ensure optimal washing and drying results with tall wine glasses. The wine glass shelf is placed in the rear section Upper basket of the lower basket.
-
Page 8: Using The Dishwasher
Using the dishwasher Add detergent NOTE! Use only dishwasher detergent! Liquid hand-washing detergent must Press to open not be used as the foam that forms prevents the dishwasher from operating effectively. Dishwasher tablets Halve the tablet if it is difficult to close the dispenser lid. There is a risk that the detergent will not be released properly if the lid is tight and cannot open correctly. - Page 9 Open the door and press the main power switch. Starting the dishwasher START STOP 2:00 Speed mode Select the program Select a program mode Select any options dishes in the chapter Loading the dishwasher. Porcelain that has just The main power switch been used without dried leftovers can also be washed using this program.
- Page 10 1. Press the button once to activate Delayed Start. Press the button Open the door a little once the program has finished. several times – or hold it in – to set the desired number of hours. Allow the dishes to cool before unloading the dishwasher. 2.
-
Page 12: Settings
Settings Open the dishwasher's Settings menu To open the dishwasher's Settings menu, press the Navigation button until Settings menu is shown on the display and confirm your selection with the mode selector To exit the dishwasher's Settings menu, select Exit and confirm your selection with the mode selector Navigation buttons for choosing setting Mode selector to confirm current setting START... - Page 13 Settings Options Super rinse On/Off Super rinse adds two extra rinses. Activated in the following programs: Normal wash ECO wash Sanitation wash Plastic wash Lower half Upper half High temperature On/Off Activate the setting High temperature to improve the dishwashing results.
-
Page 14: Care And Maintenance Instructions
Care and maintenance instructions NOTE! Add rinse aid When the rinse aid needs topping up, the above symbol lights on the Dishwashing results may be display. affected if the filters are incorrectly fitted. Note that the dishwasher Press to open must not be used without the filters in place! NOTE! - Page 15 Unblocking the drain pump If the dishwasher still contains water after the program has finished, something may be blocking the drain pump. Such items are easily removed. 1. Turn off the machine using the main power switch and unplug it from the power outlet.
-
Page 16: Troubleshooting
Troubleshooting Type of fault on the display Action Overfilling water 1 Clear the drain pump. See the chapter Care and maintenance instructions. If the problem persists, call the Customer Care Center. Water outlet fault See “Water remains in the dishwasher above the filters” in the table “Problem” below. If the problem persists, call the Customer Care Center. - Page 17 Problem Possible causes Action The dishes are not clean. The spray arms do not rotate. Check that the dishes are not blocking the spray arms. Spray arm holes or bearings blocked. Clean the spray arms. See the chapter Care and maintenance instructions.
- Page 18 Problem Possible causes Action Water remains in the dishwasher above the The filters are blocked. Clean the coarse and fine filters. filters. The filters are not fitted correctly. Check that the filter handle is locked in the stop position. The handle should point straight out from the dishwasher.
-
Page 19: Technical Information
Technical information Technical data Height: 32 3/4 - 34 7/8" Width: 24" Depth: 22" Weight: 100 lb (45 kg) Water pressure: 4.2–140 psi Electrical connection: See serial number plate Rated power: See serial number plate If a height of 32 1/4'' is required for ADA compliance, remove the upper trim kit. Also lower the trim kit on the sides. Weight can vary due to different specifications. -
Page 20: Installation Instructions
Installation instructions [''] 47 1/8 24** 4 1/4 *Remove lock nuts for an installed height of 32 3/4''. If a height of 32 1/4'' is required for ADA compliance, remove the upper trim kit. Also lower the trim kit on the sides. **If European widths of 23 5/8'' (600 mm) is required, remove the trim kit. - Page 21 ADA compliance If a height of 32 1/4'' is required for ADA compliance, remove the upper trim kit. Also lower the trim kit on the sides. Placing the dishwasher The dishwasher is intended to be built in under a countertop. The built-in measurements are shown in the illustration.
- Page 22 Adjust the height and slide the Drain connection dishwasher into place This dishwasher is suitable for installing in a raised recess (to attain an ergonomic working height). This means that the dishwasher can be 1. Start by measuring the height from the floor to the bottom edge of placed so that the drain hose runs to a lower level than the bottom of the countertop.
- Page 23 Connection to cold water supply Screwing the dishwasher into place Connect the dishwasher to the cold water supply if the building is (Applicable only to built-in dishwashers.) heated using oil, electricity, or gas. Connection to hot water supply Connect the dishwasher to the hot water supply (max. 160 °F (70 °C)) if the building is heated using an energy-efficient means such as district heating, solar power, or geothermal power.
-
Page 24: Service
Product”), who purchased the ASKO Product from a distributor, dealer, manufacturer’s representative or other seller who has been authorized by ASKO, that this ASKO Product is free of defects in materials and/or workmanship, subject to the terms and conditions set forth herein. This Limited Warranty covers parts and labor, except as set forth in this Limited Warranty. - Page 25 Troubleshooting & ASKO Customer Care please contact ASKO Customer Care at 1-800-898-1879. After your purchase and prior to first use of the ASKO Product, register your ASKO If you think you need repair service, first see the Troubleshooting Product with ASKO by utilizing the address information below. Should section of the Use &...
-
Page 26: Notes
Notes... - Page 27 Notes...
-
Page 28: Quick Start Guide
Quick start guide Load the baskets (See page 5.) Do not rinse dishes under running water before loading them in the dishwasher. Simply scrape off large food particles before loading the dishwasher. Check that the spray arms can rotate freely Check also that the water supply valve is on.
