Outer Door Removal - Asko 3,000 Series Training Manual

1
Remove the screws down each
side

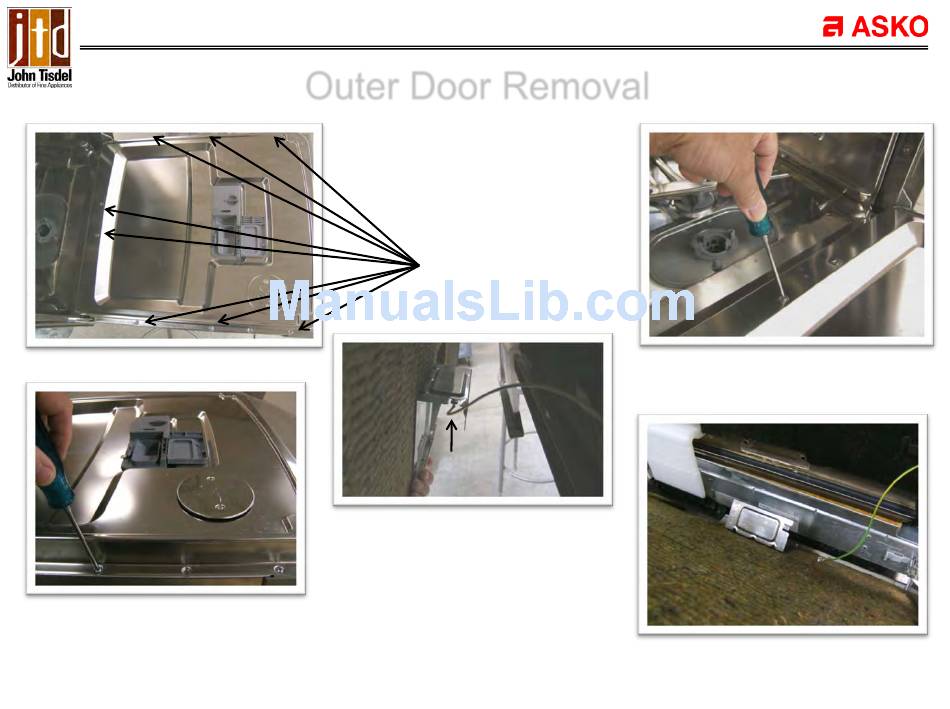

Outer Door Removal

Open the dishwasher
door, there are 2
screws at the bottom
of the inner door and 3
down each side. 5 or 6
if the unit is an FI
model
Bracket
3
Ground
wire
Lift the door up, and support the top
of the outer door and ease the
bottom of the door out towards you.
Reach underneath, disconnect the
ground wire from the bracket and lift
up on the bracket slightly to clear
the rim of the tank.
4
Remove the 2 bottom screws
first
Inside of outer door
Lift door clear
2
5
11
