Detergent/Rinse Aid Dispenser - Asko 3,000 Series Training Manual

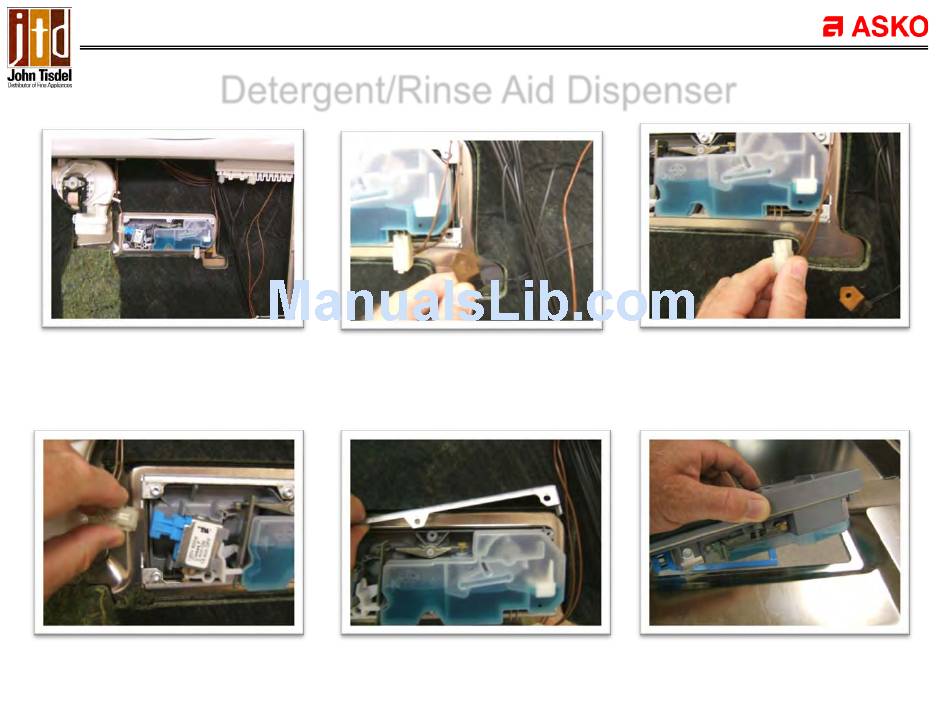

Detergent/Rinse Aid Dispenser

1
Solenoid
300 Ohms
Detergent & rinse aid
dispensers are combined into
one assembly & is fastened to
the inner door with 2 clamps
4
Disconnect Molex to solenoid
2
Thermistor
25K Ohms
Remove thermistor from
right side of lower clamp
(3,000 series only)
5
Remove the remaining screws
holding the upper and lower clamps.
3
Disconnect Molex to rinse aid
sensor (if applicable).
6
Open the door and lift
assembly from inner door
