Start Application; Clear (No Feature Assigned); Programmable Call Forwarding Key (V2) - Siemens OpenStage 15 Administration Manual

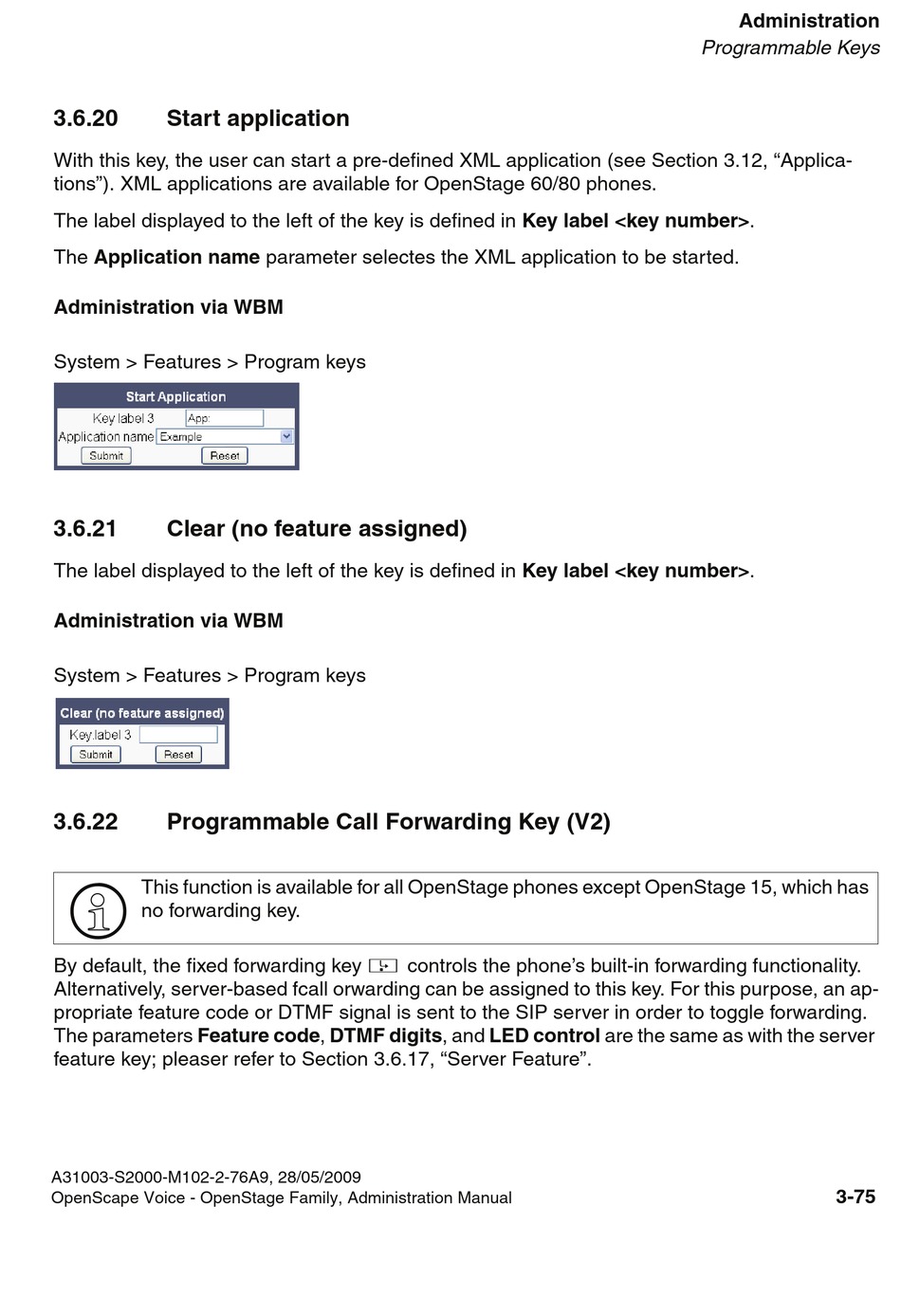

3.6.20

Start application

With this key, the user can start a pre-defined XML application (see Section 3.12, "Applica-
tions"). XML applications are available for OpenStage 60/80 phones.
The label displayed to the left of the key is defined in Key label <key number>.
The Application name parameter selectes the XML application to be started.
Administration via WBM
System > Features > Program keys
3.6.21

Clear (no feature assigned)

The label displayed to the left of the key is defined in Key label <key number>.
Administration via WBM
System > Features > Program keys
3.6.22

Programmable Call Forwarding Key (V2)

This function is available for all OpenStage phones except OpenStage 15, which has
>
no forwarding key.
By default, the fixed forwarding key
Alternatively, server-based fcall orwarding can be assigned to this key. For this purpose, an ap-
propriate feature code or DTMF signal is sent to the SIP server in order to toggle forwarding.
The parameters Feature code, DTMF digits, and LED control are the same as with the server
feature key; pleaser refer to Section 3.6.17, "Server Feature".
A31003-S2000-M102-2-76A9, 28/05/2009
OpenScape Voice - OpenStage Family, Administration Manual
r
controls the phone's built-in forwarding functionality.
administration.fm
Administration
Programmable Keys
3-75
