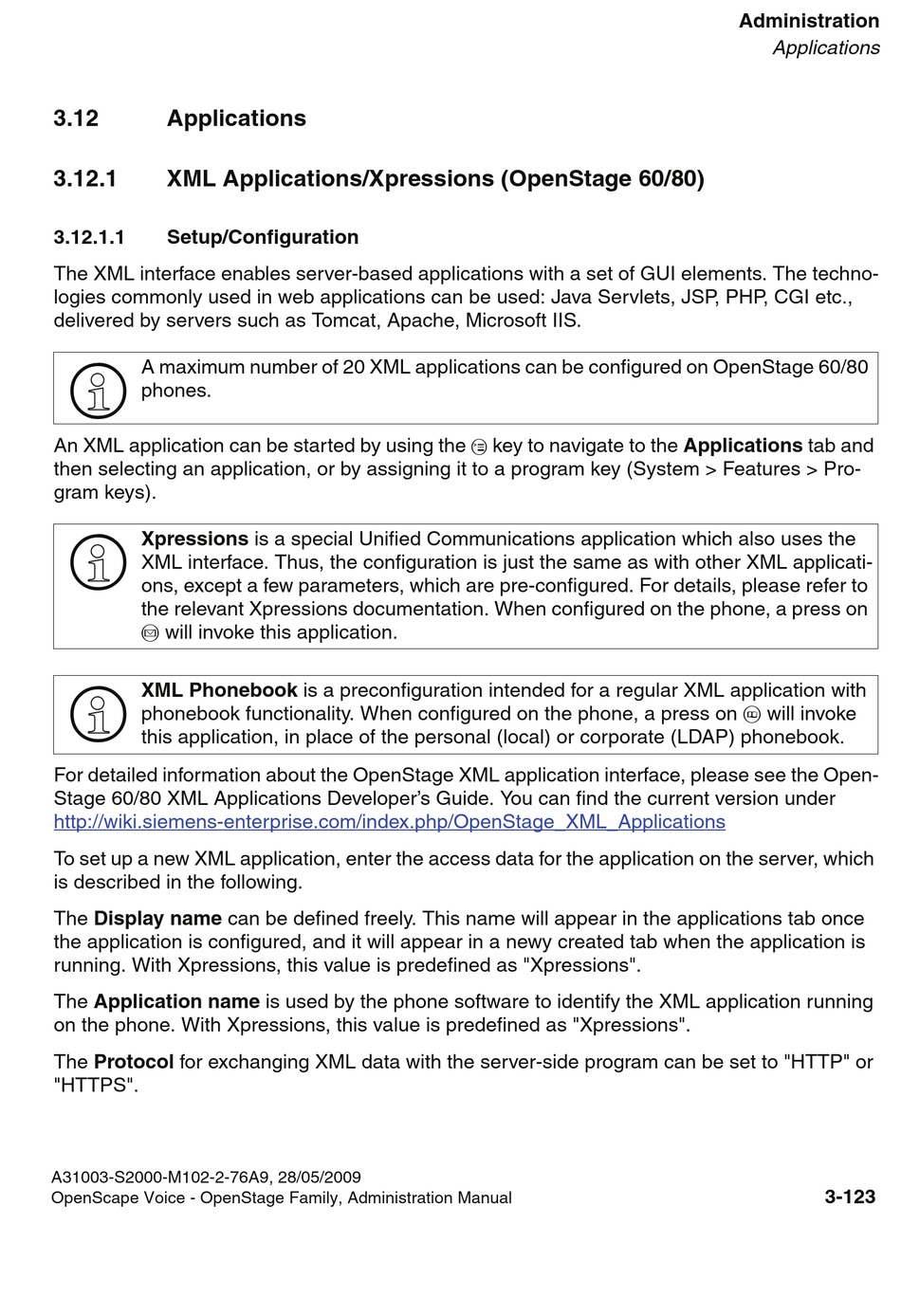

3.12

Applications

3.12.1

XML Applications/Xpressions (OpenStage 60/80)

3.12.1.1

Setup/Configuration

The XML interface enables server-based applications with a set of GUI elements. The techno-
logies commonly used in web applications can be used: Java Servlets, JSP, PHP, CGI etc.,
delivered by servers such as Tomcat, Apache, Microsoft IIS.
A maximum number of 20 XML applications can be configured on OpenStage 60/80
>
phones.
An XML application can be started by using the
then selecting an application, or by assigning it to a program key (System > Features > Pro-
gram keys).
Xpressions is a special Unified Communications application which also uses the
>
XML interface. Thus, the configuration is just the same as with other XML applicati-
ons, except a few parameters, which are pre-configured. For details, please refer to
the relevant Xpressions documentation. When configured on the phone, a press on
x
will invoke this application.
XML Phonebook is a preconfiguration intended for a regular XML application with
>
phonebook functionality. When configured on the phone, a press on
this application, in place of the personal (local) or corporate (LDAP) phonebook.
For detailed information about the OpenStage XML application interface, please see the Open-
Stage 60/80 XML Applications Developer's Guide. You can find the current version under
http://wiki.siemens-enterprise.com/index.php/OpenStage_XML_Applications
To set up a new XML application, enter the access data for the application on the server, which
is described in the following.
The Display name can be defined freely. This name will appear in the applications tab once
the application is configured, and it will appear in a newy created tab when the application is
running. With Xpressions, this value is predefined as "Xpressions".
The Application name is used by the phone software to identify the XML application running
on the phone. With Xpressions, this value is predefined as "Xpressions".
The Protocol for exchanging XML data with the server-side program can be set to "HTTP" or
"HTTPS".
A31003-S2000-M102-2-76A9, 28/05/2009
OpenScape Voice - OpenStage Family, Administration Manual
v
key to navigate to the Applications tab and
administration.fm
Administration
Applications
u
will invoke
3-123
