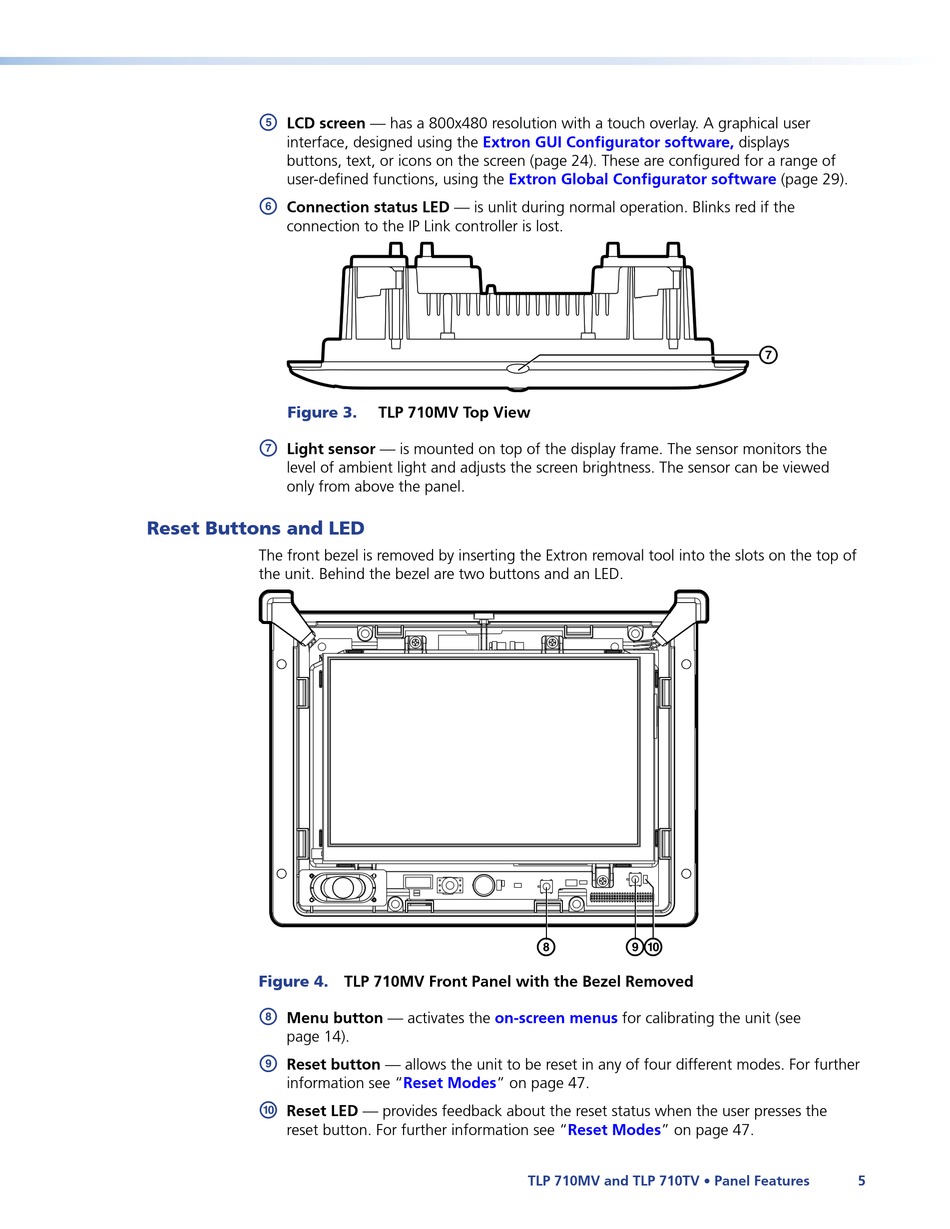

LCD screen — has a 800x480 resolution with a touch overlay. A graphical user
interface, designed using the
buttons, text, or icons on the screen (page 24). These are configured for a range of
user-defined functions, using the
f
Connection status LED — is unlit during normal operation. Blinks red if the
connection to the IP Link controller is lost.
Figure 3.
g
Light sensor — is mounted on top of the display frame. The sensor monitors the
level of ambient light and adjusts the screen brightness. The sensor can be viewed
only from above the panel.
Reset Buttons and LED
The front bezel is removed by inserting the Extron removal tool into the slots on the top of
the unit. Behind the bezel are two buttons and an LED.
Figure 4.
h
Menu button — activates the
page 14).
i
Reset button — allows the unit to be reset in any of four different modes. For further
information see
j
Reset LED — provides feedback about the reset status when the user presses the
reset button. For further information see
Extron GUI Configurator software,
Extron Global Configurator software
TLP 710MV Top View
TLP 710MV Front Panel with the Bezel Removed
on-screen menus
"Reset
Modes" on page 47.
h
ij
for calibrating the unit (see
"Reset
Modes" on page 47.
TLP 710MV and TLP 710TV • Panel Features
displays
(page 29).
g
5
