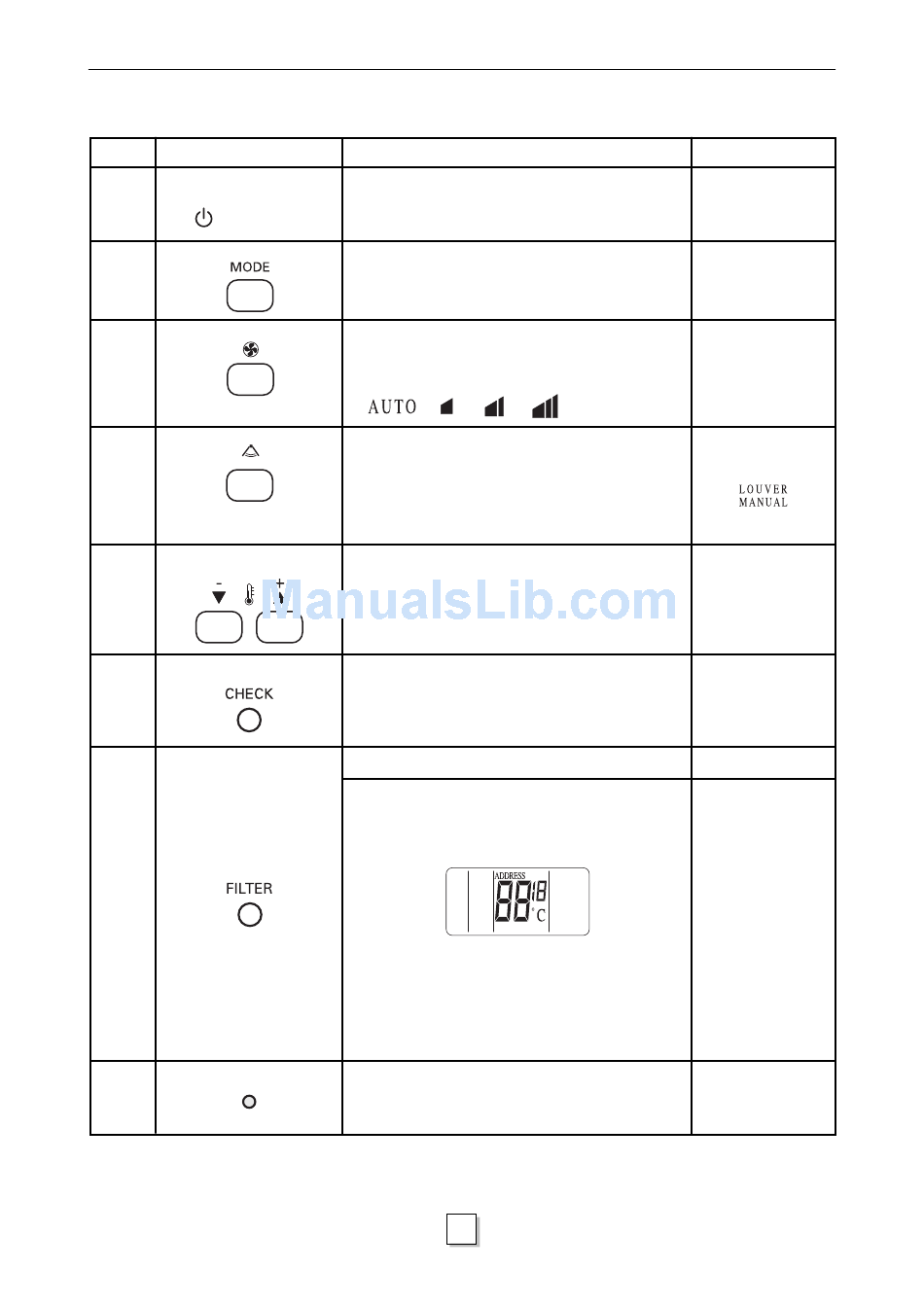

6.2.1 Outline of Remote Controller's Functions
NO. KEY SWITCH
[ON/OFF]
1
MODE
2
FAN SPEED
3
LOUVER
4
TEMP ADJUST
5
CHECK display
6
FILTER
7
RESET
8
Tel: 01823 665660
Heronhill - for all your Toshiba requirements
6. THE REMOTE CONTROLLERS
OUTLINE OF SPECIFICATION
1. When this button is pushed once, the air conditioner
is turned on, with this operation lamp coming on.
2. If pushed once more, it will be turned off, the
ON/OFF
operation lamp going off.
1. Each time this is pressed, the display
changes in the following sequence:
FAN – COOL – HEAT – AUTO
1. Each time this is pressed, the display
changes in the following sequence:
AUTO – LOW – MED – HIGH
1. When this is pressed, the louvers will start
oscillation and the display will illuminate.
2. When it is pressed again, the louvers will stop.
1. These buttons are used to set the required room
temperatures.
1. This display appears when the air conditioner is in
the CHECK mode.
2. Use the CHECK button for a malfunction check.
1. This display appears after 2500 hours of operation.
Unit LAN address can be set using the [FILTER]
button.
1. Press and hold the [FILTER] button for 5 seconds.
The LCD display should change, as shown below:
2. Use the TIMER ADJUST button to select required
address.
3. Press [FILTER] again to save address.
Note: This facility is enabled by
SW02 BIT7=OFF on the indoor PCB
(Factory Default).
1. By pressing the RESET Key, the remote
controller is reset by way of hardware.
(The setting/display are in initial values with the
check memory cleared.)
www.heronhill.co.uk
84
REMARKS
For models with
automatic louvers
only, otherwise:
will be displayed.
18-29 C
˚
Control range
CHECK and FILTER
buttons are for the
use of Service
Engineers.
Use a pointed object
to operate the
RESET Key.
