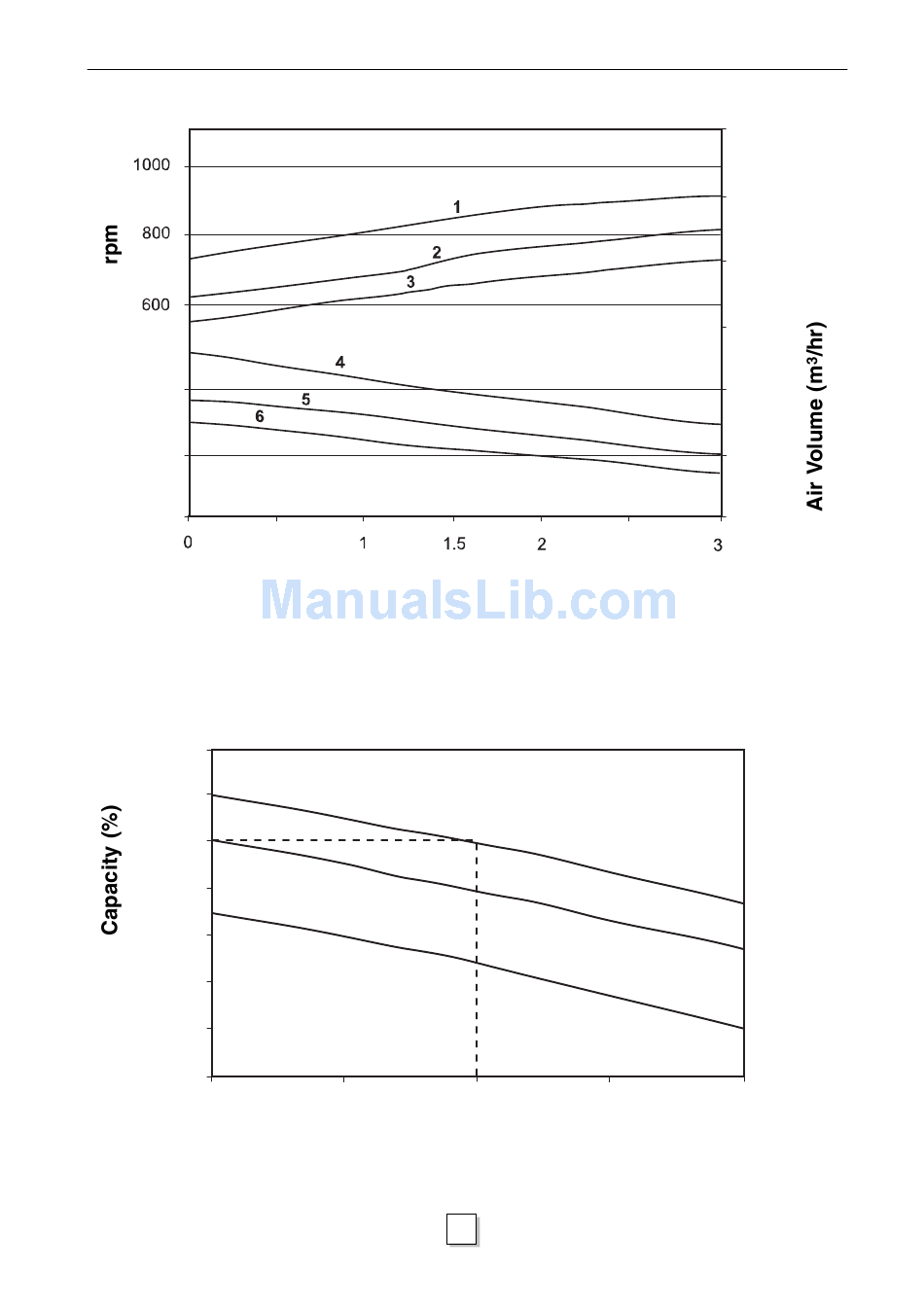

12.5 Air Flow Characteristics (RAV-104SBH-PE)
1 rpm, High Fan
2 rpm, Medium Fan
3 rpm, Low Fan
12.6 Cooling/Heating Capacity Ratio (RAV-104SBH-PE)
120
110
100
90
80
70
60
50
0
A High Fan
B Medium Fan
C Low Fan
