Toshiba RAV-104SBH-PE Service Manual page 37

Indoor Unit
2.11
RAV-364UH-PE
RAV-464UH-PE
Knockout for side ducts ø150 (both sides)
30
Fresh air inlet
30
130
Fresh air inlet duct size
32
ø100
130
Tel: 01823 665660
Heronhill - for all your Toshiba requirements

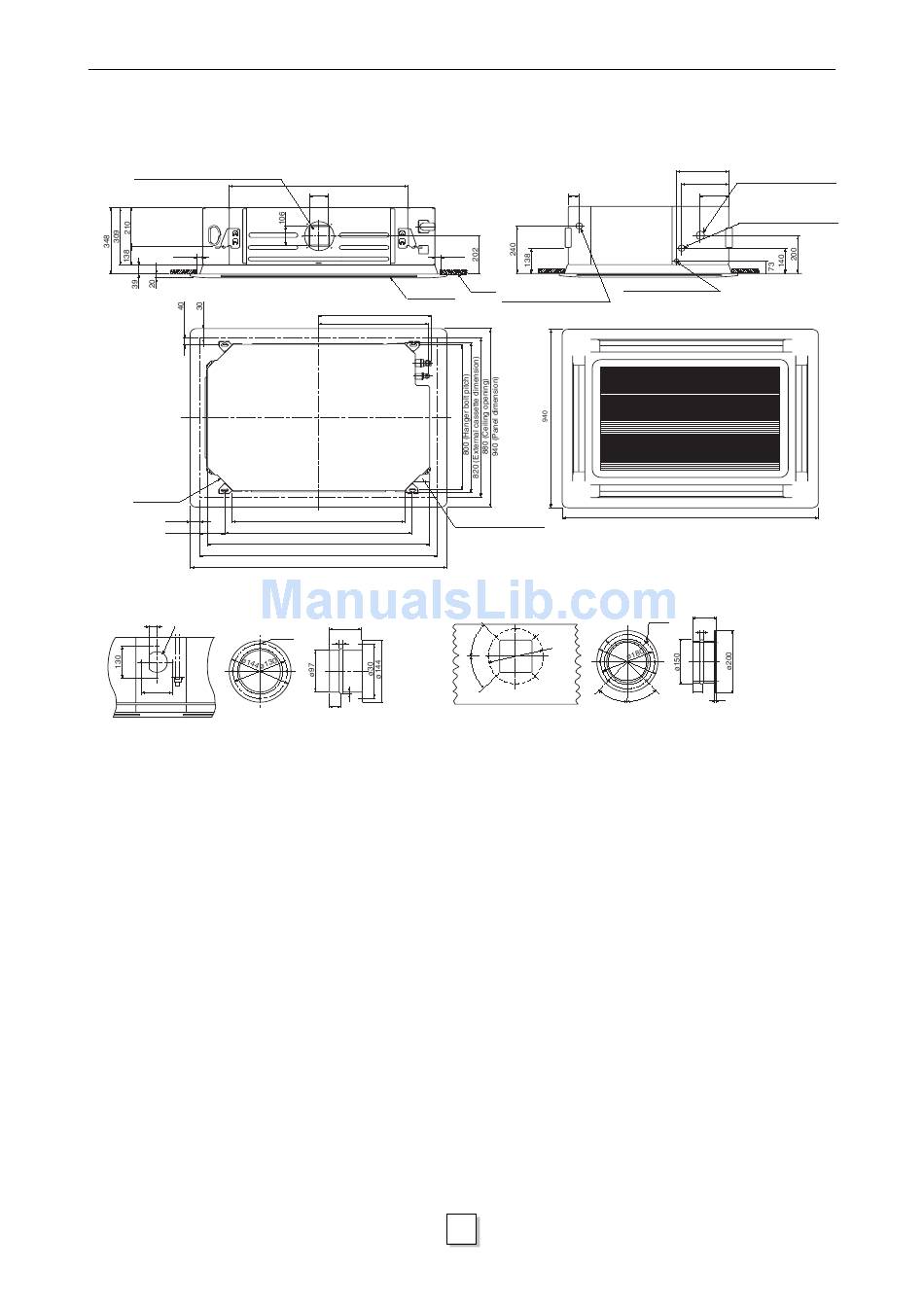

2. CONSTRUCTION VIEWS
941
106
Ceiling panel
610
605
940
1030 (Hanger bolt pitch)
1230 (External cassette dimension)
1290 (Ceiling opening)
1350 (Panel opening)
80
4 - ø6
10
30 2
www.heronhill.co.uk
80
30
Ceiling
Drain pipe connection
(1" BSP threaded connection)
Condensate pipe 1"
BSP
threaded connection
Side outlet duct size
45°
ø180
45°
45°
37
185
Refrigerant pipe connection
170
(Gas side ø19.0)
100
Refrigerant pipe connection
(Liquid side ø9.5)
Wiring connection
(Gland plate 3xø20 holes)
1350
80
6 - ø6
10
30 6
45°
