USER MAINTENANCE

7
The following procedure are maintenance procedures that can be performed by the user . When performing the following procedures,
the user must follow all safety precautions as described in the Safety section of this manual .

REPLACING THE CURING BULB

CAUTION: Do not touch the curing bulb . Keep the protective sleeve on the bulb until after the bulb has been
installed .
CAUTION: Exercise caution when installing the bulb . If the printer is rotated to its side or upside down, the
glass plane under the material cartridge support assembly may dislodge or become damaged . It is strongly
recommended that the packing foam is inserted into the material cartridge support and then the cartridge clamp
secured with the material cartridge clamp lever .
Remove print platforms from the build chamber and curing
1 .
chamber . Remove material cartridge from the printer .

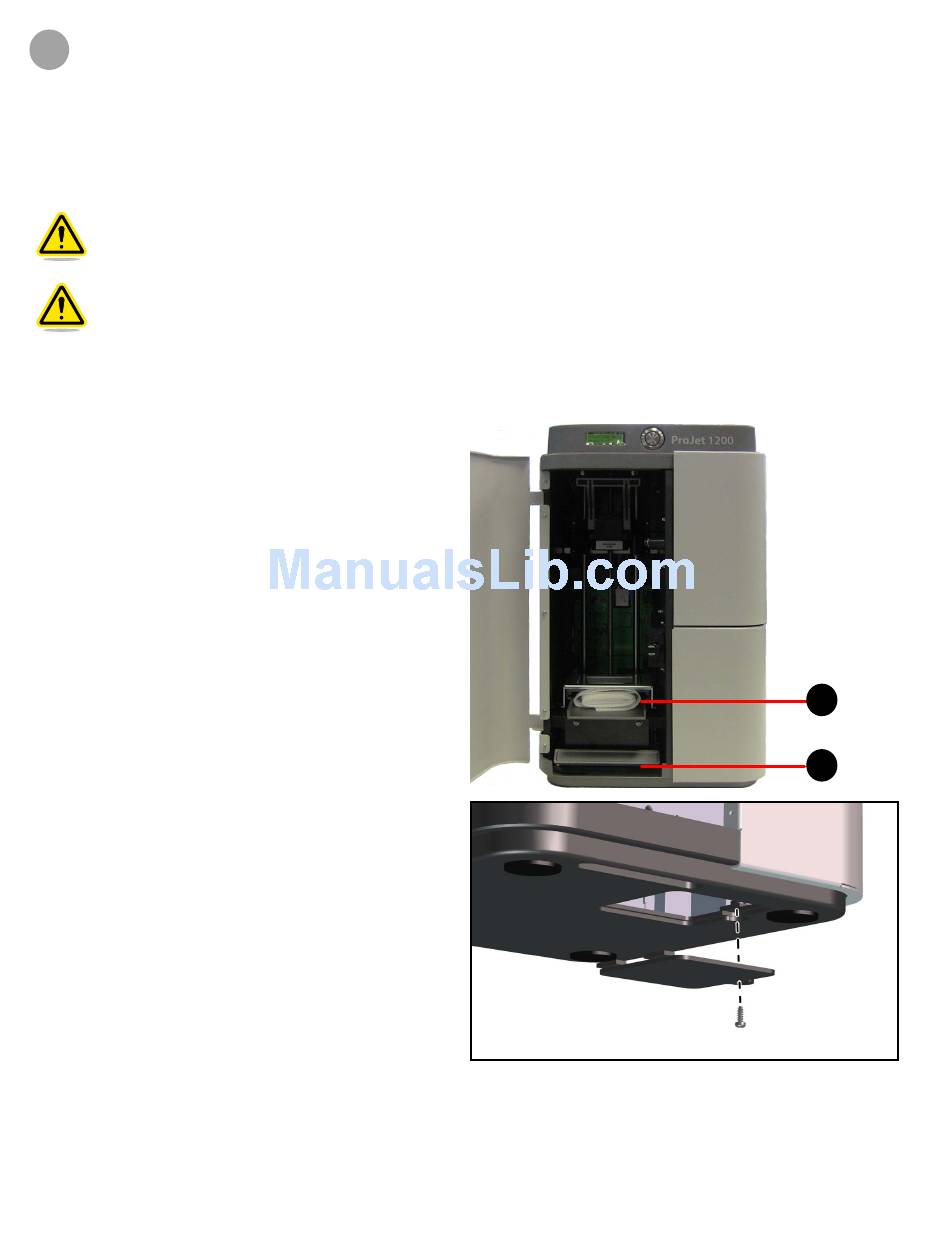

2 . Place the original packing material on the material cartridge
support and lower the clamp lever (B) to secure it .
Loosen and remove the screw securing the bulb access
3 .
panel to the bottom of the printer and remove the panel .
4 . Reach up into the bulb housing area and hold the bulb
between your fingers. Pull down on the bulb and carefully
rock the bulb left-right to dislodge the buld from the socket .
To replace the bulb, following the procedure,
5 .
Installing the Curing Bulb on page 14 .
