PRINTER SETUP

Installing the Curing Bulb

CAUTION: Do not touch the curing bulb . Keep the protective sleeve on the bulb until after the bulb has been
installed .
CAUTION: Exercise caution when installing the bulb . If the printer is rotated to its side or upside down, the
glass plane under the material cartridge support assembly may dislodge or become damaged . It is strongly
recommended that the packing foam is inserted into the material cartridge support and then the cartridge clamp
secured with the material cartridge clamp lever .

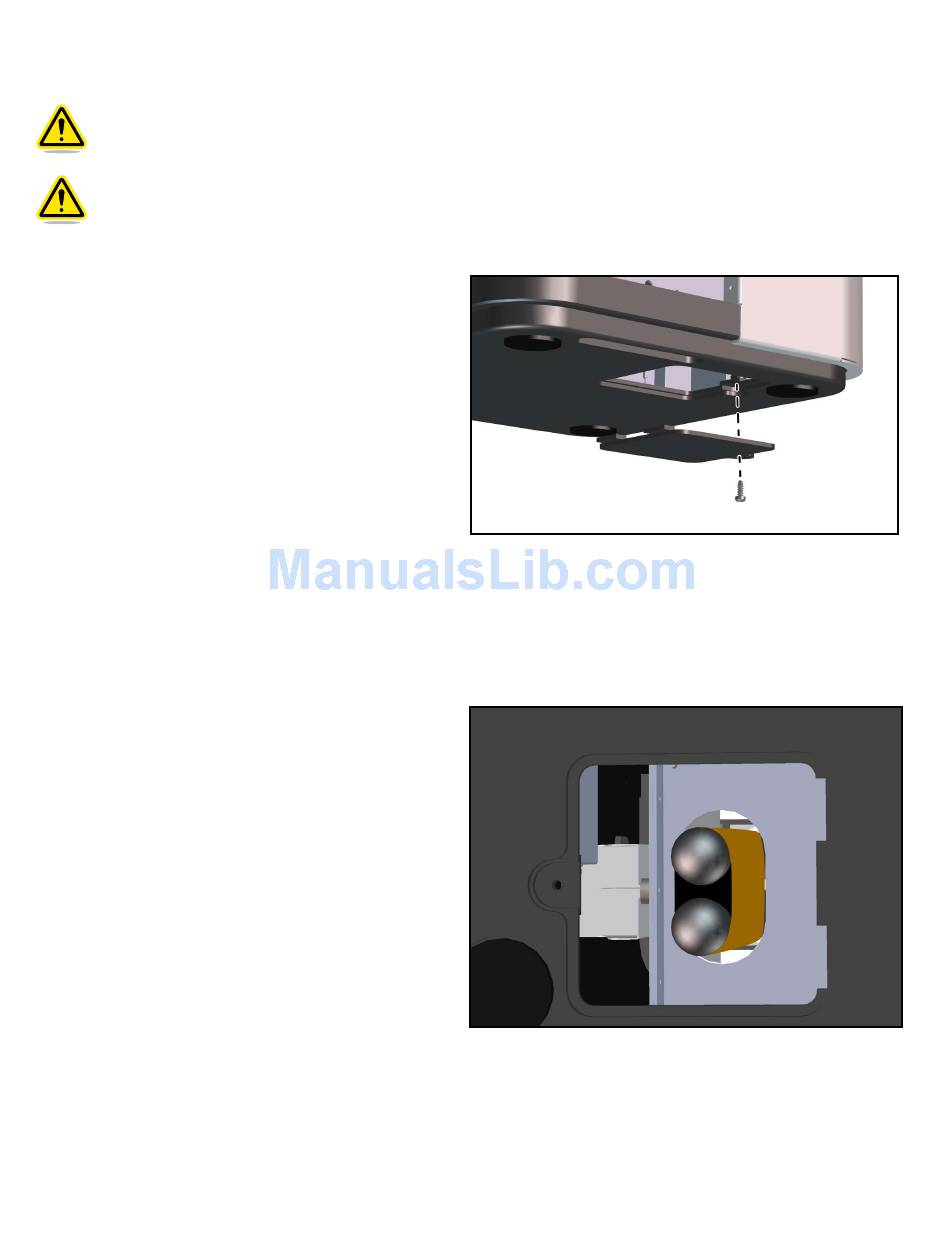

1 . Loosen and remove the screw securing the bulb access
panel to the bottom of the printer and remove the panel .
2 . Remove the bulb (included) from its box but do not
remove the cardboard protective sleeve from the
bulb .
3 . Insert the bulb end with the metal prongs through the
channel in the bottom of the printer .
