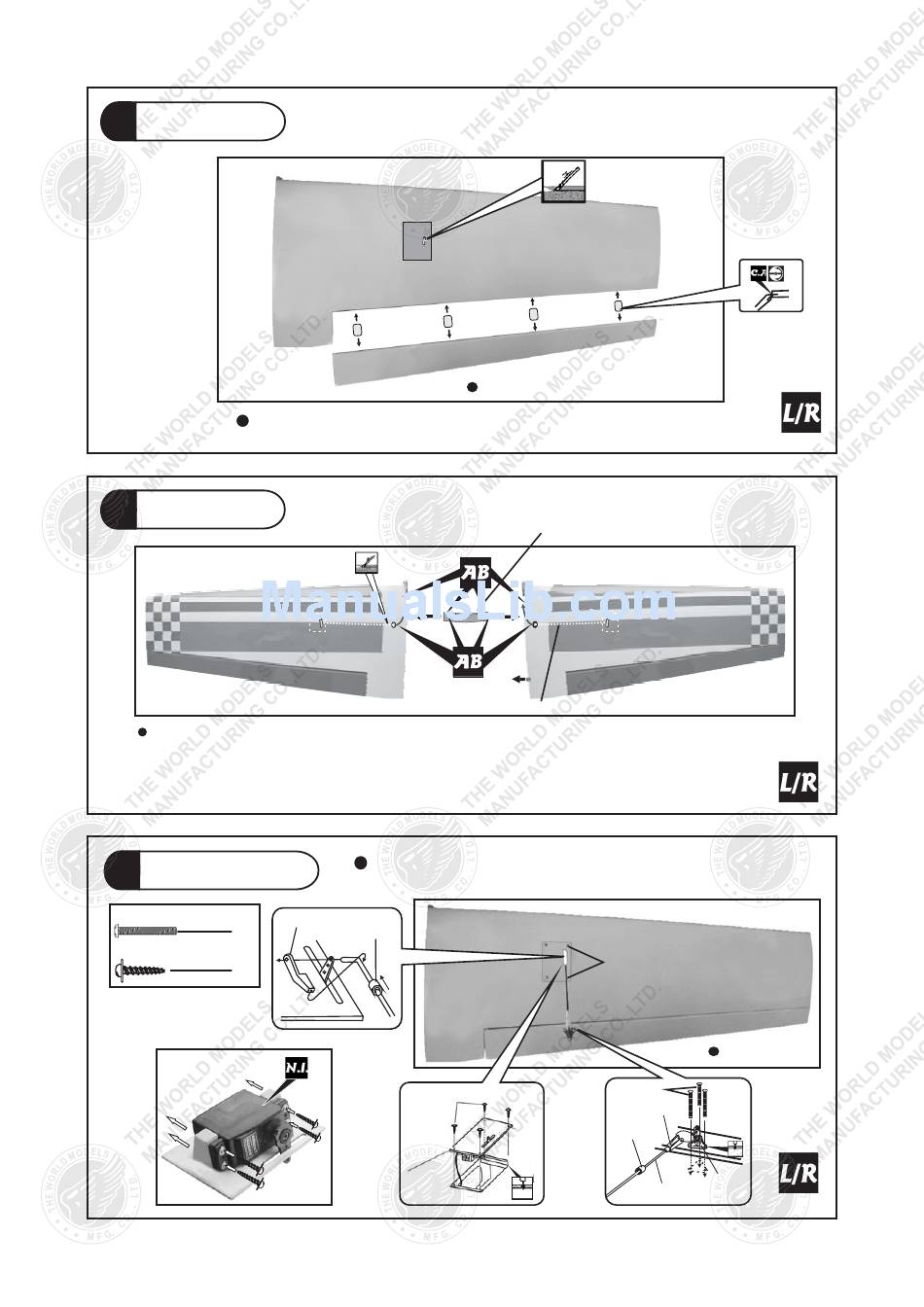

1
Main Wing
A p p l y i n s t a n t t y p e C A g l u e t o b o t h s i d e s o f e a c h h i n g e .
2
Main Wing
Please dry fit wing joiner into left and right wing to make sure they fit with the proper
dihedral angle, mark the wing joiner if necessary. Apply epoxy glue to both sides of
all surfaces in contact. Use a stick to apply the glue to inner side of wing joiner
sleeve, and apply the glue to wing joiner before putting them together. Wing joiner
not glued properly will lead to wing failure and plane crash.
3
Aileron Servo
Screw
PM2 x 25mm
Straper
6
Screw
PWA2 x 8mm
8
Bottom View
Wing Joiner 6x30x203mm
Aileron Servo Lead
Ø1mm pilot holes for The World Models tri-horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
Fuel Tube
Ø
6x5mm
PWA 2 x 8mm
1 m m
P.3
PWA2 x 8mm
Bottom View
PM2x25mm
Clevis
Fuel Tube
Ø
6x5mm
2mm
-
Tri horn
M3x14mm
Pushrod
Ø
1.8x105mm
